Perkins New Replacement Engine

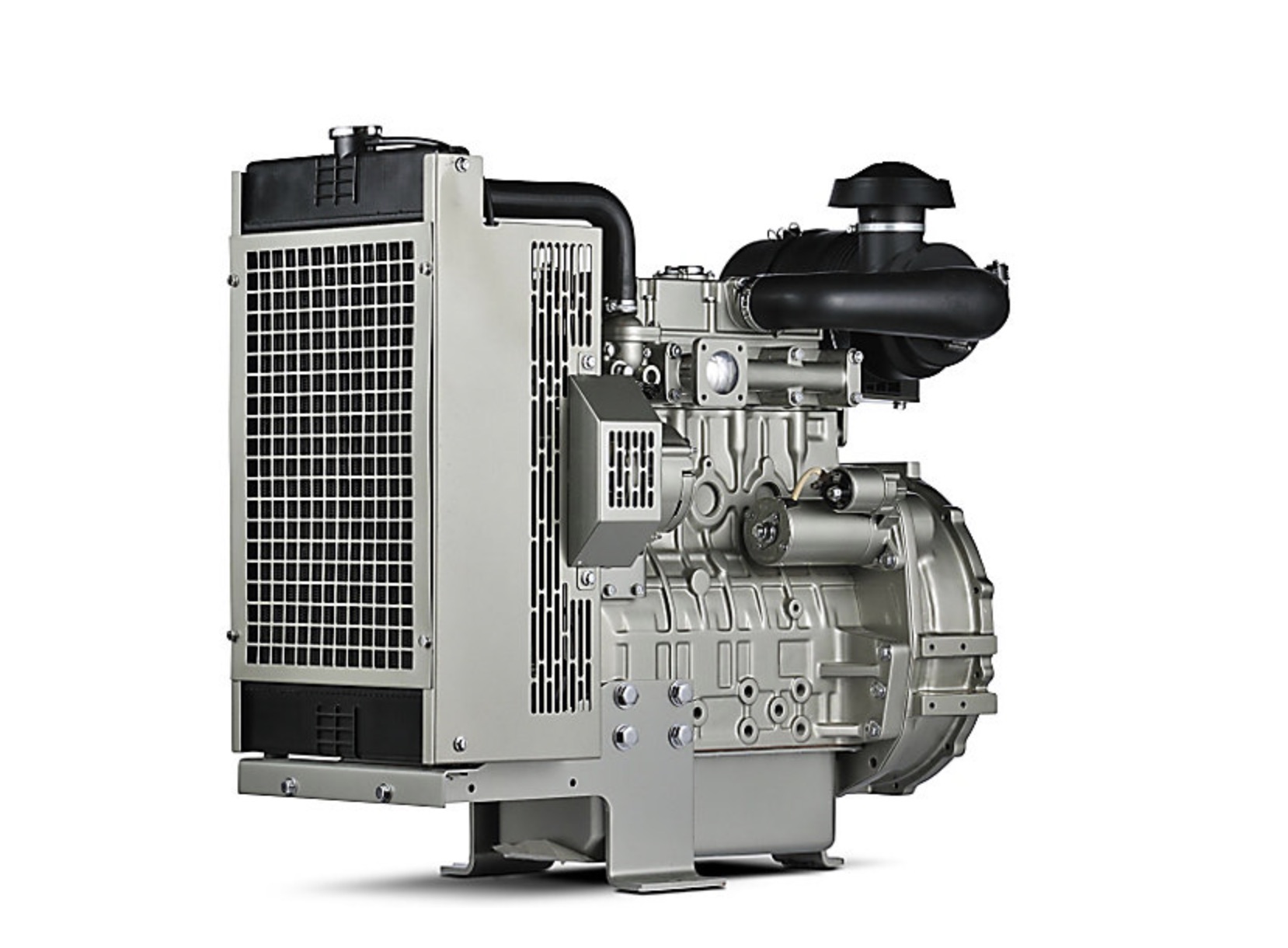

Perkins 404D-22TAG Diesel Genset Engine
FD-404D-22TAG-PNR
Perkins 400 Series
This Perkins 404D-22TAG Diesel Genset Engine is a 4 Cylinder, Perkins 400 Series, Turbocharged Aftercooled, 2.2 L Displacement Diesel Engine with Indirect Injection that is built to fit Diesel Generator Sets. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today.
Engine Specifications:
- Diesel Genset Engine
- Cylinders: 4
- Rated Speed: 1800 RPM
- Emissions: UN ECE R96 Stage IIIA
- Bore: 84 mm
- Stroke: 100 mm
- Displacement: 2.2 L
- Compression Ratio: 23.3:1
- Aspiration: Turbocharged Aftercooled
- Combustion System: Indirect Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 1050 mm
- Width: 710 mm
- Height: 998 mm
- Dry Weight: 306 kg
- Gross Mechanical Output: 34.4-36.3 kWm
- Typical Electrical Output: 37-40 kVA (29-32 kWe)
- Alternator Efficiency: 90%
- Switchable: No
