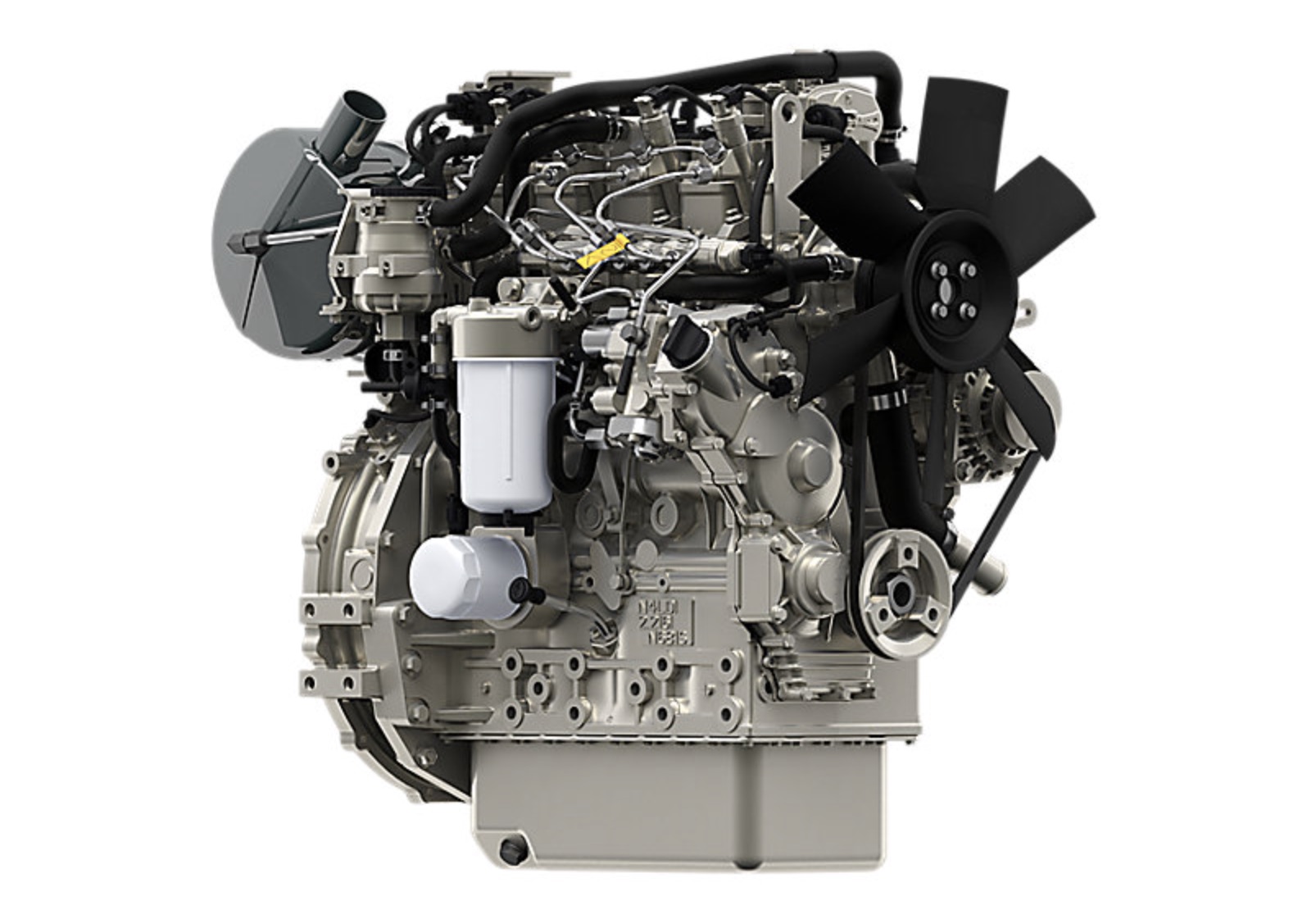

Perkins New Replacement Engine
404J-E22T
Perkins 400 Series
Can Replace (Please call with arrangement number):
Caterpillar 3024/C2.2 Turbo
Engine Specifications:
- Industrial Diesel Engine
- Cylinders: 4
- Maximum Power: 45 kW
- Maximum Torque: 222 Nm @ 1600 RPM
- Rated Speed: 2800 RPM
- Minimum Power: 36.4 kW
- Emissions: EU Stage V, U.S EPA Tier 4 Final
- Cycle: 4 Stroke
- Bore: 84 mm
- Stroke: 100 mm
- Displacement: 2.2 L
- Compression Ratio: 17.0:1
- Aspiration: Turbocharged
- Combustion System: Direct Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 807 mm
- Width: 529 mm
- Height: 766 mm
- Dry Weight: 242 kg
