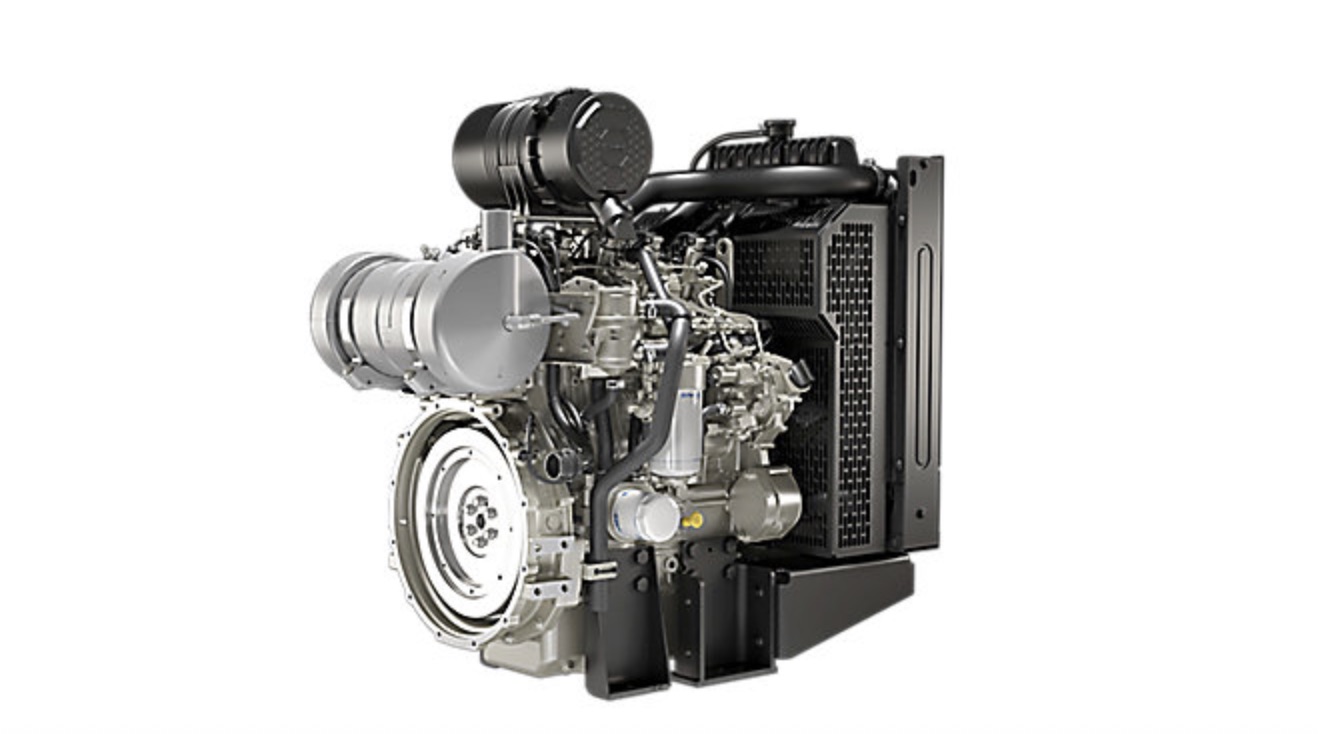

Perkins 404J-22TAG Diesel Genset Engine
FD-404J-22TAG-PNR
Perkins 400 Series
The Perkins 404J-22TA is a Diesel Engine purpose-built to drive electric generators, delivering steady, reliable RPM performance to keep standby and prime power systems running smoothly. It is a 4 Cylinder Perkins 400 Series Engine with Turbocharged Aftercooled Aspiration, 2.2 L Displacement, and Direct Injection. EU Stage V, U.S. EPA Tier 4 Final Emissions Standards. Please Call or Fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today. It ships as a fully dressed engine including a complete fuel system, 12V starter and alternator, water pump, flywheel, and flywheel housing.

Price:
$9,800.00
Core Charge:
$2,000.00
Engine Specifications:
- Diesel Genset Engine
- Cylinders: 4
- Rated Speed: 1500/1800 RPM
- Emissions: EU Stage V, U.S. EPA Tier 4 Final
- Bore: 3.31 in / 84 mm
- Stroke: 3.94 in / 100 mm
- Displacement: 2.2 L
- Compression Ratio: 17.0:1
- Aspiration: Turbocharged Aftercooled
- Combustion System: Direct Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 39.06 in / 992 mm
- Width: 23.71 in / 602 mm
- Height: 38.78 in / 985 mm
- Dry Weight: 720.912 lbs / 327 kg
- Gross Mechanical Output: 38.1 - 49.6 kWm
- Typical Electrical Output: 40-50 kVA (32-40 kWe)
- Alternator Efficiency: N/A
- Switchable: N/A
