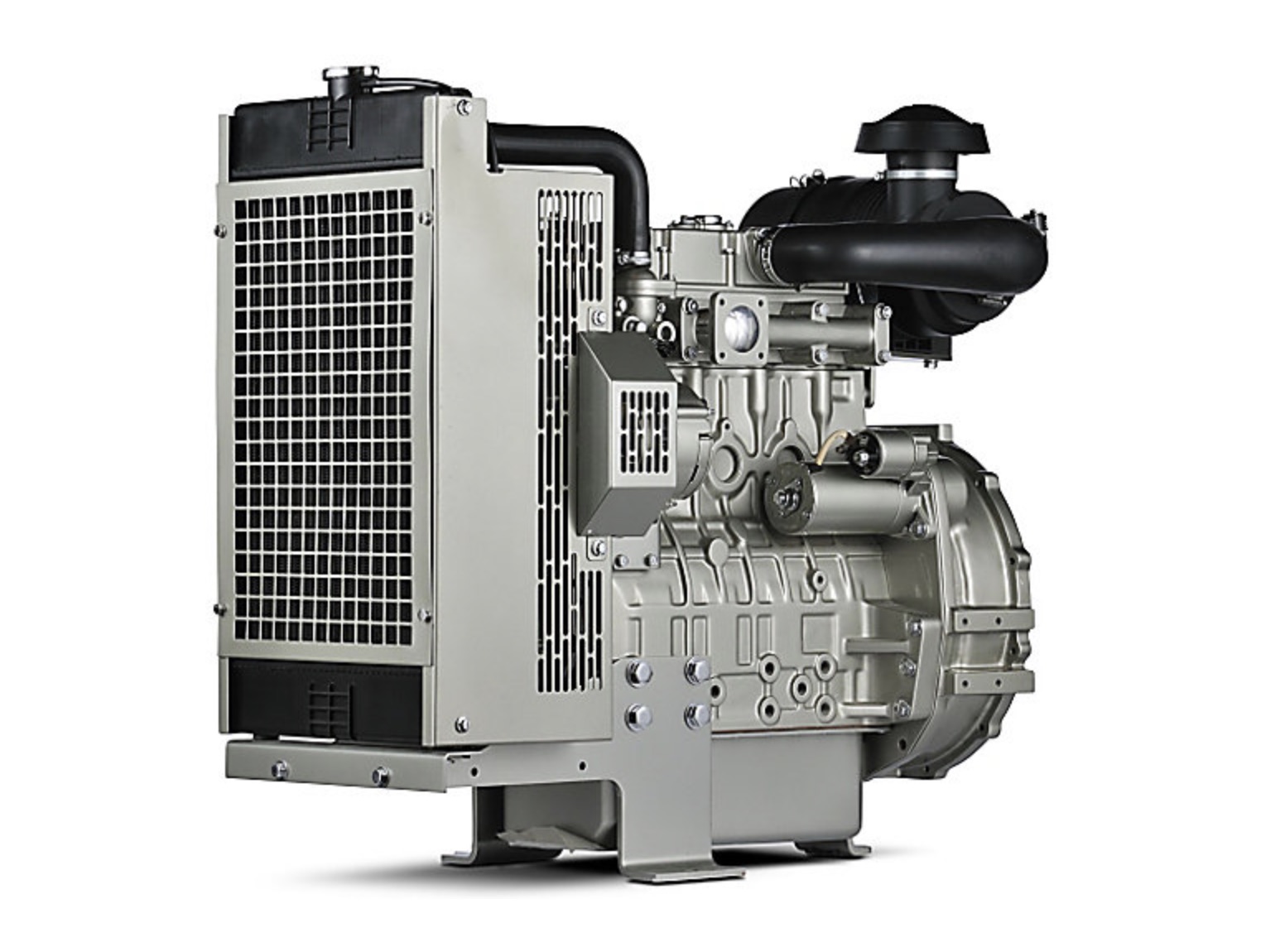

Perkins 404J-22G Diesel Genset Engine
FD-404J-22G-PNR
Perkins 400 Series
This Perkins 404J-22G Diesel Genset Engine is a 4 Cylinder, Perkins 400 Series, Natural, 2.2 L Displacement Diesel Engine with Mechanical Indirect Injection that is built to fit Diesel Generator Sets. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today.
Engine Specifications:
- Diesel Genset Engine
- Cylinders: 4
- Rated Speed: 1500 RPM
- Emissions: EU Stage V
- Bore: 84 mm
- Stroke: 100 mm
- Displacement: 2.2 L
- Compression Ratio: 23.3:1
- Aspiration: Natural
- Combustion System: Mechanical Indirect Injection
- Rotation: Counter-Clockwise
- Cooling System: Watercooled
- Length: 973 mm
- Width: 590 mm
- Height: 840 mm
- Dry Weight: 242 kg
- Gross Mechanical Output: 18.6-20.6 kWm
- Typical Electrical Output: 20.1-22.3 kVA (16.1-17.8 kWe)
- Alternator Efficiency: 87%
- Switchable: No
