Perkins New Replacement Engine

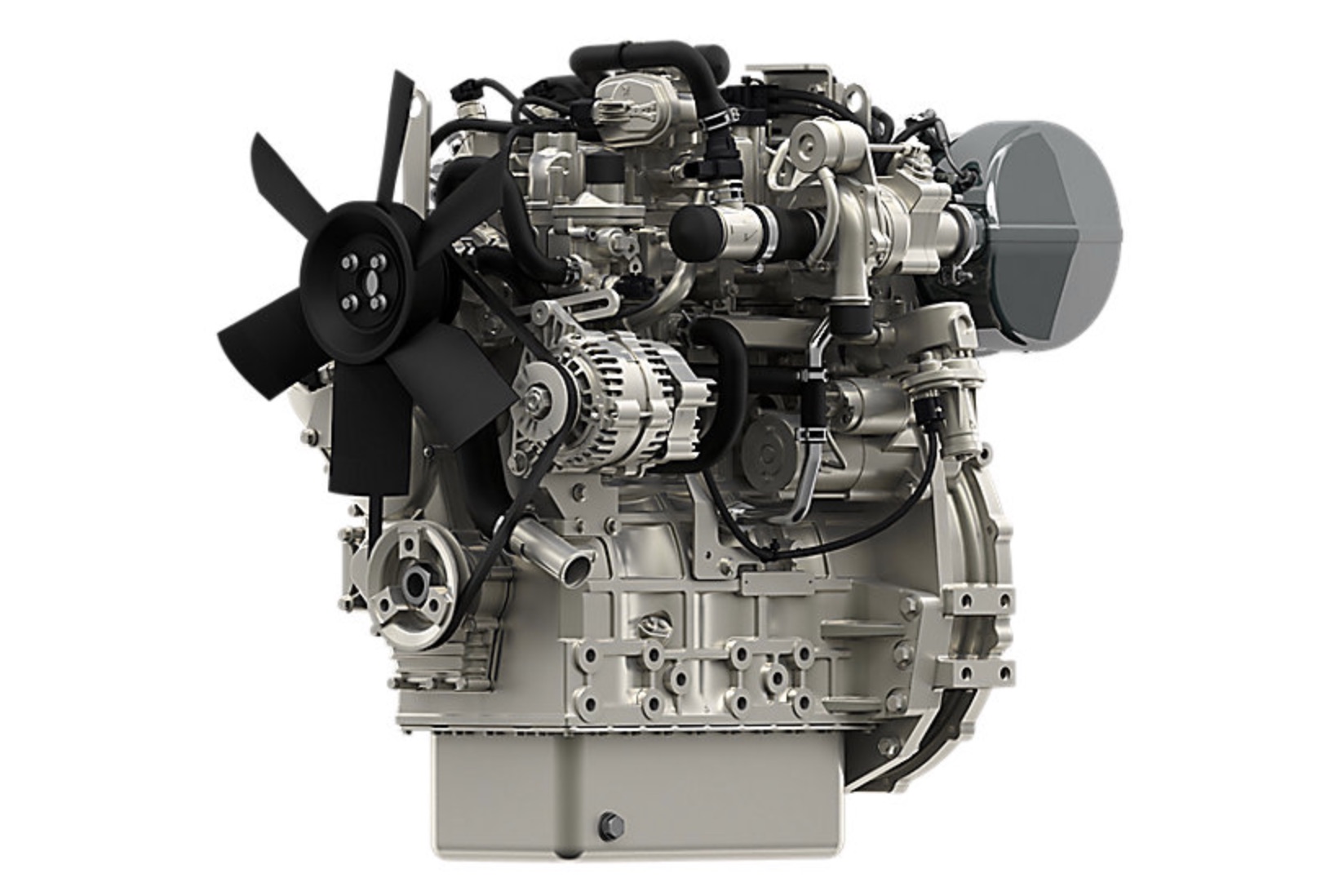

Perkins 404J-E22TA Industrial Diesel Engine
FD-404J-E22TA-PNR
Perkins 400 Series
Can Replace (Please call with arrangement number):
Caterpillar 3024/C2.2 Turbo Aftercooled
This Perkins 404J-E22TA Industrial Diesel Engine is a 4 Cylinder, Perkins 400 Series, Turbocharged Aftercooled, 2.2 L Displacement Diesel Engine with Direct Injection that is built for Industrial Diesel Machinery. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today. It ships as a fully dressed engine including: Complete fuel system, 12V starter and alternator, water pump, flywheel, and housing.
Engine Specifications:
- Industrial Diesel Engine
- Cylinders: 4
- Maximum Power: 55 kW
- Maximum Torque: 270 Nm @ 1600 RPM
- Rated Speed: 2800 RPM
- Minimum Power: 55 kW
- Emissions: EU Stage V, U.S EPA Tier 4 Final
- Cycle: 4 Stroke
- Bore: 3.31 in / 84 mm
- Stroke: 3.94 in / 100 mm
- Displacement: 2.2 L
- Compression Ratio: 17.0:1
- Aspiration: Turbocharged Aftercooled
- Combustion System: Direct Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 31.78 in / 807 mm
- Width: 21.23 in / 539 mm
- Height: 29.77 in / 757 mm
- Dry Weight: 533.519 lbs / 242 kg
