Perkins New Replacement Engine
Perkins 404D-22T Industrial Diesel Engine
FD-404D-22T-PNR
Perkins 400 Series
GP Builds
Can Replace (Please call with arrangement number):
Caterpillar 3024C/C2.2 Turbo

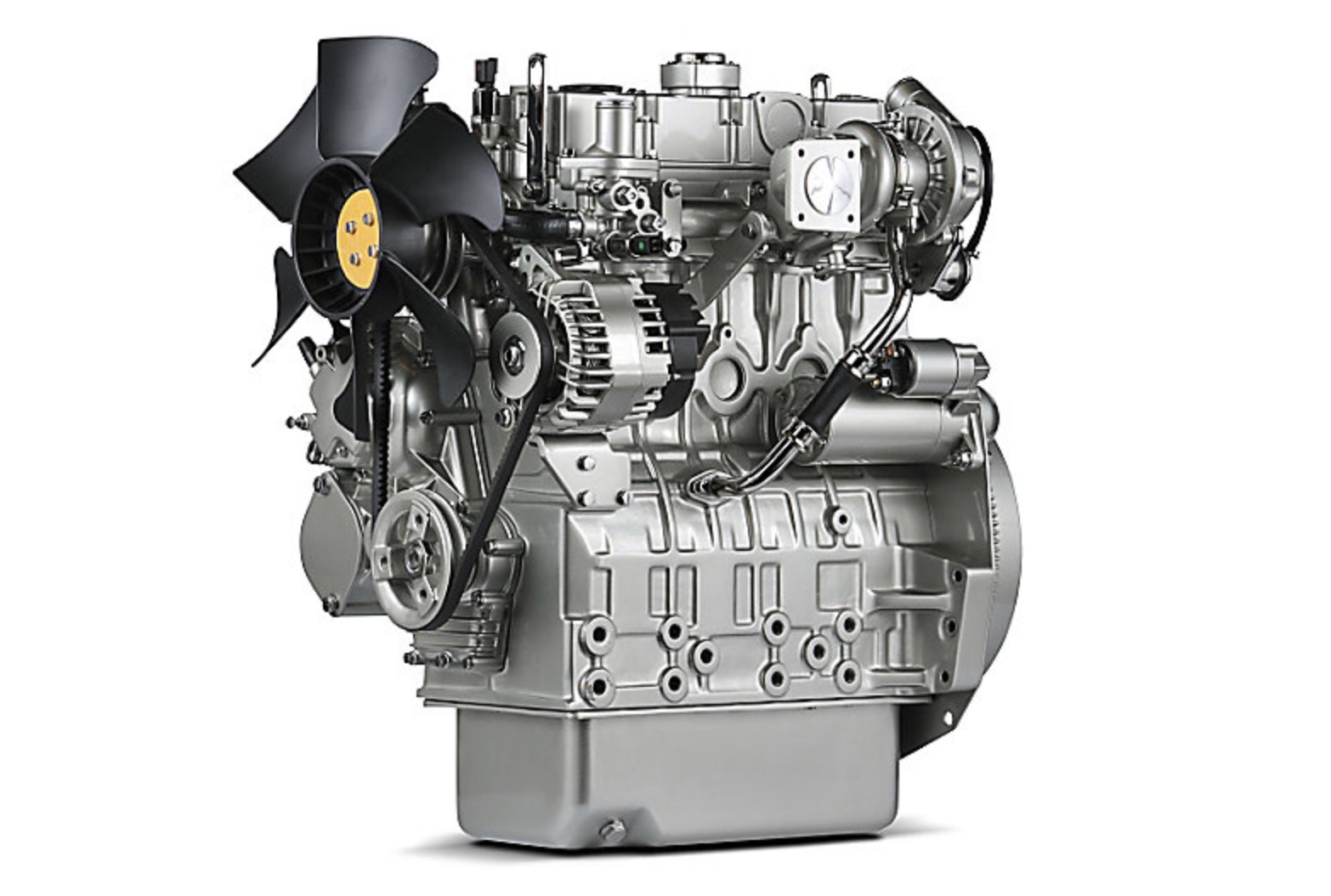

This Perkins 404D-22T Industrial Diesel Engine is a 4 Cylinder, Perkins 400 Series, Turbocharged, 2.2 L Displacement Diesel Engine with Indirect Injection that is built for Industrial Diesel Machinery. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today.
Engine Specifications:
- Industrial Diesel Engine
- Cylinders: 4
- Maximum Power: 45.5 kW
- Maximum Torque: 192 Nm @ 1800 RPM
- Rated Speed: 2500-3000 RPM
- Minimum Power: 36.3 kW
- Emissions: ECE R96 IIIA
- Cycle: 4 Stroke
- Bore: 84 mm
- Stroke: 100 mm
- Displacement: 2.2 L
- Compression Ratio: 23.3:1
- Aspiration: Turbocharged
- Combustion System: Indirect Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 662 mm
- Width: 489 mm
- Height: 698 mm
- Dry Weight: 206 kg
