Perkins New Replacement Engine

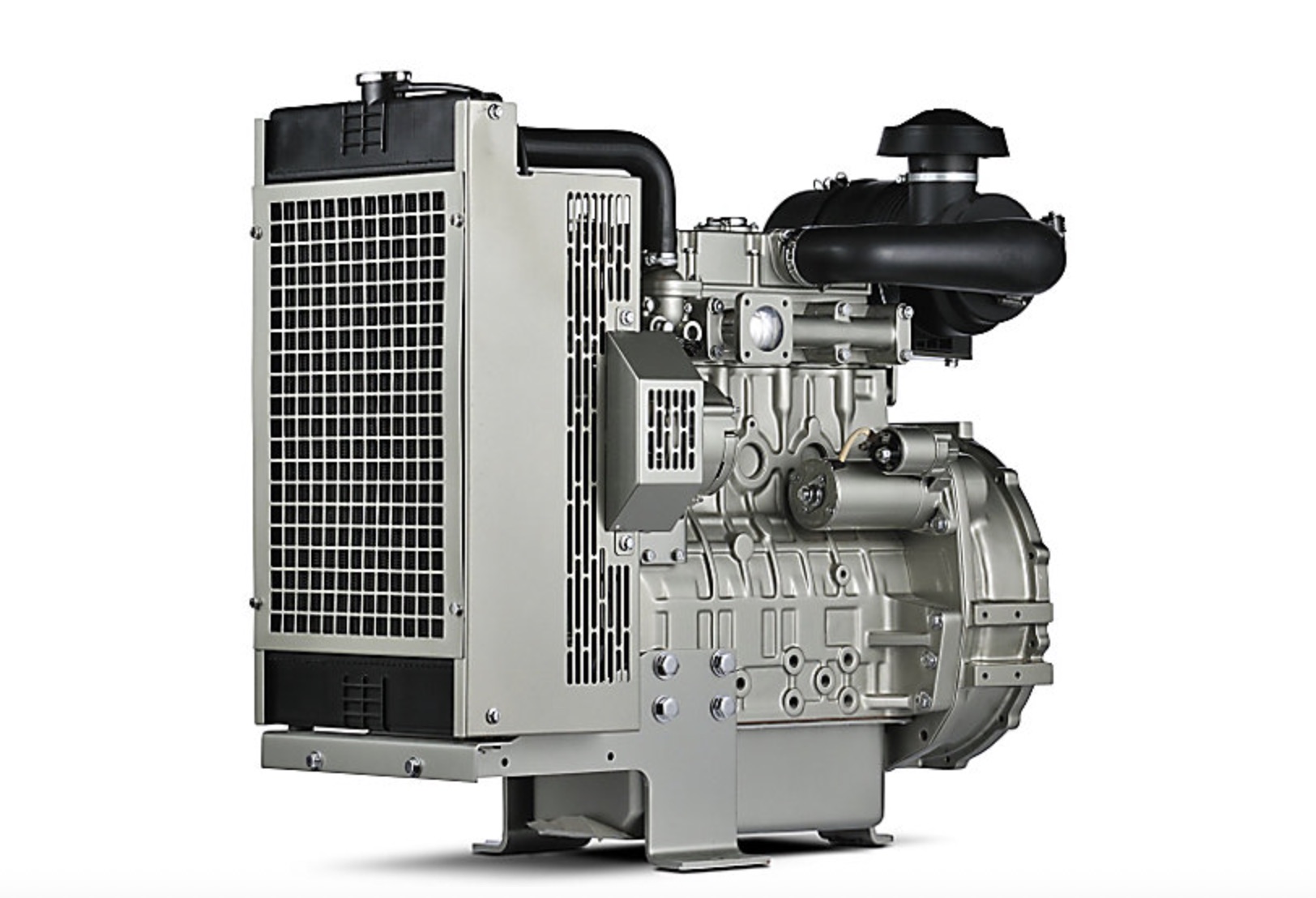

Perkins 404D-22G Diesel Genset Engine
FD-404D-22G-PNR
Perkins 400 Series
This Perkins 404D-22G Diesel Genset Engine is a 4 Cylinder, Perkins 400 Series, Natural, 2.2 L Displacement Diesel Engine with Indirect Injection that is built to fit Diesel Generator Sets. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today.
Engine Specifications:
- Diesel Genset Engine
- Cylinders: 4
- Rated Speed: 1500/1800 RPM
- Emissions: EU Stage IIIA/U.S. EPA Tier 4 interim
- Bore: 84 mm
- Stroke: 100 mm
- Displacement: 2.2 L
- Compression Ratio: 23.3:1
- Aspiration: Natural
- Combustion System: Indirect Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 948 mm
- Width: 498 mm
- Height: 841 mm
- Dry Weight: 242 kg
- Gross Mechanical Output: 18-24 kWM
- Typical Electrical Output: 20-26 kVA (16-21 kWe)
- Alternator Efficiency: 87-89%
- Switchable: Yes
