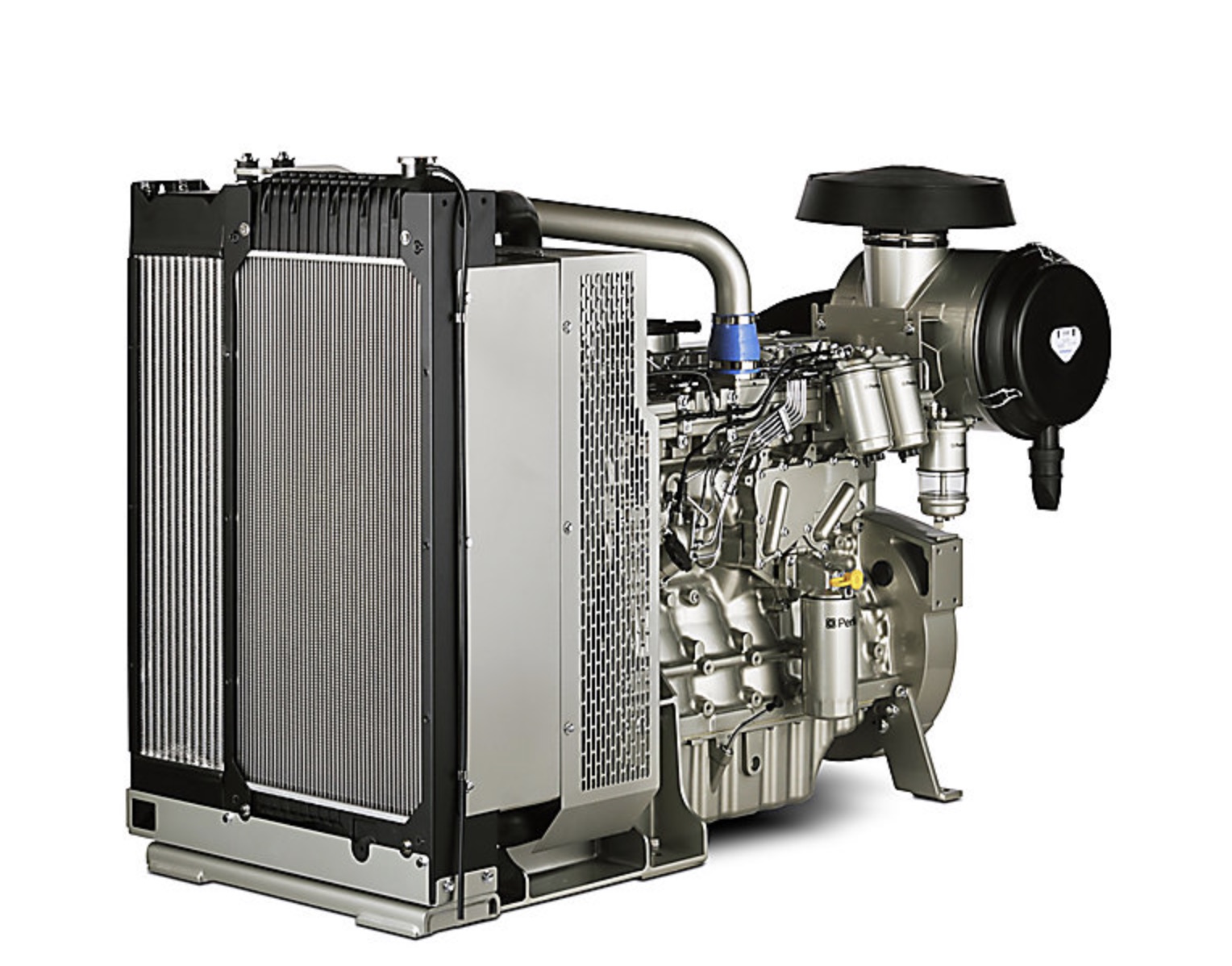

Perkins New Replacement Engine
1106A-70TG
Perkins 1100 Series
Engine Specifications:
- Diesel Genset Engine
- Cylinders: 6
- Rated Speed: 1500/1800 RPM
- Emissions: Fuel Optimised
- Bore: 105 mm
- Stroke: 135 mm
- Displacement: 7 L
- Compression Ratio: 18.2:1
- Aspiration: Turbocharged
- Combustion System: Direct Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 1648 mm
- Width: 760 mm
- Height: 1092 mm
- Dry Weight: 739 kg
- Gross Mechanical Output: 127-160 kWm
- Typical Electrical Output: 135-169 kVA (108-135 kWe)
- Alternator Efficiency: 91%
- Switchable: No
