Perkins New Replacement Engine

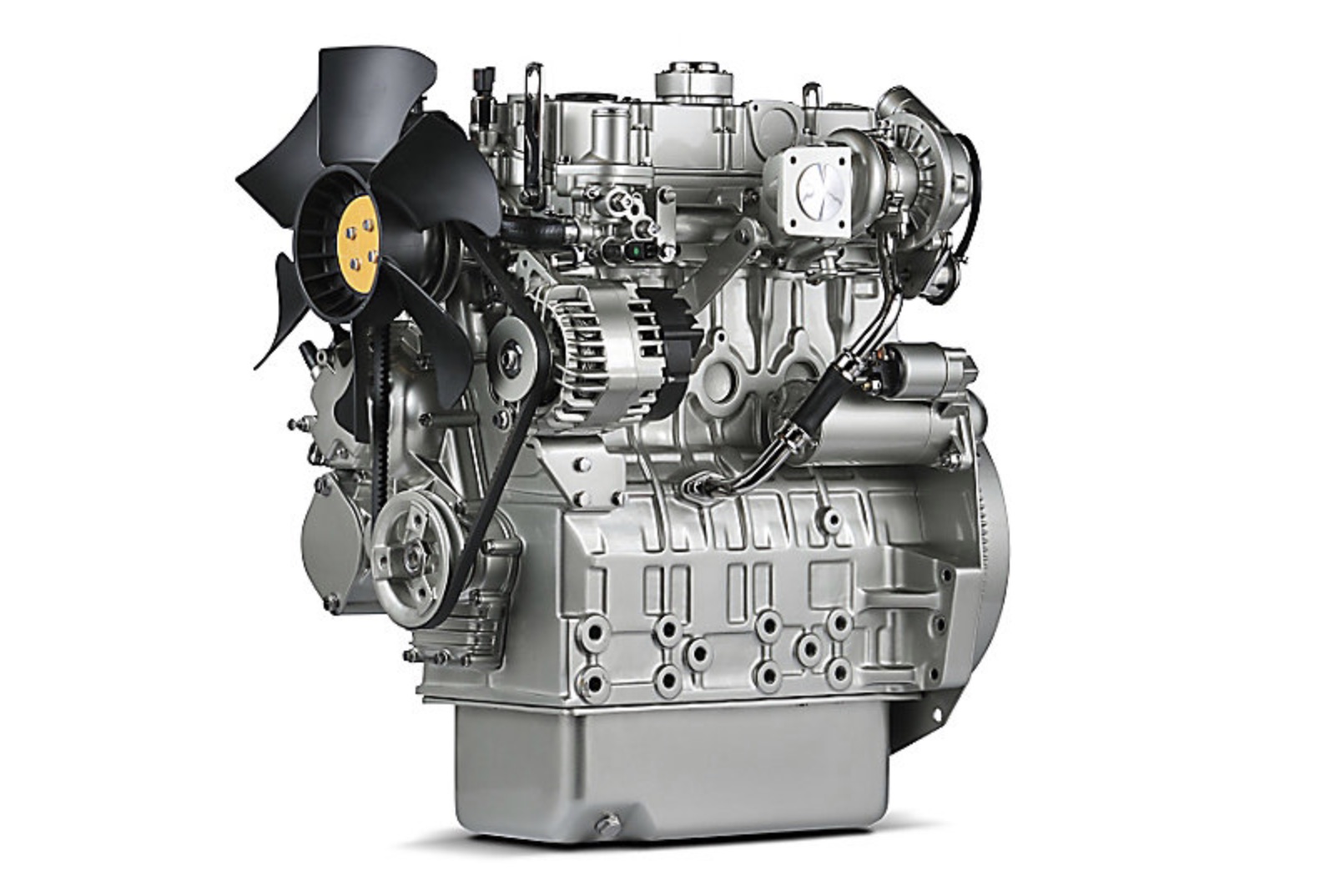

Perkins 404D-22TA Industrial Diesel Engine
FD-404D-22TA-PNR
Perkins 400 Series
GR Builds
Can Replace (Please call with arrangement number):
Caterpillar 3024/C2.2 Turbo Aftercooled
This Perkins 404D-22TA Industrial Diesel Engine is a 4 Cylinder, Perkins 400 Series, Turbocharged Aftercooled, 2.2 L Displacement Diesel Engine with Indirect Injection that is built for Industrial Diesel Machinery. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today. It ships as a fully dressed engine including: Complete fuel system, 12V starter and alternator, water pump, flywheel, and housing.
Engine Specifications:
- Industrial Diesel Engine
- Cylinders: 4
- Maximum Power: 49.2kW
- Maximum Torque: 200 Nm @ 1800 RPM
- Rated Speed: 2800 RPM
- Minimum Power: 49.2 kW
- Emissions: ECE R96 IIIA
- Cycle: 4 Stroke
- Bore: 3.31 in / 84 mm
- Stroke: 3.94 in / 100 mm
- Displacement: 2.2 L
- Compression Ratio: 23.3:1
- Aspiration: Turbocharged Aftercooled
- Combustion System: Indirect Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 26.07 in / 662 mm
- Width: 19.26 in / 489 mm
- Height: 27.49 in / 698 mm
- Dry Weight: 454.152 lbs / 206 kg
