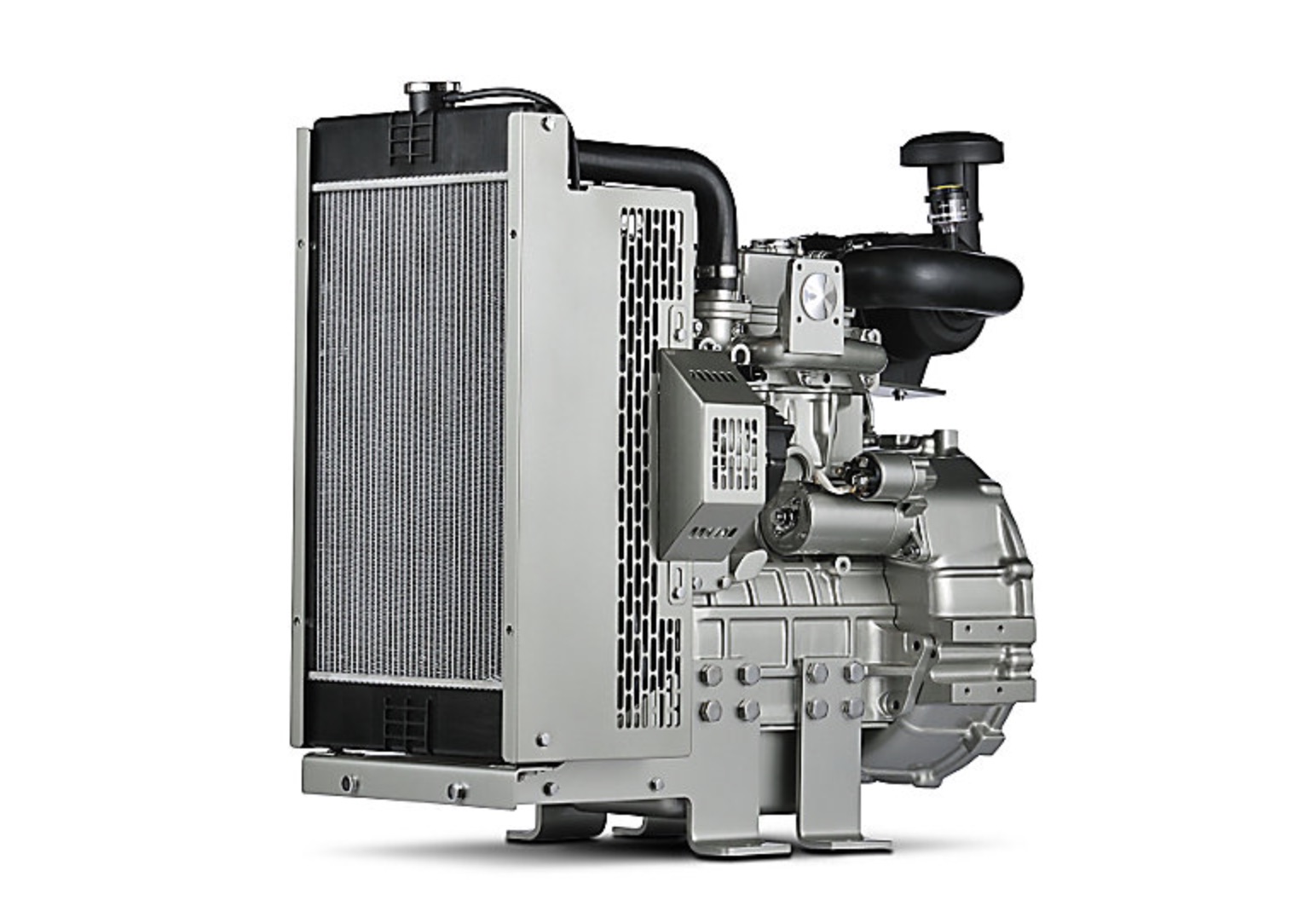

Perkins 403F-15G Diesel Genset Engine
FD-403F-15G-PNR
Perkins 400 Series
The Perkins 403F-15 is a Diesel Engine purpose-built to drive electric generators, delivering steady, reliable RPM performance to keep standby and prime power systems running smoothly. It is a 3 Cylinder Perkins 400 Series Engine with Natural Aspiration, 1.5 L Displacement, and Mechanical Indirect Injection. U.S. EPA Tier 4 Final Emissions Standards. Please Call or Fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today. It ships as a fully dressed engine including a complete fuel system, 12V starter and alternator, water pump, flywheel, and flywheel housing.

Engine Specifications:
- Diesel Genset Engine
- Cylinders: 3
- Rated Speed: 1800 RPM
- Emissions: U.S. EPA Tier 4 Final
- Bore: 3.31 in / 84 mm
- Stroke: 3.55 in / 90 mm
- Displacement: 1.5 L
- Compression Ratio: 22.5:1
- Aspiration: Natural
- Combustion System: Mechanical Indirect Injection
- Rotation: Counter-Clockwise
- Cooling System: Watercooled
- Length: 31.7 in / 805 mm
- Width: 18.63 in / 473 mm
- Height: 31.23 in / 793 mm
- Dry Weight: 434.311 lbs / 197 kg
- Gross Mechanical Output: 12.6-14 kWm
- Typical Electrical Output: 13.5-15.1 kVA (10.8-12.1 kWe)
- Alternator Efficiency: 88%
- Switchable: No
