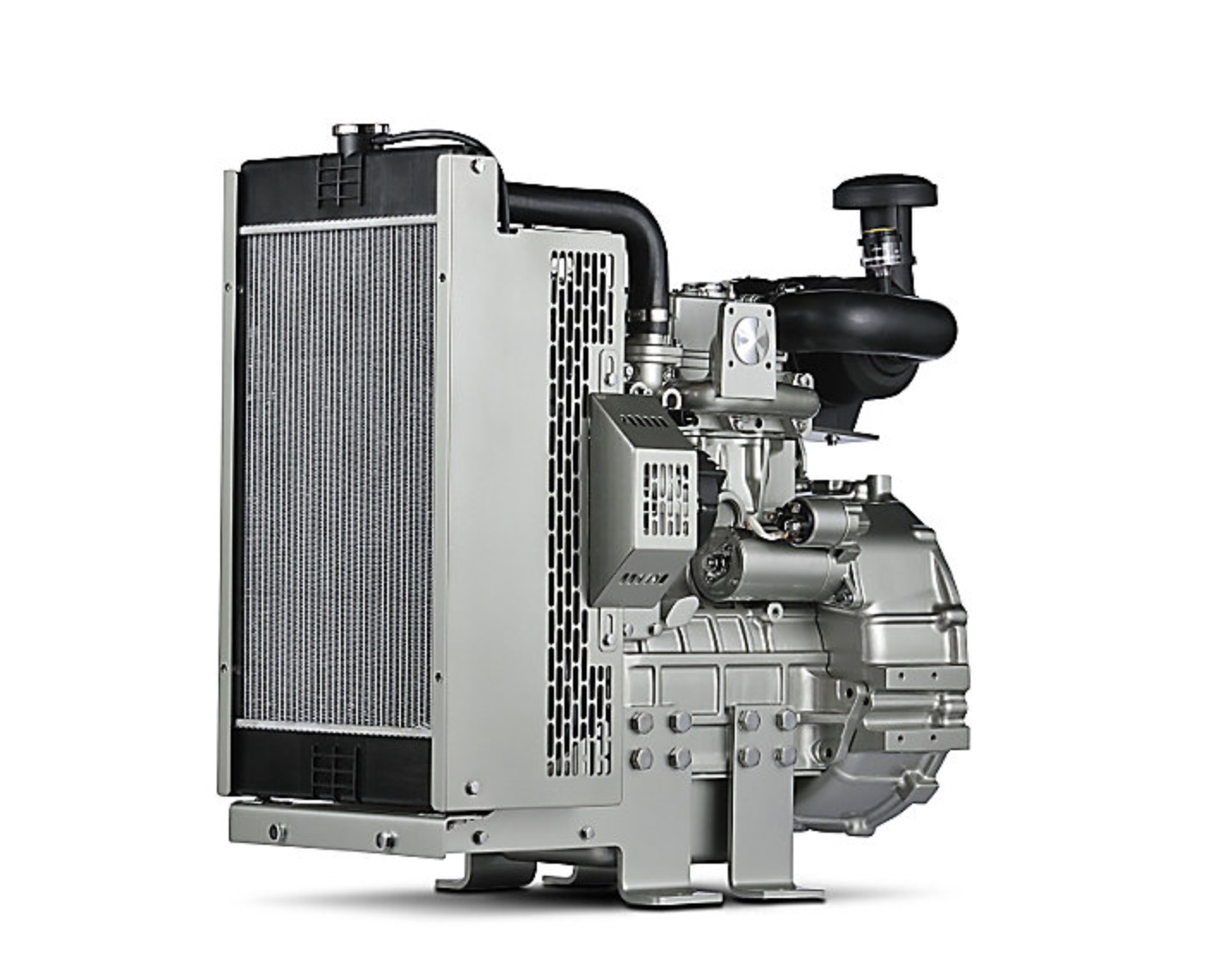

Perkins New Replacement Engine
403J-07G
Perkins 400 Series
Engine Specifications:
- Diesel Genset Engine
- Cylinders: 3
- Rated Speed: 1500 RPM
- Emissions: EU Stage V
- Bore: 67 mm
- Stroke: 72 mm
- Displacement: 0.7 L
- Compression Ratio: 23.5:1
- Aspiration: Natural
- Combustion System: Mechanical Indirect Injection
- Rotation: Counter-Clockwise
- Cooling System: Watercooled
- Length: 645 mm
- Width: 442 mm
- Height: 630 mm
- Dry Weight: 87 kg
- Gross Mechanical Output: 6.0-6.6 kWm
- Typical Electrical Output: 5.8-6.4 kVA (4.7-5.1 kWe)
- Alternator Efficiency: 83.20%
- Switchable: No
