Perkins New Replacement Engine
Perkins 1103D-33G Diesel Genset Engine
FD-1103D-33G-PNR
Perkins 1100 Series
This Perkins 1103D-33G Diesel Genset Engine is a 3 Cylinder, Perkins 1100 Series, Natural, 3.3 L Displacement Diesel Engine with Direct Injection that is built to fit Diesel Generator Sets. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today. It ships as a fully dressed engine including: Complete fuel system, 12V starter and alternator, water pump, flywheel, and housing.
Engine Specifications:
- Diesel Genset Engine
- Cylinders: 3
- Rated Speed: 1500/1800 RPM
- Emissions: EU Stage IIIA/U.S. EPA Tier 3
- Bore: 4.14 in / 105 mm
- Stroke: 5 in / 127 mm
- Displacement: 3.3 L
- Compression Ratio: 19.25:1
- Aspiration: Natural
- Combustion System: Direct Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 39.38 in / 1000 mm
- Width: 24.85 in / 631 mm
- Dry Weight: 725.321 lbs / 329 kg
- Gross Mechanical Output: 30 - 38 kWm
- Typical Electrical Output: 32-40 kVA (25-32 kWe)
- Alternator Efficiency: 89%
- Switchable: Yes
Similar New Engines:
Remans Like This Engine:

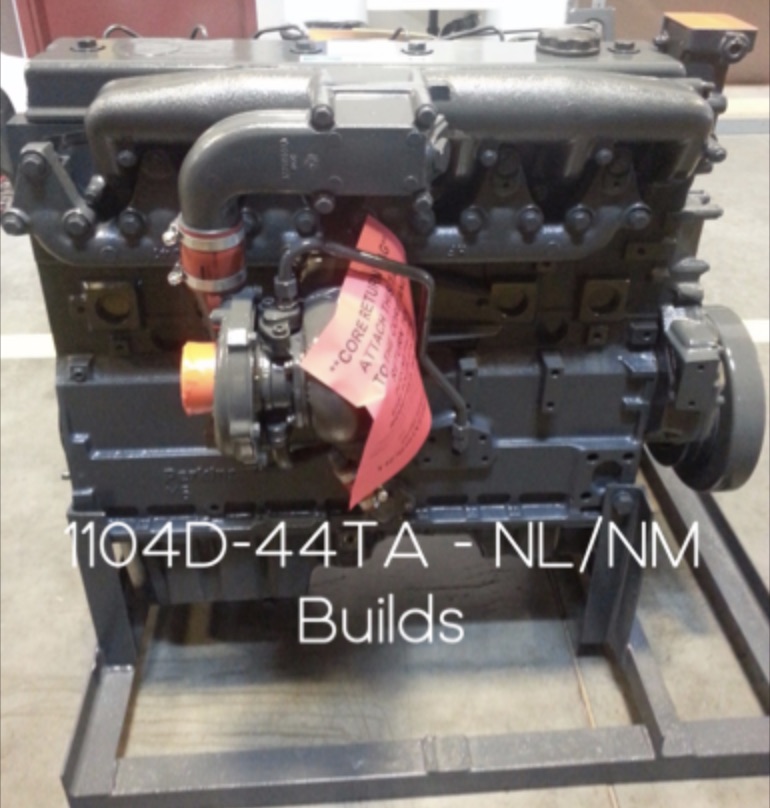

Perkins 1104D-44T/TA - NL/NM Builds Remanufactured Diesel Engine
