Perkins New Replacement Engine

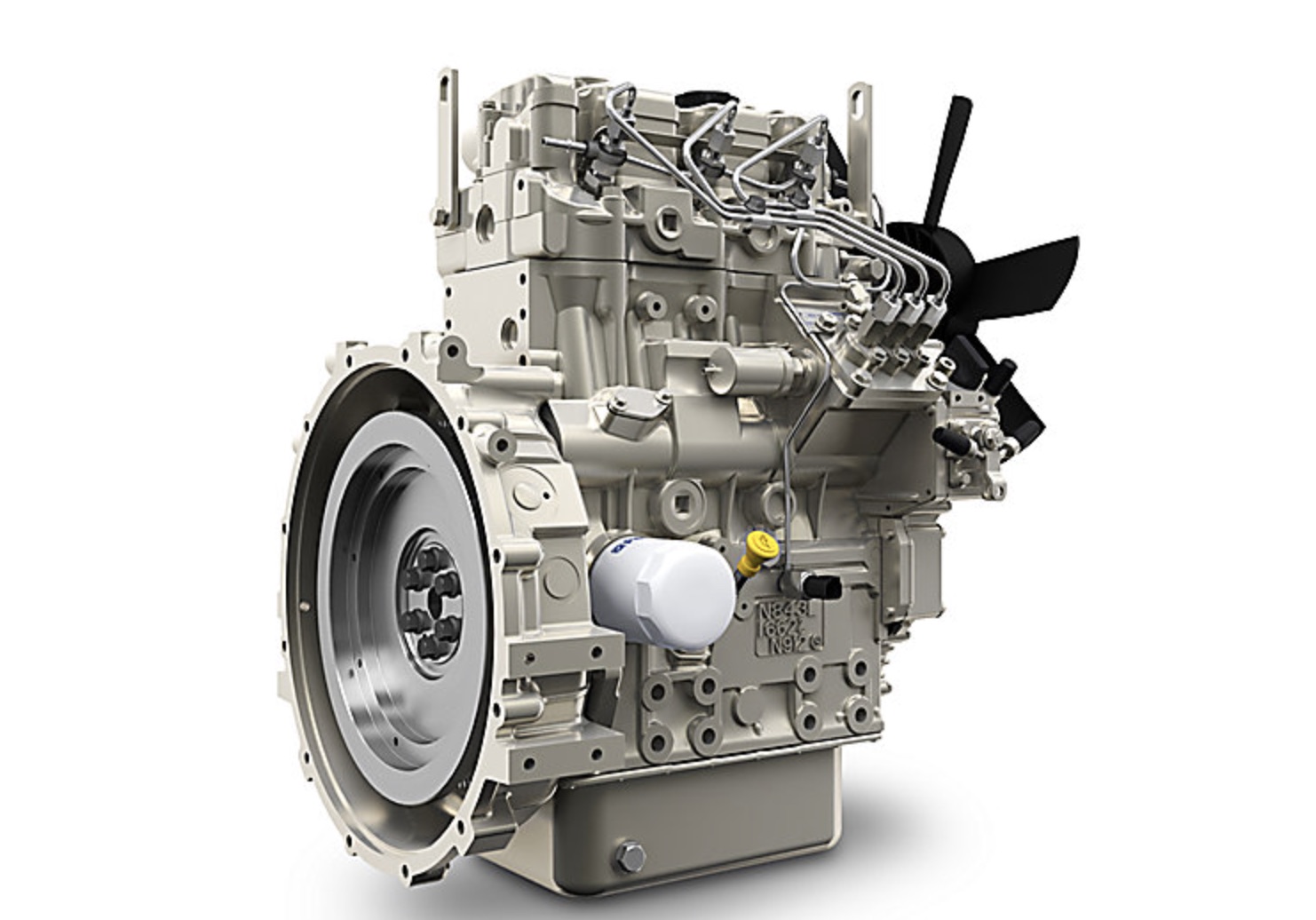

Perkins 403J-17 Industrial Diesel Engine
FD-403J-17-PNR
Perkins 400 Series
This Perkins 403J-17 Industrial Diesel Engine is a 3 Cylinder, Perkins 400 Series, Natural, 1.7 L Displacement Diesel Engine with Indirect Injection that is built for Industrial Diesel Machinery. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today.
Engine Specifications:
- Industrial Diesel Engine
- Cylinders: 3
- Maximum Power: 18.4 kW
- Maximum Torque: 91.9 Nm @ 1600 RPM
- Rated Speed: 2200-2800 RPm
- Minimum Power: 184. kW
- Emissions: EU Stage V
- Cycle: 4 Stroke
- Bore: 84 mm
- Stroke: 100 mm
- Displacement: 1.7 L
- Compression Ratio: 23.0:1
- Aspiration: Natural
- Combustion System: Indirect Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 572 mm
- Width: 453 mm
- Height: 643 mm
- Dry Weight: 163 kg
