Perkins New Replacement Engine
Perkins 403F-15 Industrial Diesel Engine
FD-403F-15-PNR
Perkins 400 Series
EK Builds

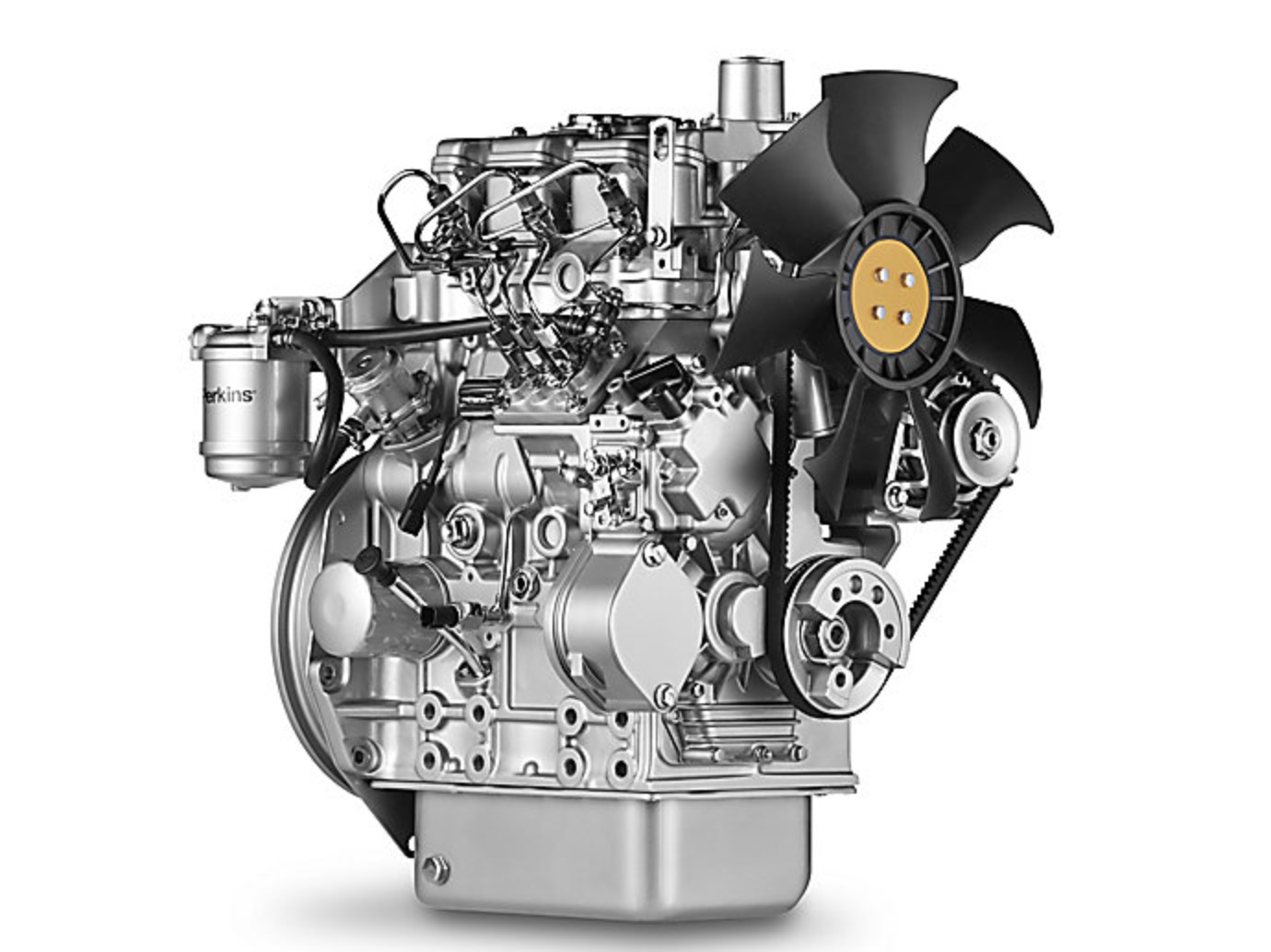

This Perkins 403F-15 Industrial Diesel Engine is a 3 Cylinder, Perkins 400 Series, Natural, 1.4 L Displacement Diesel Engine with Indirect Injection that is built for Industrial Diesel Machinery. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today.
Engine Specifications:
- Industrial Diesel Engine
- Cylinders: 3
- Maximum Power: 18.4 kW
- Maximum Torque: 86 Nm @ 1800 RPM
- Rated Speed: 2100 RPM
- Minimum Power: 18.4 kW
- Emissions: U.S. EPA Tier 4 Final
- Cycle: 4 Stroke
- Bore: 84 mm
- Stroke: 90 mm
- Displacement: 1.4 L
- Compression Ratio: 22.5:1
- Aspiration: Natural
- Combustion System: Indirect Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 572 mm
- Width: 453 mm
- Height: 643 mm
- Dry Weight: 149 kg
