Perkins New Replacement Engine
Perkins 403J-11G Diesel Genset Engine
FD-403J-11G-PNR
Perkins 400 Series

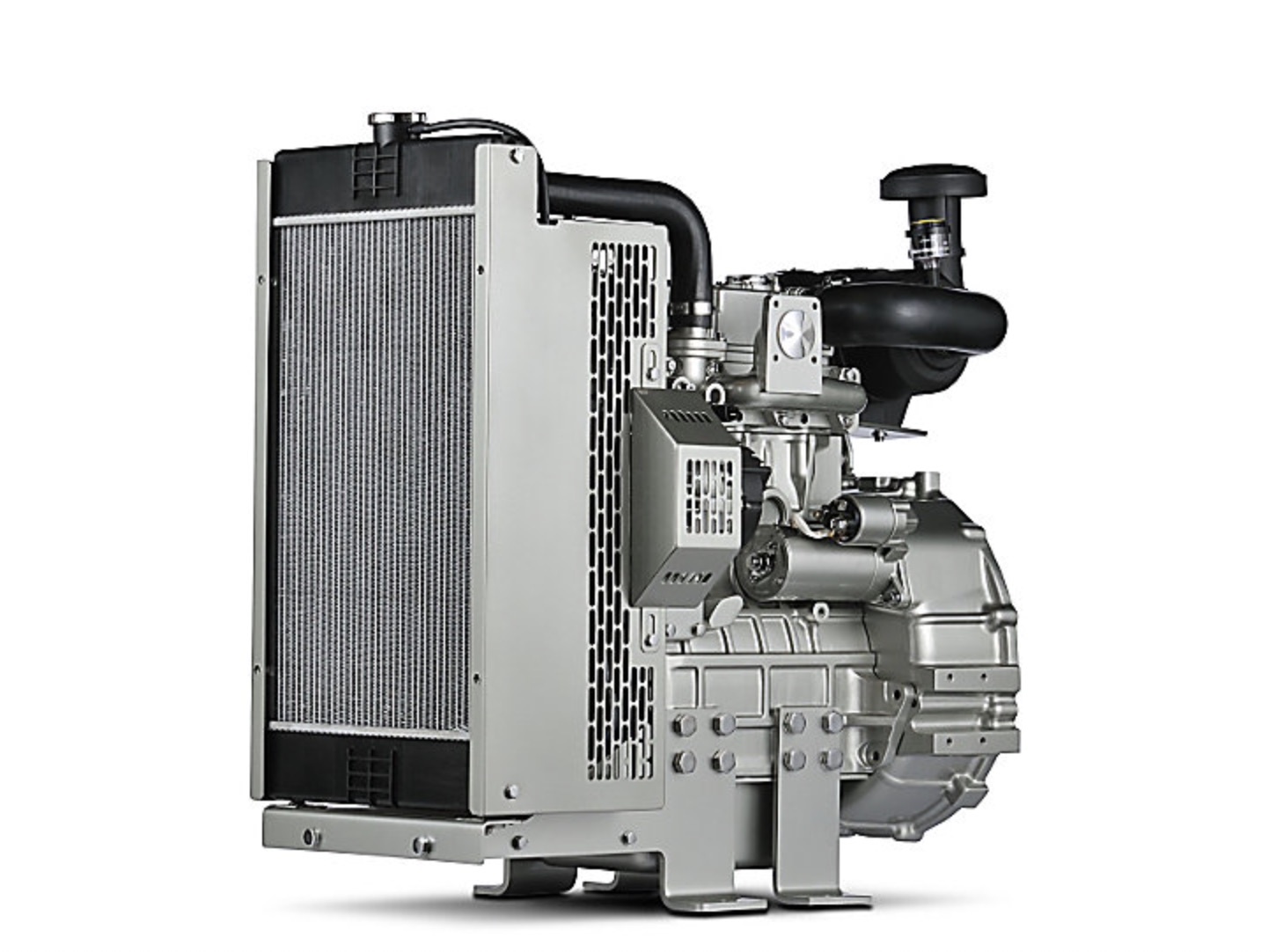

This Perkins 403J-11G Diesel Genset Engine is a 3 Cylinder, Perkins 400 Series, Natural, 1.1 L Displacement Diesel Engine with Mechanical Indirect Injection that is built to fit Diesel Generator Sets. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today. It ships as a fully dressed engine including: Complete fuel system, 12V starter and alternator, water pump, flywheel, and housing.
Engine Specifications:
- Diesel Genset Engine
- Cylinders: 3
- Rated Speed: 1500 RPM
- Emissions: EU Stage V
- Bore: 3.04 in / 77 mm
- Stroke: 3.19 in / 81 mm
- Displacement: 1.1 L
- Compression Ratio: 23.0:1
- Aspiration: Natural
- Combustion System: Mechanical Indirect Injection
- Rotation: Counter-Clockwise
- Cooling System: Watercooled
- Length: 30.56 in / 776 mm
- Width: 17.68 in / 449 mm
- Height: 27.56 in / 700 mm
- Dry Weight: 248.369 lbs / 129 kg
- Gross Mechanical Output: 8.6-9.5 kWm
- Typical Electrical Output: 9.0-10 kVA (7.2-8 kWe)
- Alternator Efficiency: 86%
- Switchable: No
