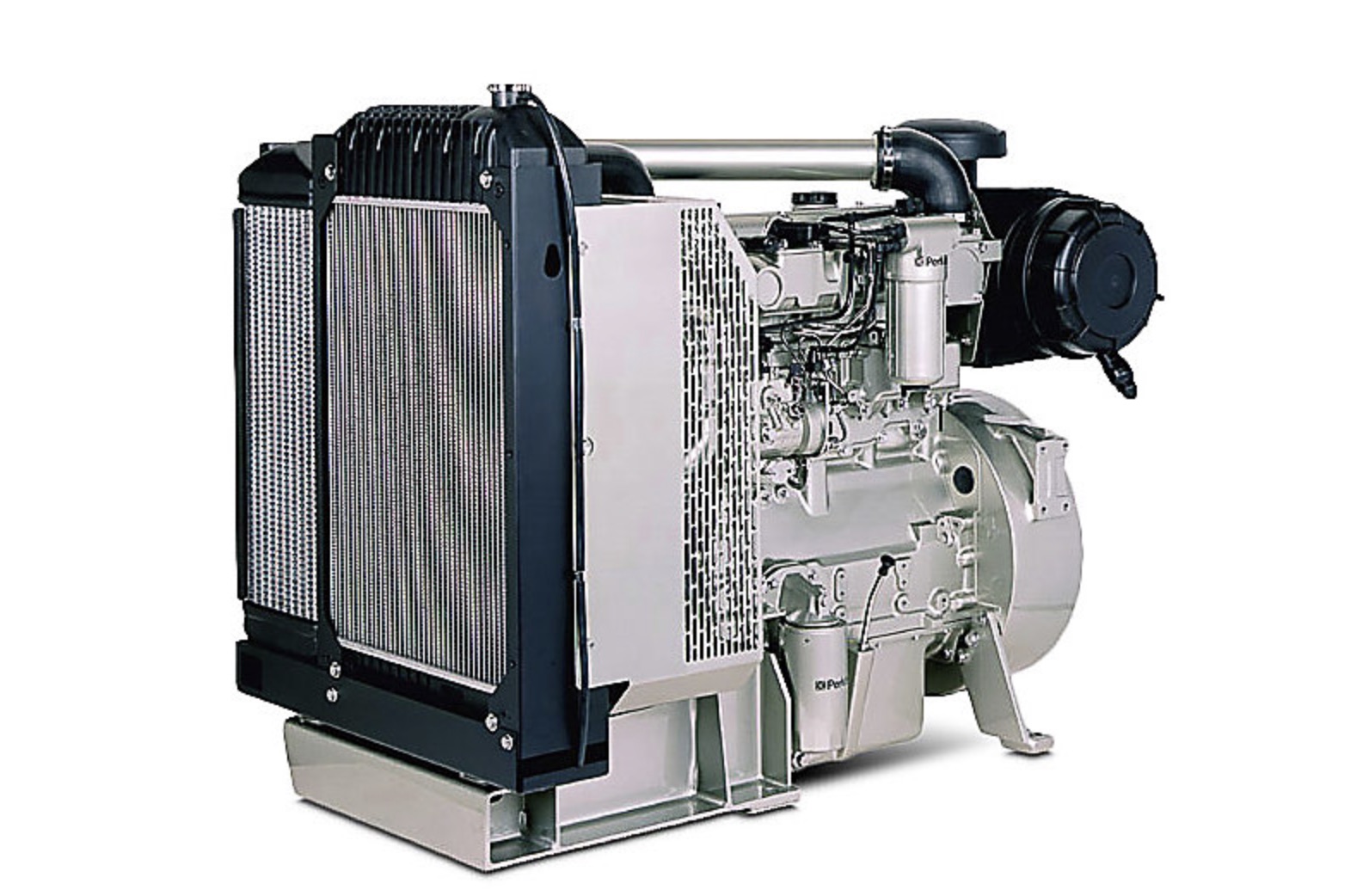

Perkins 1104C-44TAG Diesel Genset Engine
FD-1104C-44TAG-PNR
Perkins 1100 Series
The Perkins 1104C-44TA is a Diesel Engine purpose-built to drive electric generators, delivering steady, reliable RPM performance to keep standby and prime power systems running smoothly. It is a 4 Cylinder Perkins 1100 Series Engine with Turbocharged Aftercooled Aspiration, 4.4 L Displacement, and Direct Injection. EU Stage II/U.S. EPA Tier 2 Emissions Standards. Please Call or Fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today. It ships as a fully dressed engine including a complete fuel system, 12V starter and alternator, water pump, flywheel, and flywheel housing.

Engine Specifications:
- Diesel Genset Engine
- Cylinders: 4
- Rated Speed: 1500/1800 RPM
- Emissions: EU Stage II/U.S. EPA Tier 2
- Bore: 4.14 in / 105 mm
- Stroke: 5 in / 127 mm
- Displacement: 4.4 L
- Compression Ratio: 18.2:1
- Aspiration: Turbocharged Aftercooled
- Combustion System: Direct Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 49.57 in / 1259 mm
- Width: 28.39 in / 721 mm
- Height: 38.04 in / 966 mm
- Dry Weight: N/A
- Gross Mechanical Output: 75-117.5 kWm
- Typical Electrical Output: 80-126.5 kVA (64-101 kWe)
- Alternator Efficiency: 90%
- Switchable: Yes
