Perkins New Replacement Engine

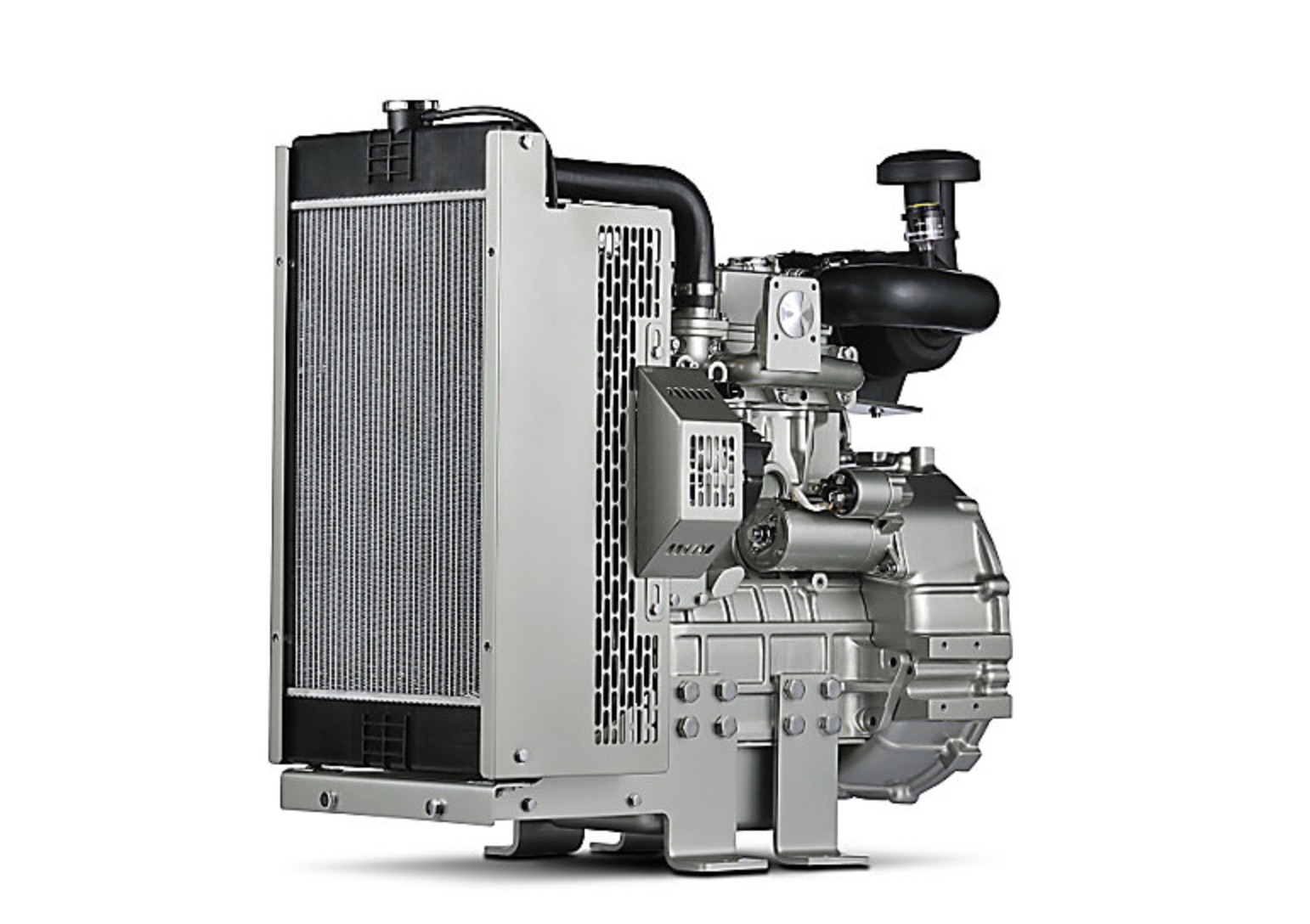

Perkins 403F-07G Diesel Genset Engine
FD-403F-07G-PNR
Perkins 400 Series
This Perkins 403F-07G Diesel Genset Engine is a 3 Cylinder, Perkins 400 Series, Natural, 0.7 L Displacement Diesel Engine with Mechanical Indirect Injection that is built to fit Diesel Generator Sets. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today. It ships as a fully dressed engine including: Complete fuel system, 12V starter and alternator, water pump, flywheel, and housing.
Engine Specifications:
- Diesel Genset Engine
- Cylinders: 3
- Rated Speed: 1800 RPM
- Emissions: U.S. EPA Tier 4 Final
- Bore: 2.64 in / 67 mm
- Stroke: 2.84 in / 72 mm
- Displacement: 0.7 L
- Compression Ratio: 23.5:1
- Aspiration: Natural
- Combustion System: Mechanical Indirect Injection
- Rotation: Counter-Clockwise
- Cooling System: Watercooled
- Length: 20.04 in / 509 mm
- Width: 14.81 in / 376 mm
- Height: 20. 79 in / 528 mm
- Dry Weight: 156.528 lbs / 71 kg
- Gross Mechanical Output: 5.1-5.6 kWm
- Typical Electrical Output: 5.4-5.9 kVA (4.3-4.7 kWe)
- Alternator Efficiency: N/A
- Switchable: N/A
