Perkins New Replacement Engine

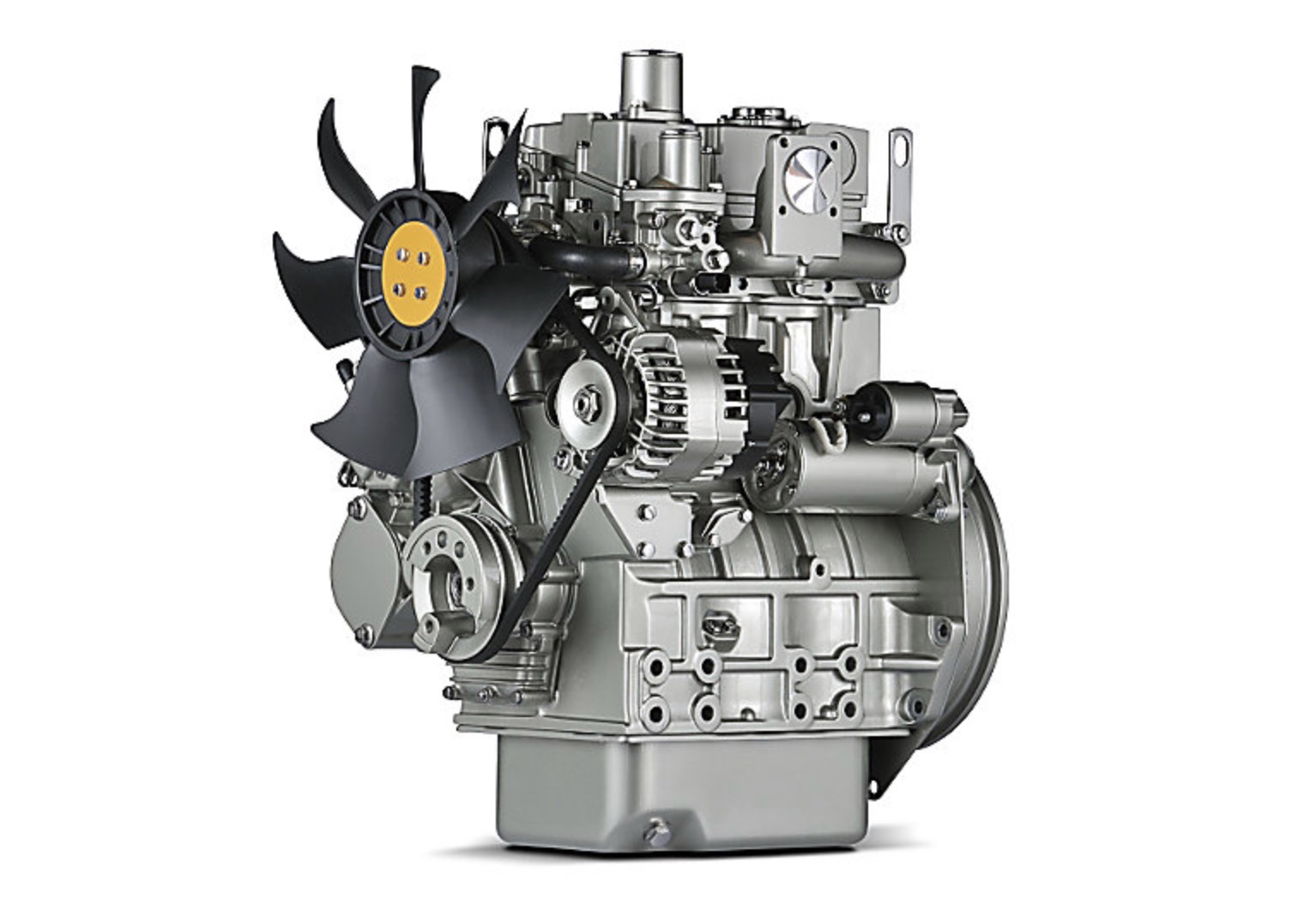

Perkins 403D-15 Industrial Diesel Engine
FD-403D-15-PNR
Perkins 400 Series
GK Builds
This Perkins 403D-15 Industrial Diesel Engine is a 3 Cylinder, Perkins 400 Series, Natural, 1.5 L Displacement Diesel Engine with Indirect Injection that is built for Industrial Diesel Machinery. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today.
Engine Specifications:
- Industrial Diesel Engine
- Cylinders: 3
- Maximum Power: 25.1 kW
- Maximum Torque: 96 Nm @ 1800 RPM
- Rated Speed: 3000 RPM
- Minimum Power: 20.7 kW
- Emissions: ECE R96 IIIA
- Cycle: 4 Stroke
- Bore: 84 mm
- Stroke: 90 mm
- Displacement: 1.5 L
- Compression Ratio: 22.5:1
- Aspiration: Natural
- Combustion System: Indirect Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 572 mm
- Width: 453 mm
- Height: 643 mm
- Dry Weight: 154 kg
