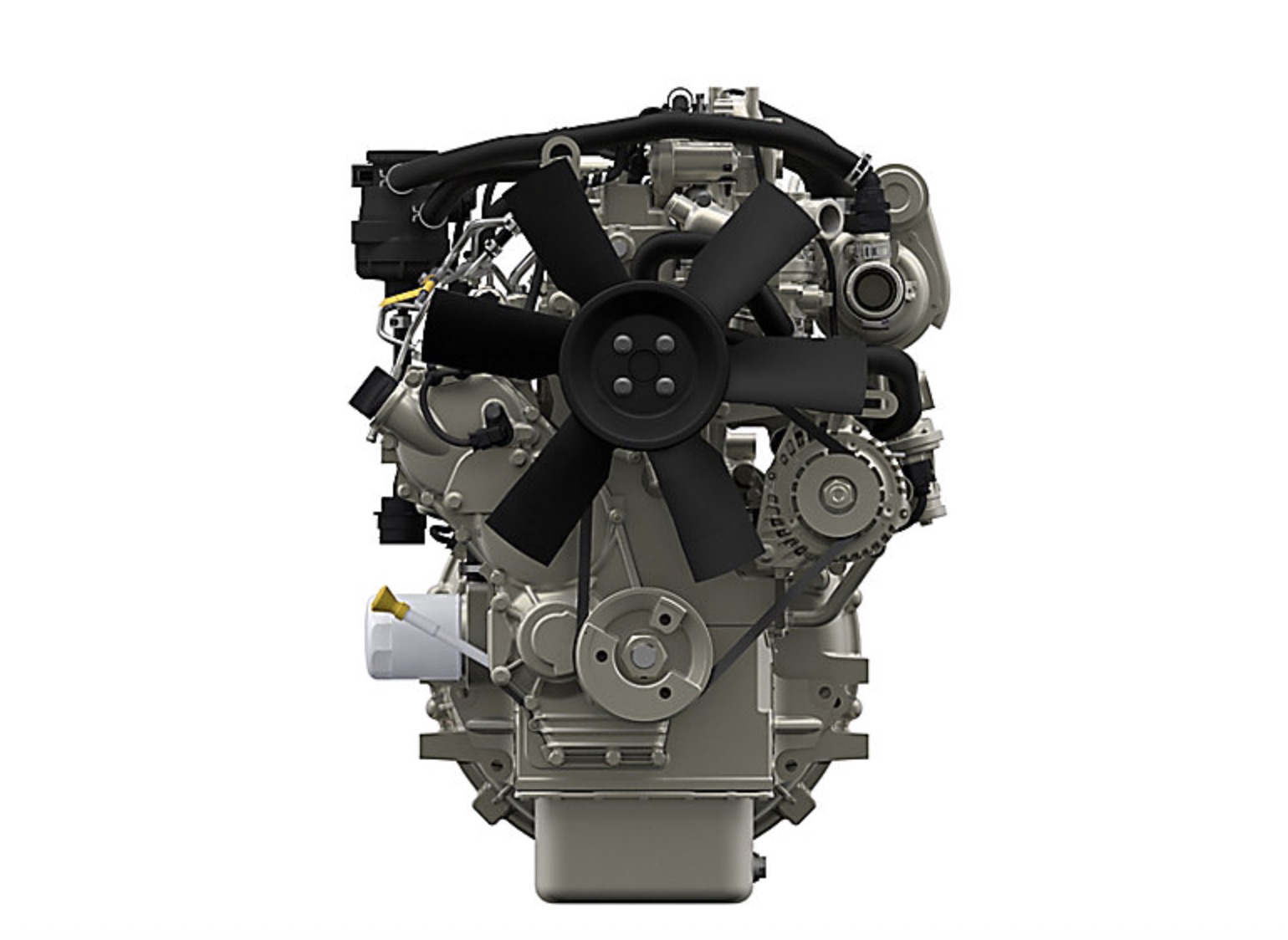

Perkins New Replacement Engine
403J-E17T
Perkins 400 Series
Engine Specifications:
- Industrial Diesel Engine
- Cylinders: 3
- Maximum Power: 36 kW
- Maximum Torque: 166 Nm @ 1600 RPM
- Rated Speed: 2800 RPM
- Minimum Power: N/A
- Emissions: EU Stage V, U.S. EPA Tier 4 Final
- Cycle: 4 Stroke
- Bore: 84 mm
- Stroke: 100 mm
- Displacement: 1.7 L
- Compression Ratio: 17.0:1
- Aspiration: Turbocharged
- Combustion System: Direct Injection
- Rotation: Counter-Clockwise
- Cooling System: N/A
- Length: 713 mm
- Width: 536 mm
- Height: 722 mm
- Dry Weight: 190 kg
