Perkins New Replacement Engine

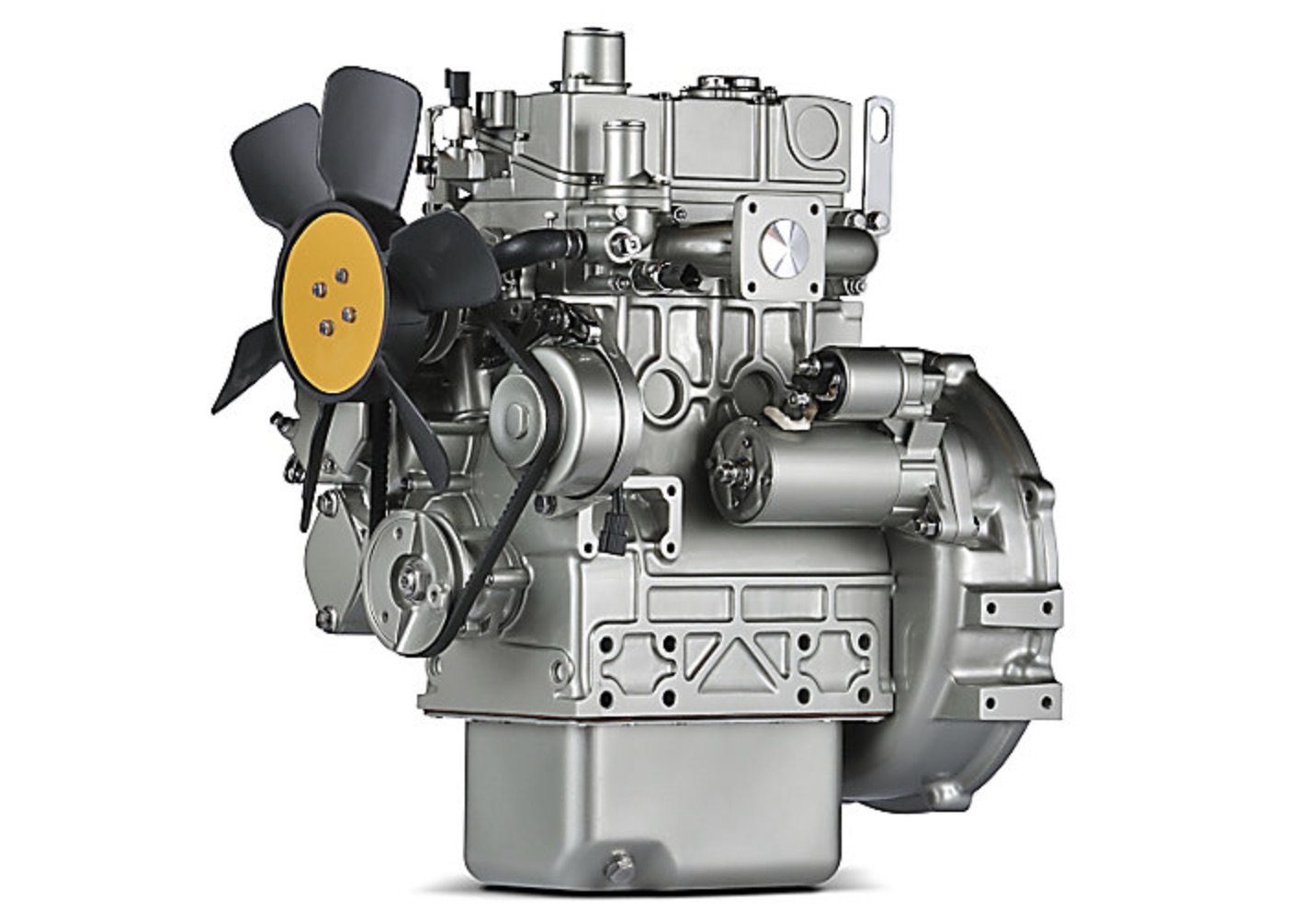

Perkins 403D-11 Industrial Diesel Engine
FD-403D-11-PNR
Perkins 400 Series
GJ Builds
Can Replace (Please call with arrangement number):
Caterpillar 3011/C11
This Perkins 403D-11 Industrial Diesel Engine is a 3 Cylinder, Perkins 400 Series, Natural, 1.1 L Displacement Diesel Engine with Indirect Injection that is built for Industrial Diesel Machinery. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today. It ships as a fully dressed engine including: Complete fuel system, 12V starter and alternator, water pump, flywheel, and housing.
Engine Specifications:
- Industrial Diesel Engine
- Cylinders: 3
- Maximum Power: 21 kW
- Maximum Torque: 67 Nm @ 2400 RPM
- Rated Speed: 3000 RPM
- Minimum Power: 14.7 kW
- Emissions: ECE R96 IIIA
- Cycle: 4 Stroke
- Bore: 3.04 in / 77 mm
- Stroke: 3.19 in / 81 mm
- Displacement: 1.1 L
- Compression Ratio: 23.0:1
- Aspiration: Natural
- Combustion System: Indirect Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 19.34 in / 491 mm
- Width: 15.75 in / 400 mm
- Height: 22.68 in / 576 mm
- Dry Weight: 211.664 lbs / 96 kg
