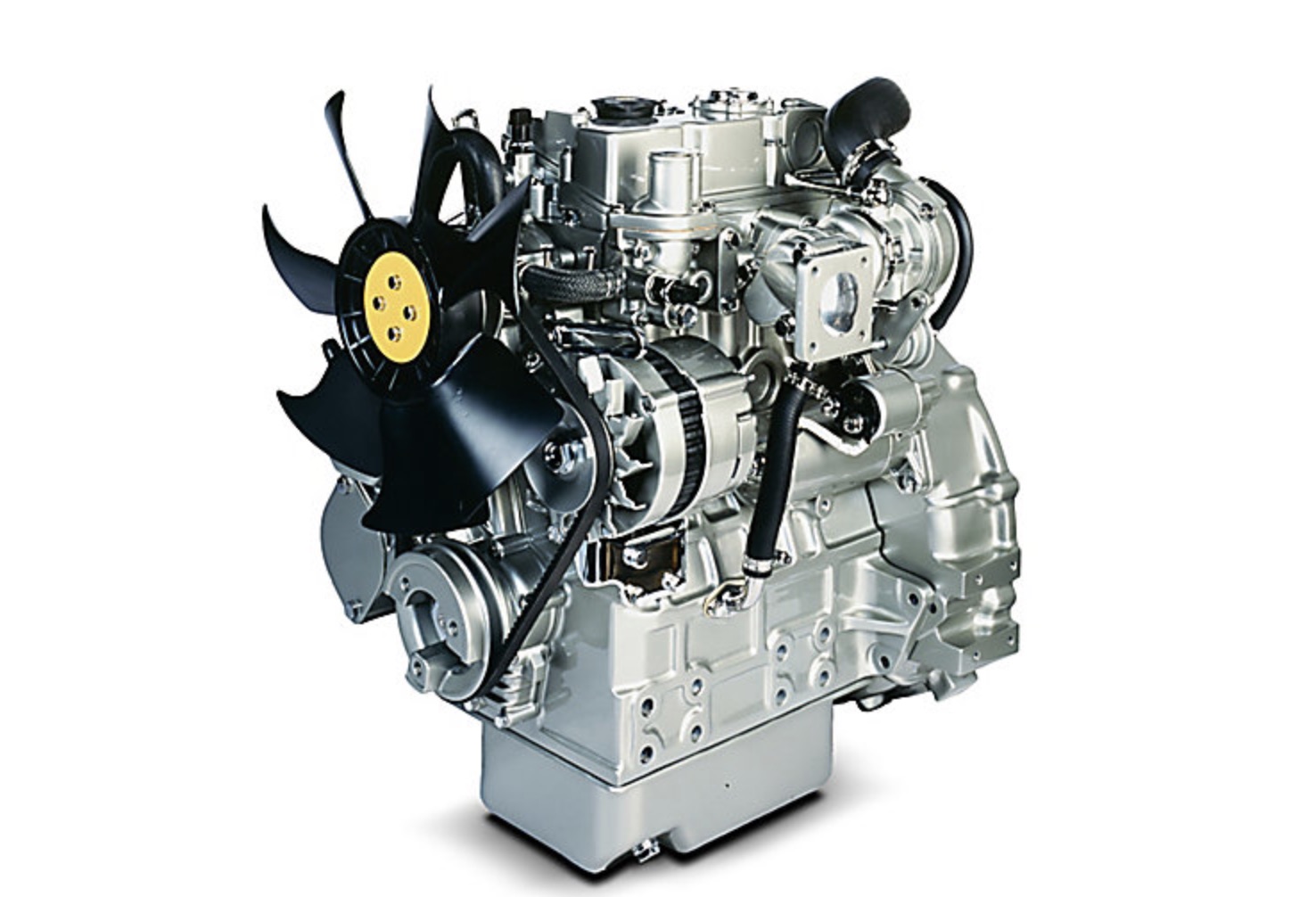

Perkins 403D-15T Industrial Diesel Engine
FD-403D-15T-PNR
Perkins 400 Series
GL Builds
The Perkins 403D-15T Industrial Engine provides high-torque, versatile mechanical power engineered to fit seamlessly into existing machinery like tractors, excavators, and construction equipment. It is a 3 Cylinder Perkins 400 Series Engine with Turbocharged Aspiration, 1.5 L Displacement, Indirect Injection. ECE R96 IIIA Emissions Standards. Please Call or fill out a Quote Form with your Build List, Serial number, or Engine Model & Application today. It ships as a fully dressed engine including a complete fuel system, 12V starter and alternator, water pump, flywheel, and flyweel housing.

Price:
$8,800.00
Core Charge:
$2,000.00
Engine Specifications:
- Industrial Diesel Engine
- Cylinders: 3
- Maximum Power: 30 kW
- Maximum Torque: 111.8 Nm @ 1800 RPM
- Rated Speed: 3000 RPM
- Minimum Power: 27.3 kW
- Emissions: ECE R96 IIIA
- Cycle: 4 Stoke
- Bore: 3.31 in / 84 mm
- Stroke: 3.55 in / 90 mm
- Displacement: 1.5 L
- Compression Ratio: 22.5:1
- Aspiration: Turbocharged
- Combustion System: Indirect Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 22.52 in / 572 mm
- Width: 20.16 in / 512 mm
- Height: 25.32 in / 643 mm
- Dry Weight: 356.05 lbs / 161.5 kg
