Perkins New Replacement Engine

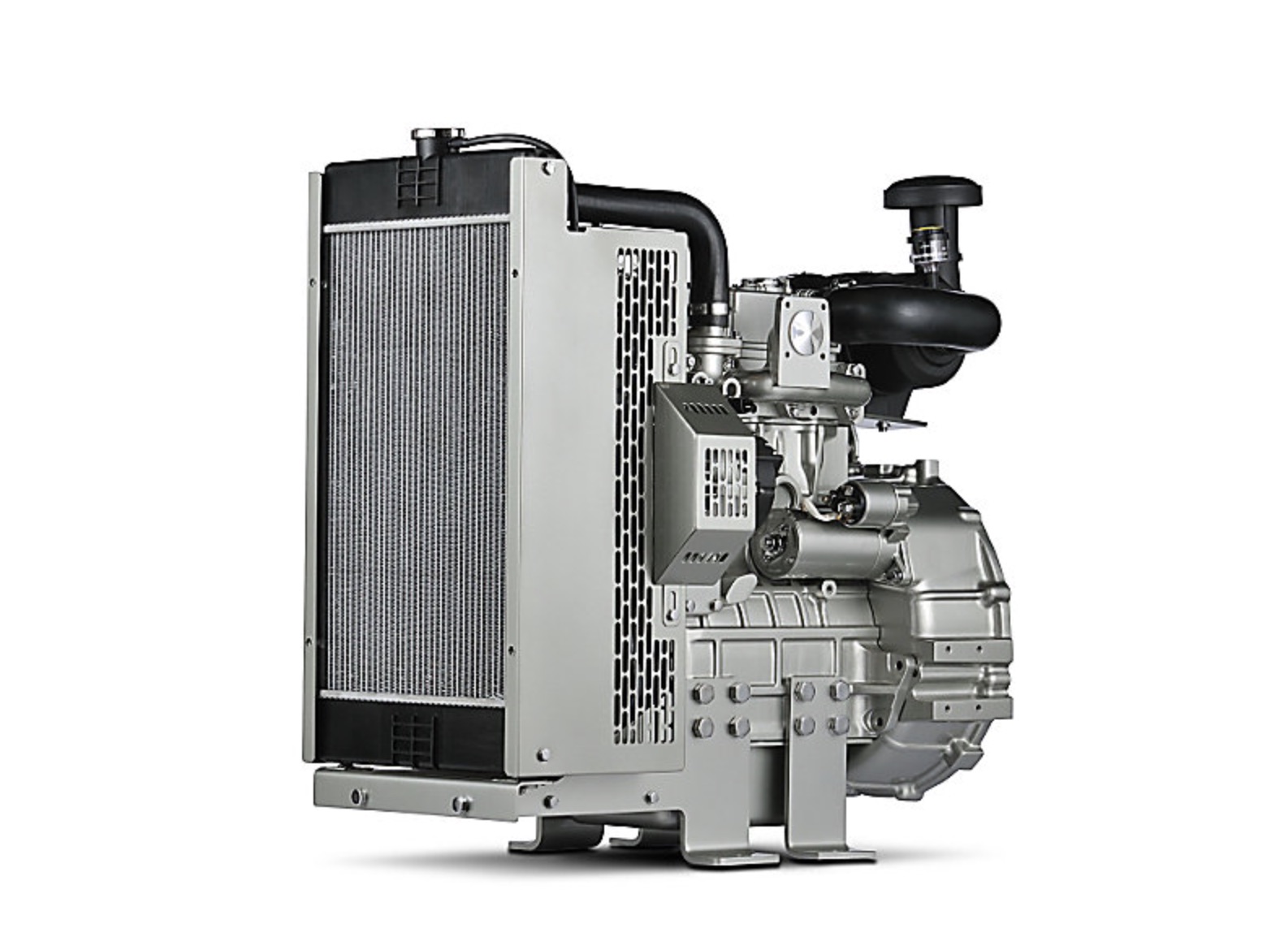

Perkins 403D-07G Diesel Genset Engine
FD-403D-07G-PNR
Perkins 400 Series
This Perkins 403D-07G Diesel Genset Engine is a 3 Cylinder, Perkins 400 Series, Natural, 0.76 L Displacement Diesel Engine with Indirect Injection that is built to fit Diesel Generator Sets. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today. It ships as a fully dressed engine including: Complete fuel system, 12V starter and alternator, water pump, flywheel, and housing.
Engine Specifications:
- Diesel Genset Engine
- Cylinders: 3
- Rated Speed: 1500/1800/3000 RPM
- Emissions: EU Stage IIIA/U.S. EPA Tier 3
- Bore: 2.64 in / 67 mm
- Stroke: 2.84 in / 72 mm
- Displacement: 0.76 L
- Compression Ratio: 23.5:1
- Aspiration: Natural
- Combustion System: Indirect Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 25.4 in / 645 mm
- Width: 17.41 in / 442 mm
- Height: 24.81 in / 630 mm
- Dry Weight: 191.802 lbs / 87 kg
- Gross Mechanical Output: 5.5-7.4 kWm
- Typical Electrical Output: 5.6-7.7 kVA (4.5-6.1 kWe)
- Alternator Efficiency: 83.2-84.3%
- Switchable: No
