Perkins New Replacement Engine

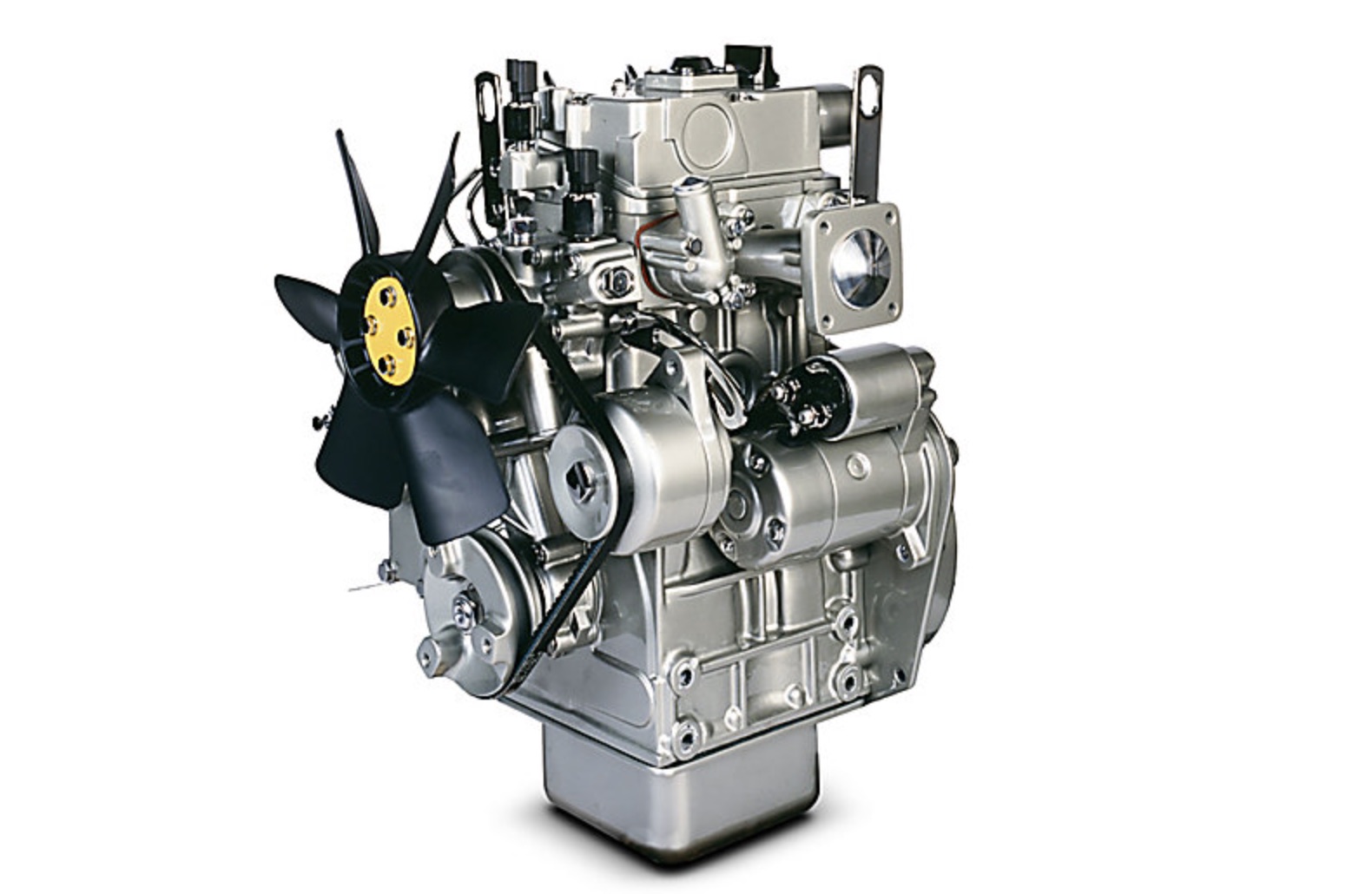

Perkins 402D-05G Diesel Genset Engine
FD-402D-05G-PNR
Perkins 400 Series
This Perkins 402D-05G Diesel Genset Engine is a 2 Cylinder, Perkins 400 Series, Natural, 0.51 L Displacement Diesel Engine with Indirect Injection that is built to fit Diesel Generator Sets. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today. It ships as a fully dressed engine including: Complete fuel system, 12V starter and alternator, water pump, flywheel, and housing.
Engine Specifications:
- Diesel Genset Engine
- Cylinders: 2
- Rated Speed: 1800 RPM
- Emissions: EU Stage IIIA/U.S. EPA Tier 3
- Bore: 2.64 in / 67 mm
- Stroke: 2.92 in / 74 mm
- Displacement: 0.51 L
- Compression Ratio: 23.5:1
- Aspiration: Natural
- Combustion System: Indirect Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 22.49 in / 571 mm
- Width: 17.41 in / 442 mm
- Height: 24.61 in / 625 mm
- Dry Weight: 160.937 lbs / 73 kg
- Gross Mechanical Output: 4.6-5.1 kWm
- Typical Electrical Output: 4.8-5.3 kVA (3.9-4.2 kWe)
- Alternator Efficiency: 84.70%
- Switchable: No
