Perkins New Replacement Engine

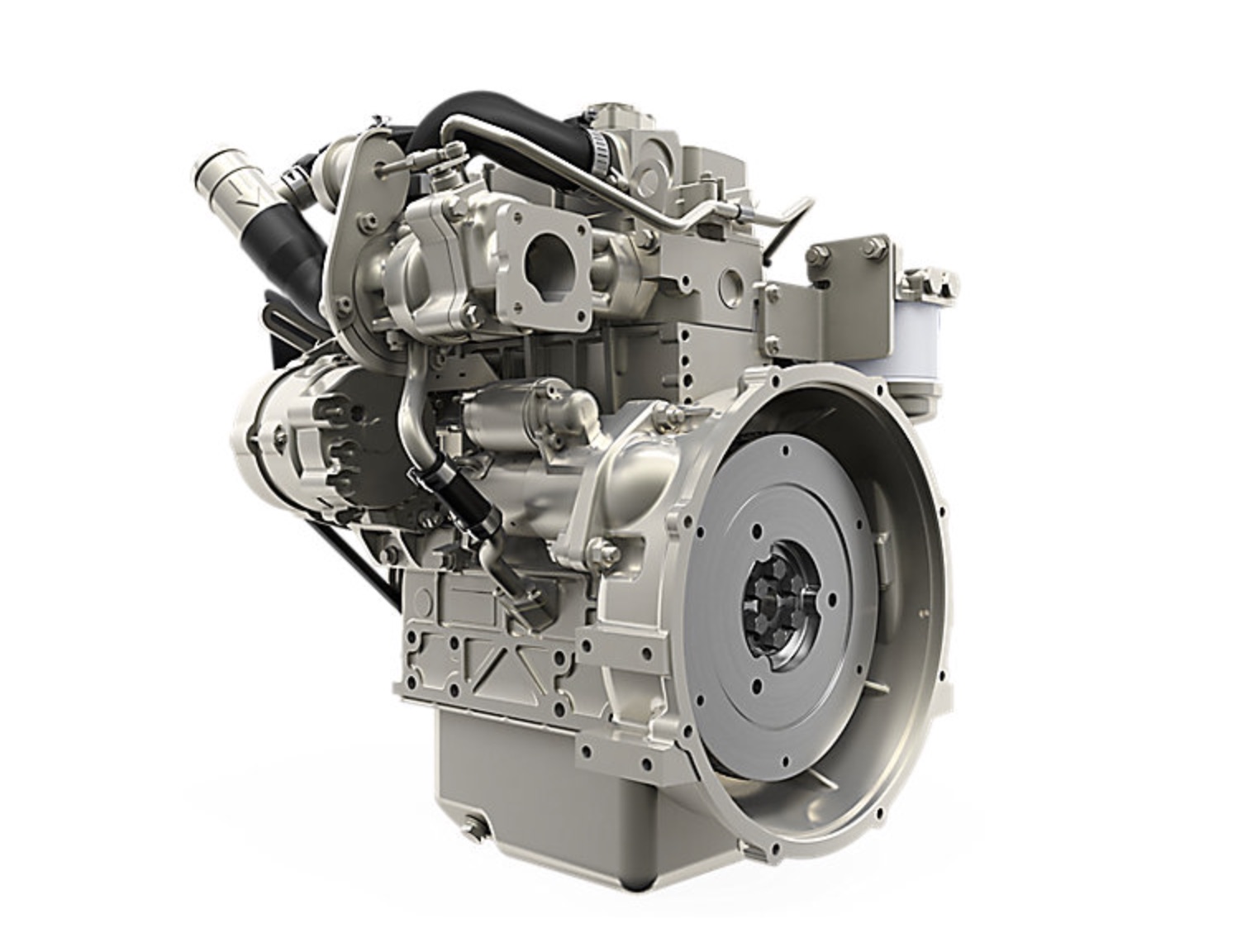

Perkins 403J-11T Industrial Diesel Engine
FD-403J-11T-PNR
Perkins 400 Series
Can Replace (Please call with arrangement number):
Caterpillar 3011/C11 Turbo
This Perkins 403J-11T Industrial Diesel Engine is a 3 Cylinder, Perkins 400 Series, Turbocharged, 1.1 L Displacement Diesel Engine with Indirect Injection that is built for Industrial Diesel Machinery. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today.
Engine Specifications:
- Industrial Diesel Engine
- Cylinders: 3
- Maximum Power: 18.4 kW
- Maximum Torque: 86 Nm @ 1600 RPM
- Rated Speed: 2800 RPM
- Minimum Power: 18.4 kW
- Emissions: EU Stage V
- Cycle: 4 Stroke
- Bore: 77 mm
- Stroke: 81 mm
- Displacement: 1.1 L
- Compression Ratio: 22.1:1
- Aspiration: Turbocharged
- Combustion System: Indirect Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 500 mm
- Width: 513 mm
- Height: 588 mm
- Dry Weight: 108 kg
