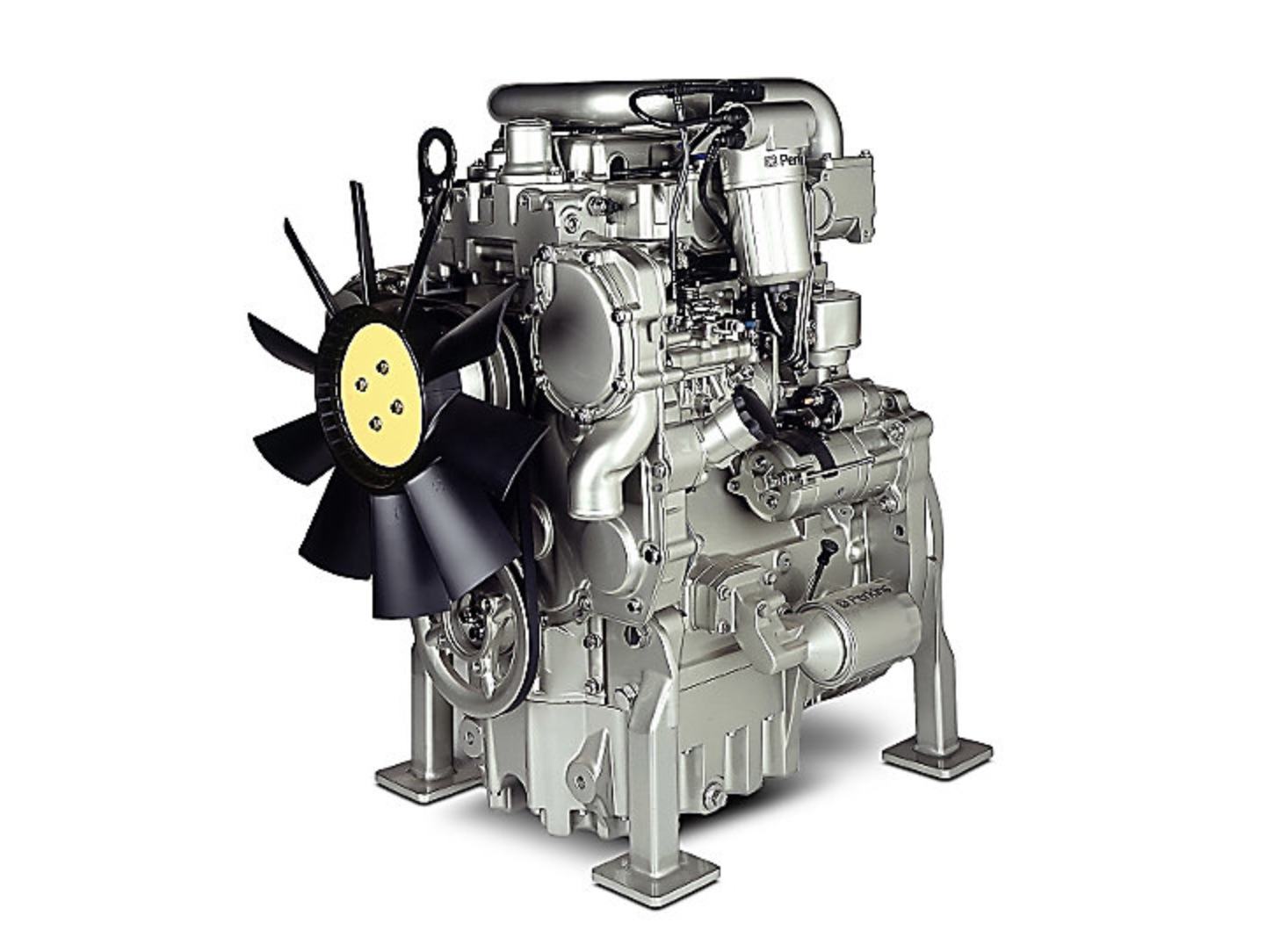

Perkins 1103C-33T Industrial Diesel Engine
FD-1103C-33T-PNR
Perkins 1100 Series
DD Builds
The Perkins 1103C-33T Industrial Engine provides high-torque, versatile mechanical power engineered to fit seamlessly into existing machinery like tractors, excavators, and construction equipment. It is a 3 Cylinder Perkins 1100 Series Engine with Turbocharged Aspiration, 3.3 L Displacement, Direct Injection. EU Stage II/U.S. EPA Tier 2 Emissions Standards. Please Call or fill out a Quote Form with your Build List, Serial number, or Engine Model & Application today. It ships as a fully dressed engine including a complete fuel system, 12V starter and alternator, water pump, flywheel, and flyweel housing.

Price:
$11,000.00
Core Charge:
$2,000.00
Engine Specifications:
- Industrial Diesel Engine
- Cylinders: 3
- Maximum Power: 55 kW
- Maximum Torque: 291 Nm @ 1400 RPM
- Rated Speed: 2200 RPM
- Minimum Power: 55 kW
- Emissions: EU Stage II/U.S. EPA Tier 2
- Cycle: 4 Stroke
- Bore: 4.14 in / 105 mm
- Stroke: 5 in / 127 mm
- Displacement: 3.3 L
- Compression Ratio: 18.2:1
- Aspiration: Turbocharged
- Combustion System: Direct Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 21.5 in / 546 mm
- Width: 23.08 in / 586 mm
- Height: 32.52 in / 826 mm
- Dry Weight: 650.364 lbs / 295 kg
