Perkins New Replacement Engine
Perkins 1103D-33TA Industrial Diesel Engine
FD-1103D-33TA-PNR
Perkins 1100 Series
DE Builds

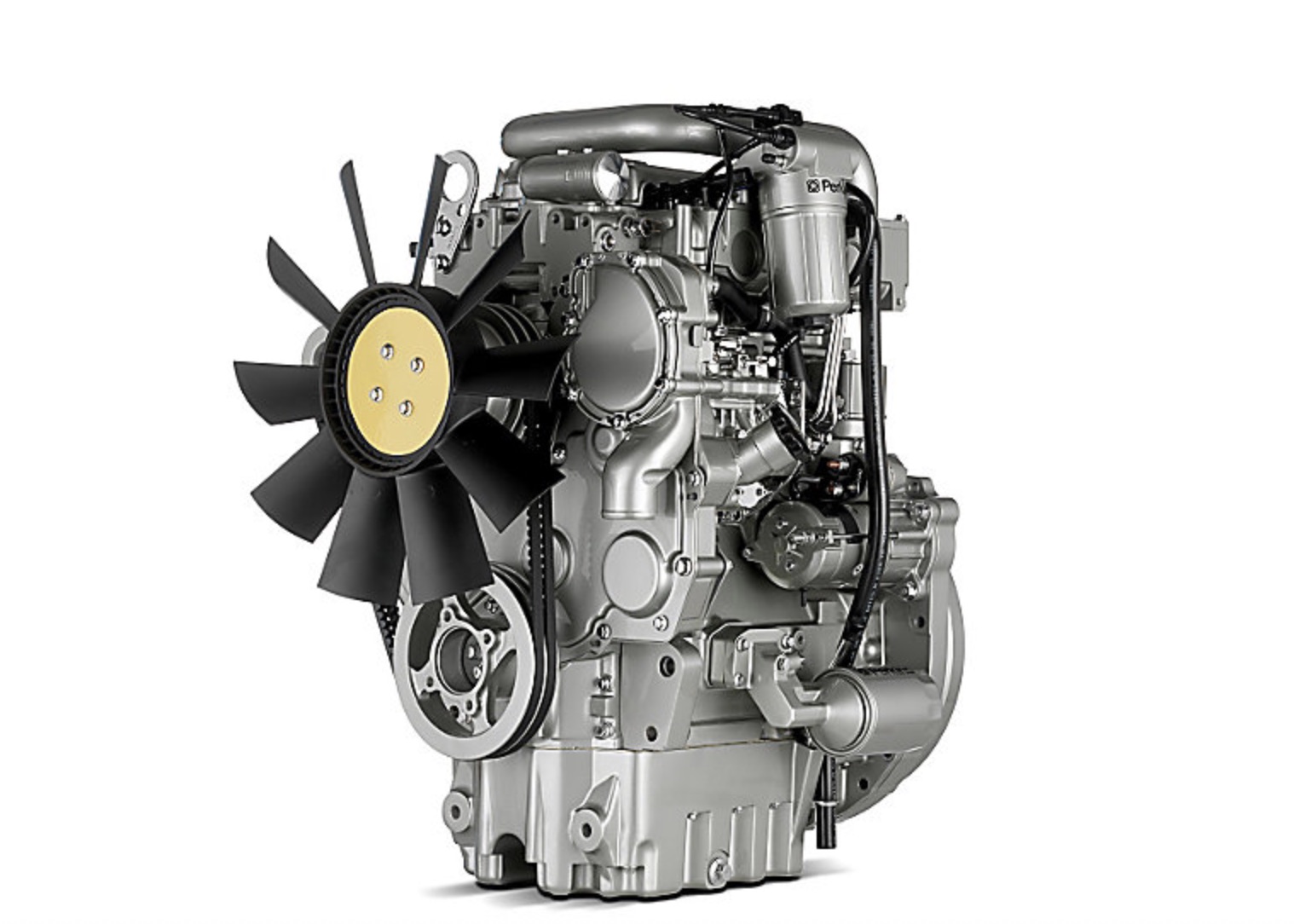

This Perkins 1103D-33TA Industrial Diesel Engine is a 3 Cylinder, Perkins 1100 Series, Turbocharged Aftercooled, 3.3 L Displacement Diesel Engine with Direct Injection that is built for Industrial Diesel Machinery. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today. It ships as a fully dressed engine including: Complete fuel system, 12V starter and alternator, water pump, flywheel, and housing.
Engine Specifications:
- Industrial Diesel Engine
- Cylinders: 3
- Maximum Power: 58 kW
- Maximum Torque: 310 Nm @ 1400 RPM
- Rated Speed: 2200 RPM
- Minimum Power: 47 kW
- Emissions: UN ECE R96 Stage IIIA
- Cycle: 4 Stroke
- Bore: 4.14 in / 105 mm
- Stroke: 5 in / 127 mm
- Displacement: 3.3 L
- Compression Ratio: 18.23:1
- Aspiration: Turbocharged Aftercooled
- Combustion System: Direct Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 21.5 in / 546 mm
- Width: 23.08 in / 586 mm
- Height: 32.52 in / 826 mm
- Dry Weight: 608.478 lbs / 276 kg
