Perkins New Replacement Engine

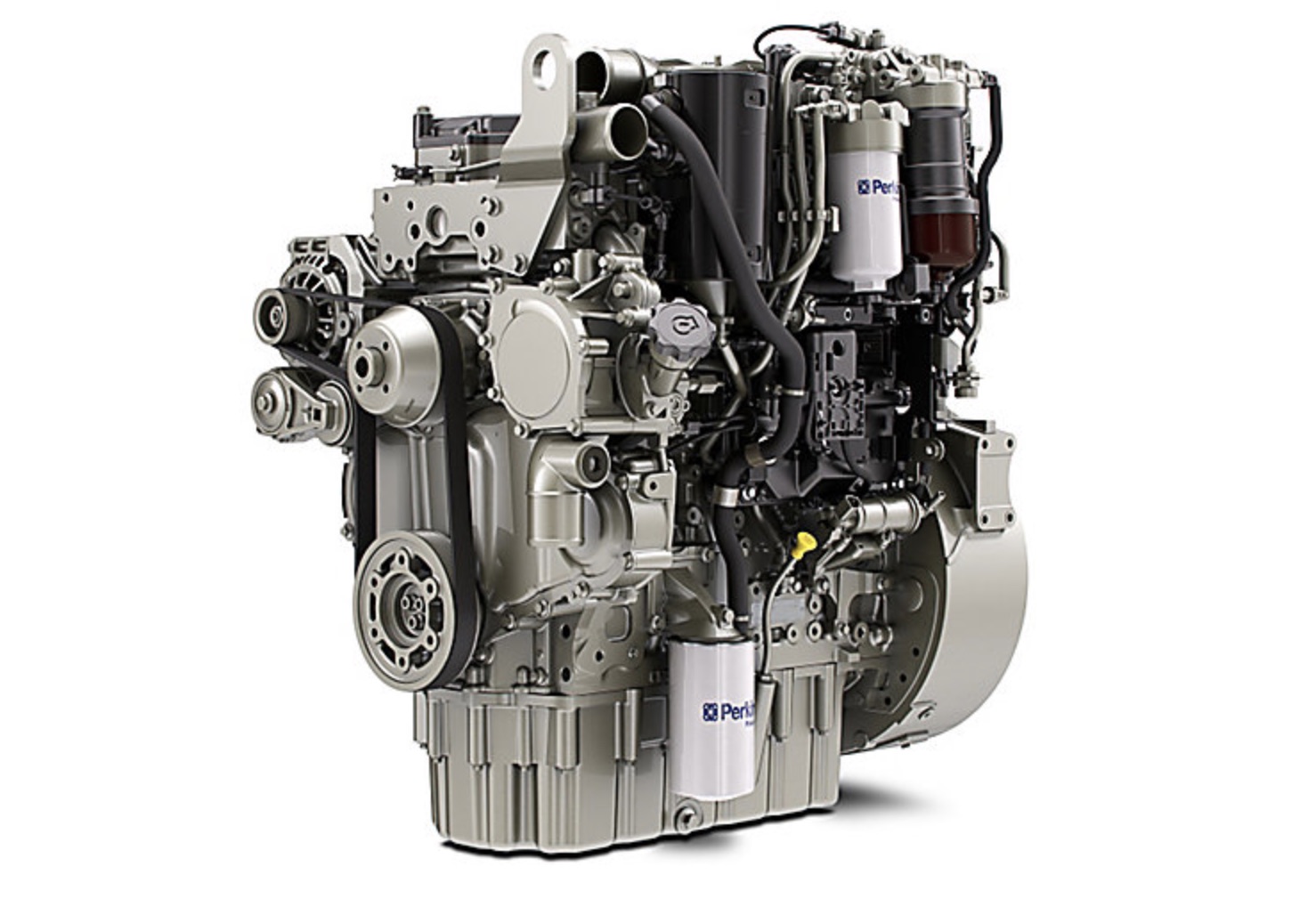

Perkins 1204J-E44TTA Industrial Diesel Engine
FD-1204J-E44TTA-PNR
Perkins 1200 Series
Can Replace (Please call with arrangement number):
Caterpillar C6.6 Twin Turbo Aftercooled
This Perkins 1204J-E44TTA Industrial Diesel Engine is a 4 Cylinder, Perkins 1200 Series, Twin Turbo Aftercooled, 4.4 L Displacement Diesel Engine with Direct Injection that is built for Industrial Diesel Machinery. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today.
Engine Specifications:
- Industrial Diesel Engine
- Cylinders: 4
- Maximum Power: 150 kW
- Maximum Torque: 825 Nm @ 1400 RPM
- Rated Speed: 2200 RPM
- Minimum Power: 112 kW
- Emissions: EU Stage V, U.S. EPA Tier 4 Final
- Cycle: 4 Stroke
- Bore: 105 mm
- Stroke: 127 mm
- Displacement: 4.4 L
- Compression Ratio: 16.5:1
- Aspiration: Twin Turbo Aftercooled
- Combustion System: Direct Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 822 mm
- Width: 748 mm
- Height: 897 mm
- Dry Weight: 535 kg
