Perkins New Replacement Engine
Perkins 404D-22TG Diesel Genset Engine
FD-404D-22TG-PNR
Perkins 400 Series

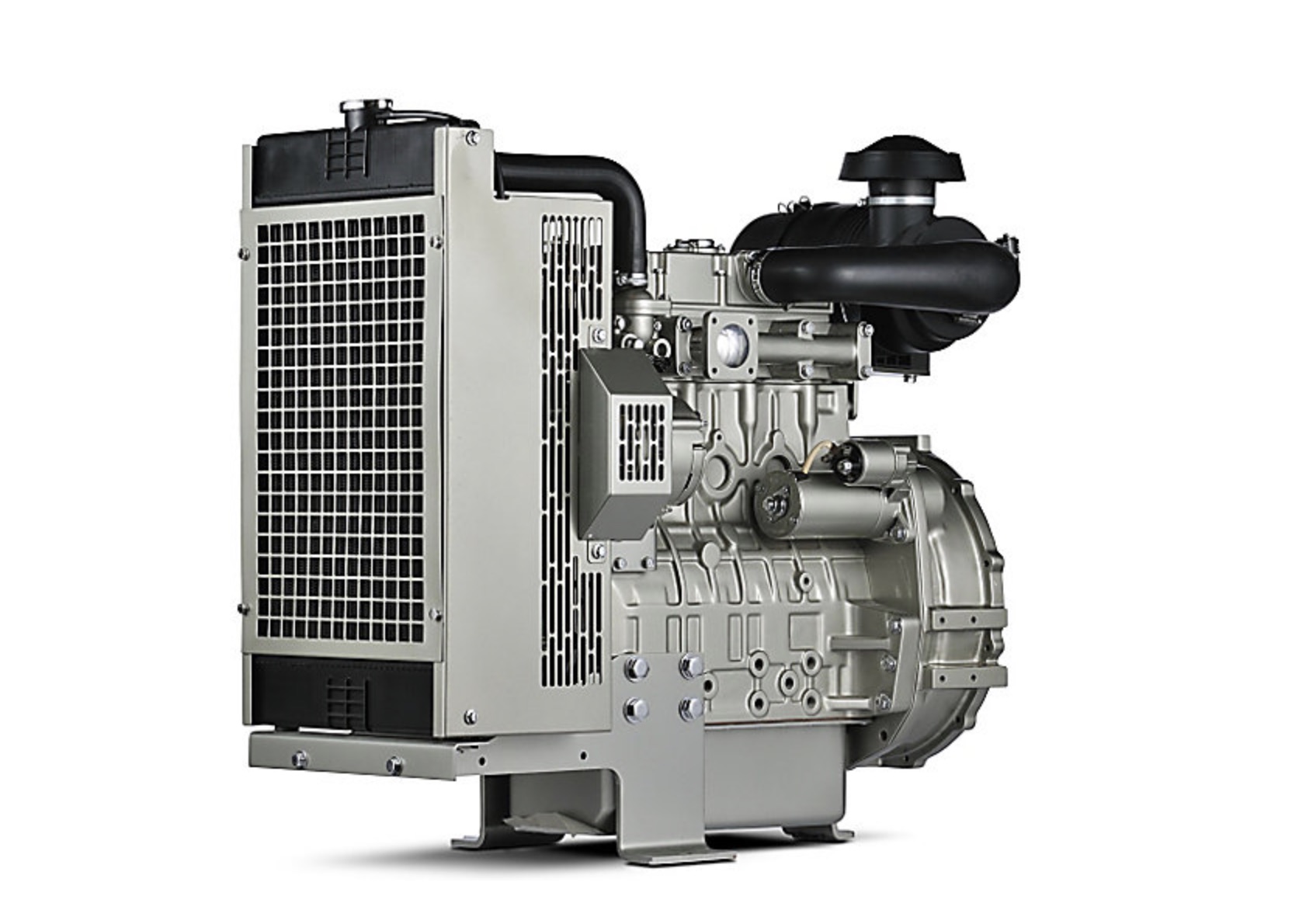

This Perkins 404D-22TG Diesel Genset Engine is a 4 Cylinder, Perkins 400 Series, Turbocharged, 2.2 L Displacement Diesel Engine with Indirect Injection that is built to fit Diesel Generator Sets. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today.
Engine Specifications:
- Diesel Genset Engine
- Cylinders: 4
- Rated Speed: 1500/1800 RPM
- Emissions: EU Stage IIIA/U.S. EPA Tier 4 interim
- Bore: 84 mm
- Stroke: 100 mm
- Displacement: 2.2 L
- Compression Ratio: 23.3:1
- Aspiration: Turbocharged
- Combustion System: Indirect Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 973 mm
- Width: 590 mm
- Height: 973 mm
- Dry Weight: 242 kg
- Gross Mechanical Output: 33.3 kWm
- Typical Electrical Output: 27-36 kVA (22-29 kWe)
- Alternator Efficiency: 88-89%
- Switchable: Yes
