Perkins New Replacement Engine

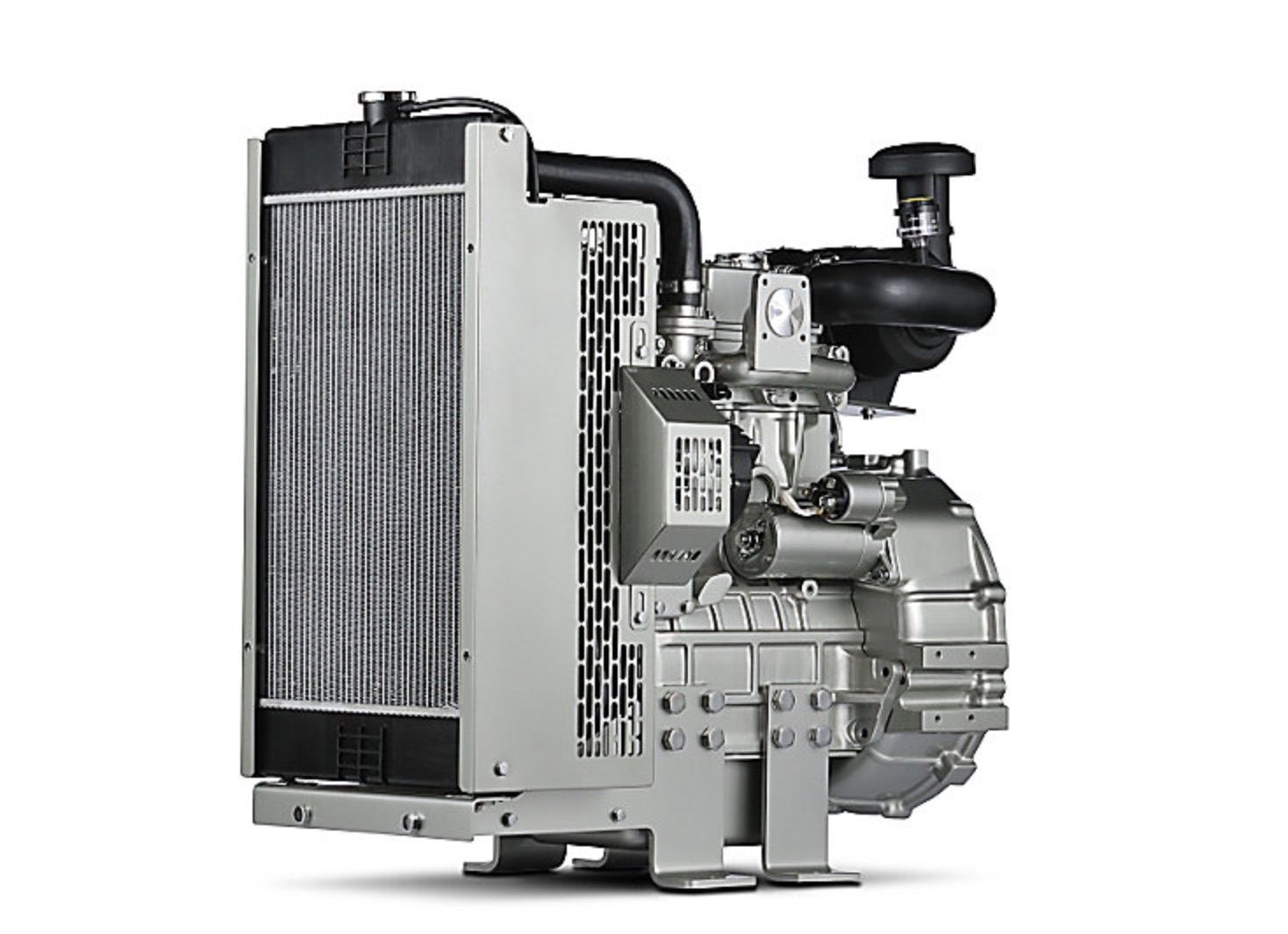

Perkins 403F-11G Diesel Genset Engine
FD-403F-11G-PNR
Perkins 400 Series
This Perkins 403F-11G Diesel Genset Engine is a 3 Cylinder, Perkins 400 Series, Natural, 1.1 L Displacement Diesel Engine with Mechanical Indirect Injection that is built to fit Diesel Generator Sets. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today.
Engine Specifications:
- Diesel Genset Engine
- Cylinders: 3
- Rated Speed: 1800 RPM
- Emissions: U.S. EPA Tier 4 Final
- Bore: 77 mm
- Stroke: 81 mm
- Displacement: 1.1 L
- Compression Ratio: 23.0:1
- Aspiration: Natural
- Combustion System: Mechanical Indirect Injection
- Rotation: Counter-Clockwise
- Cooling System: Watercooled
- Length: 754 mm
- Width: 437 mm
- Height: 702 mm
- Dry Weight: 129 kg
- Gross Mechanical Output: 8.9-9.8 kWm
- Typical Electrical Output: 9.2-10.2 kVA (7.4-8.2 kWe)
- Alternator Efficiency: 87%
- Switchable: No
