Perkins New Replacement Engine

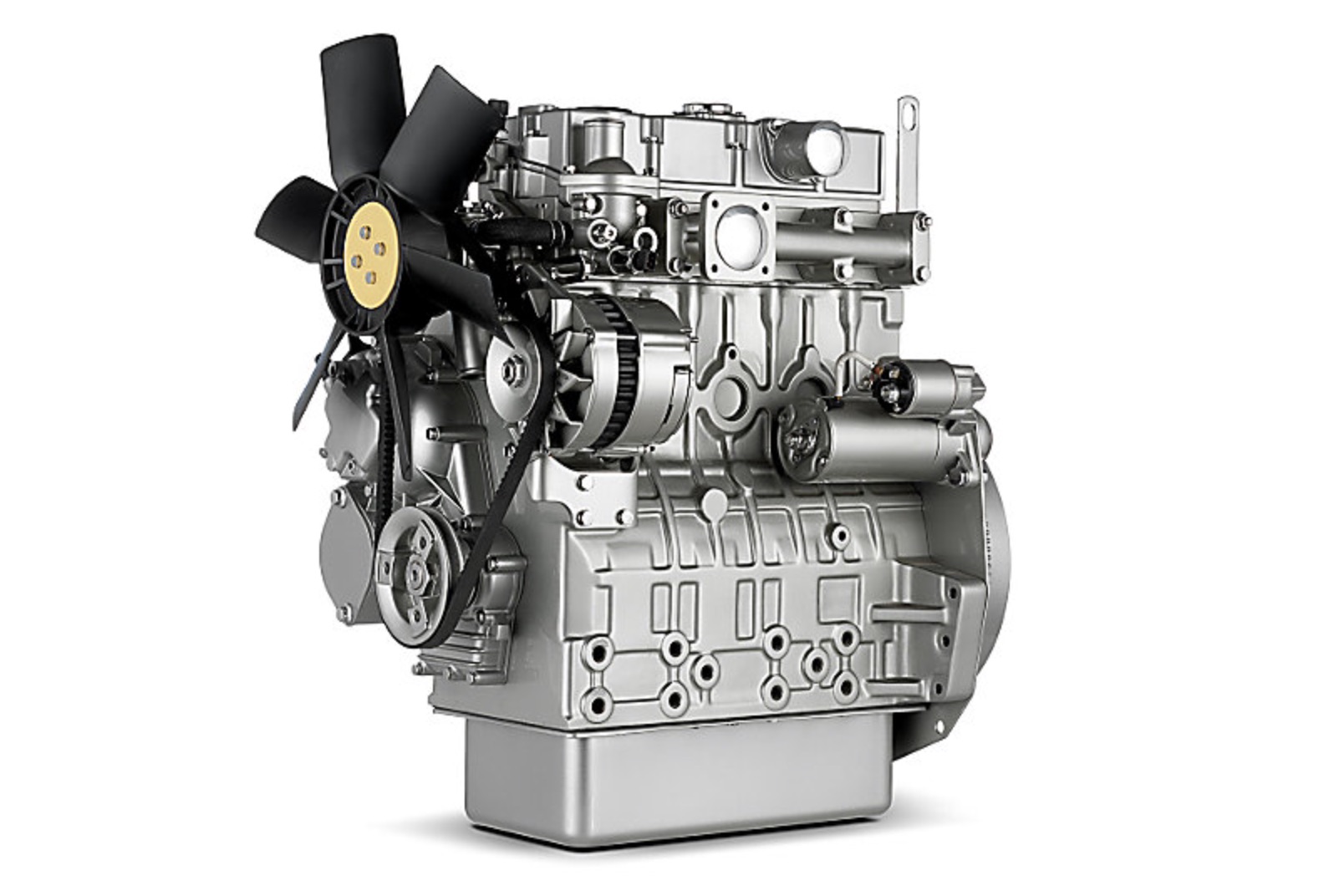

Perkins 404D-22 Industrial Diesel Engine
FD-404D-22-PNR
Perkins 400 Series
GN Builds
Can Replace (Please call with arrangement number):
Caterpillar 3024/C2.2
This Perkins 404D-22 Industrial Diesel Engine is a 4 Cylinder, Perkins 400 Series, Natural, 2.2 L Displacement Diesel Engine with Indirect Injection that is built for Industrial Diesel Machinery. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today.
Engine Specifications:
- Industrial Diesel Engine
- Cylinders: 4
- Maximum Power: 38 kW
- Maximum Torque: 142.7 Nm @ 1800 rpm
- Rated Speed: 2200-3000 RPM
- Minimum Power: 31 kW
- Emissions: EU Stage IIIA/U.S. EPA Tier 4 interim
- Cycle: 4 stroke
- Bore: 84 mm
- Stroke: 100 mm
- Displacement: 2.2 L
- Compression Ratio: 23.3:1
- Aspiration: Natural
- Combustion System: Indirect Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 661 mm
- Width: 464 mm
- Height: 676 mm
- Dry Weight: 184 kg
