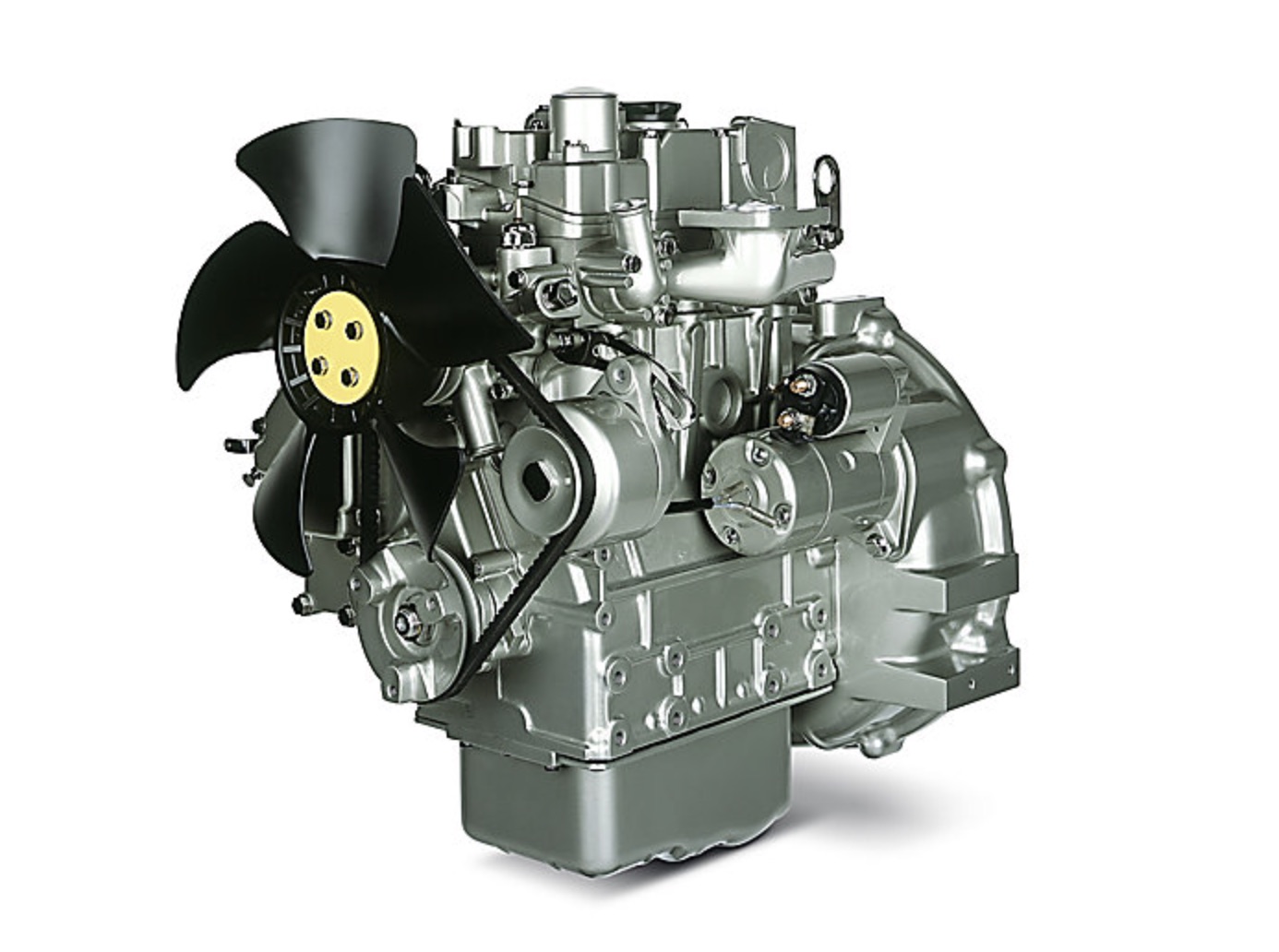

Perkins New Replacement Engine
403J-07
Perkins 400 Series
Engine Specifications:
- Industrial Diesel Engine
- Cylinders: 3
- Maximum Power: 13.3 kW
- Maximum Torque: 44 Nm @ 2400 RPM
- Rated Speed: 2200-3600 RPM
- Minimum Power: 9 kW
- Emissions: EU Stage V
- Cycle: 4 Stroke
- Bore: 67 mm
- Stroke: 72 mm
- Displacement: 0.76 L
- Compression Ratio: 23.5:1
- Aspiration: Natural
- Combustion System: Indirect Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 480 mm
- Width: 371 mm
- Height: 528 mm
- Dry Weight: 71 kg
