Perkins New Replacement Engine

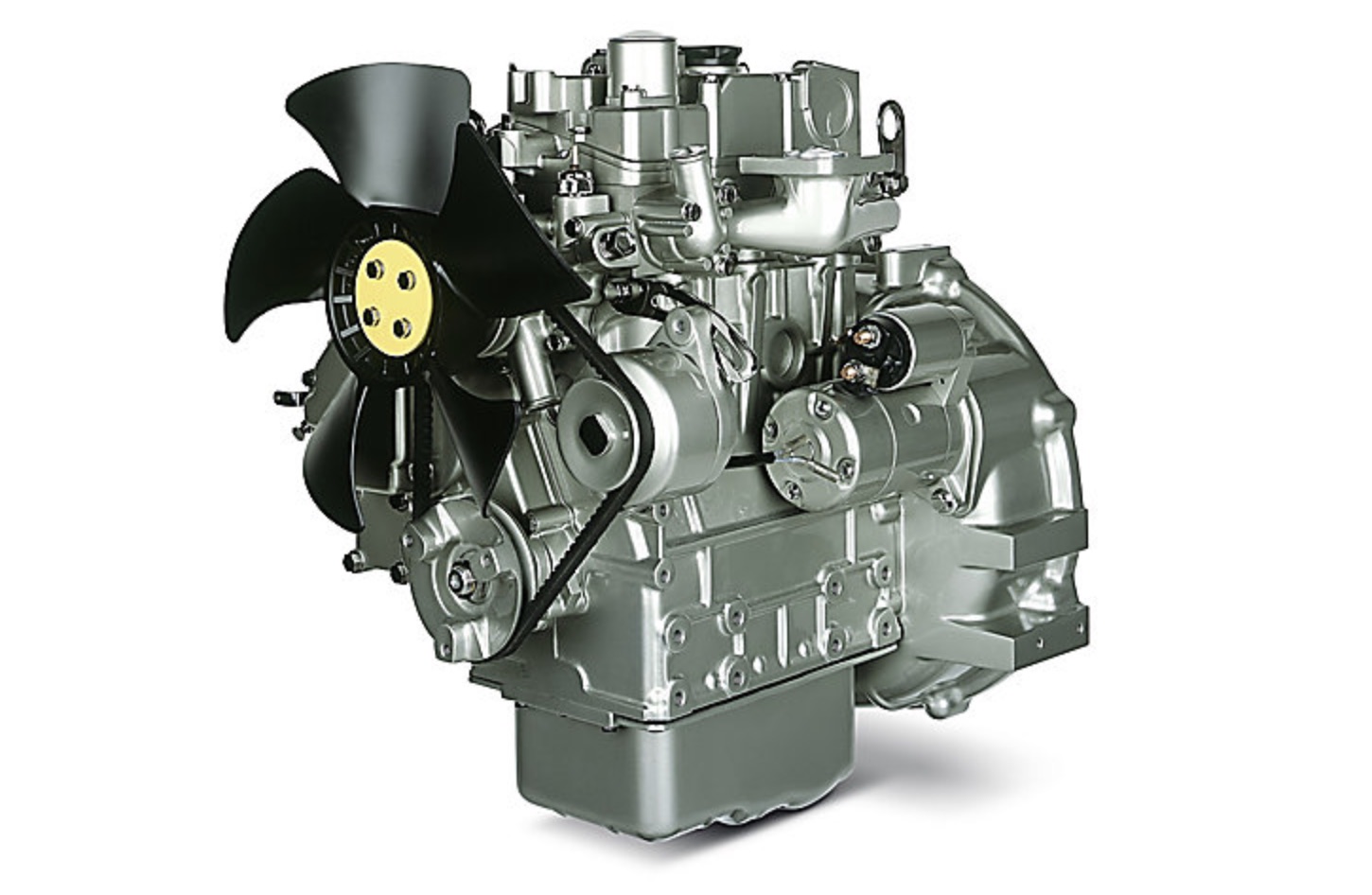

Perkins 403F-07 Industrial Diesel Engine
FD-403F-07-PNR
Perkins 400 Series
EH Builds
This Perkins 403F-07 Industrial Diesel Engine is a 3 Cylinder, Perkins 400 Series, Natural, 0.76 L Displacement Diesel Engine with Indirect Injection that is built for Industrial Diesel Machinery. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today. It ships as a fully dressed engine including: Complete fuel system, 12V starter and alternator, water pump, flywheel, and housing.
Engine Specifications:
- Industrial Diesel Engine
- Cylinders: 3
- Maximum Power: 8.8 kW
- Maximum Torque: 41 Nm @ 2000 RPM
- Rated Speed: 2200 RPM
- Minimum Power: 8.8 kW
- Emissions: U.S. EPA Tier 4 Final
- Cycle: 4 Stroke
- Bore: 2.64 in / 67 mm
- Stroke: 2.84 in / 72 mm
- Displacement: 0.76 L
- Compression Ratio: 23.5:1
- Aspiration: Natural
- Combustion System: Indirect Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 18.9 in / 480 mm
- Width: 14.61 in / 371 mm
- Height: 20. 79 in / 528 mm
- Dry Weight: 156.528 lbs / 71 kg
