Perkins New Replacement Engine

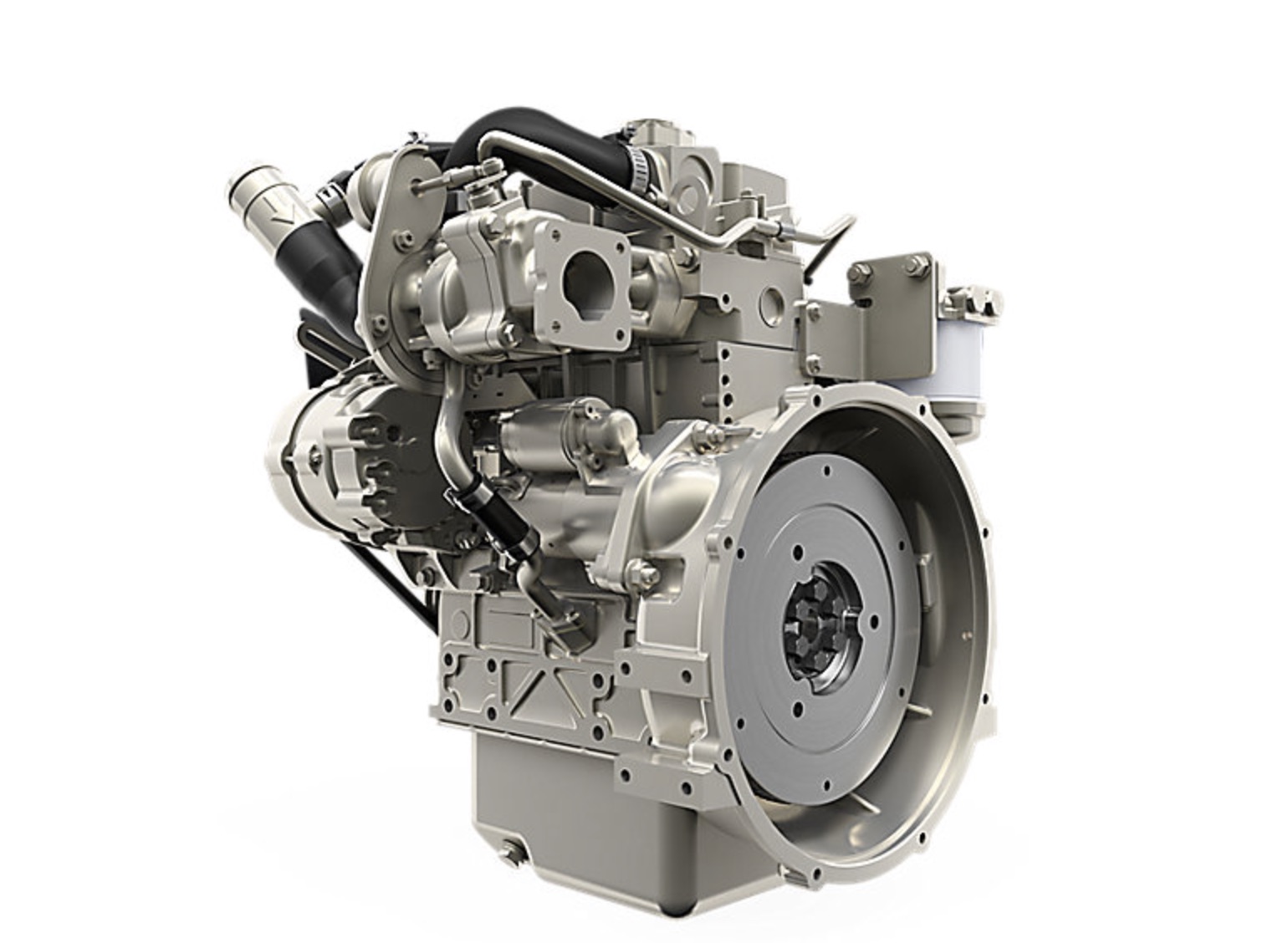

Perkins 403EA-11T Industrial Diesel Engine
FD-403EA-11T-PNR
Perkins 400 Series
This Perkins 403EA-11T Industrial Diesel Engine is a 3 Cylinder, Perkins 400 Series, Turbocharged, 1.1 L Displacement Diesel Engine with Indirect Injection that is built for Industrial Diesel Machinery. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today. It ships as a fully dressed engine including: Complete fuel system, 12V starter and alternator, water pump, flywheel, and housing.
Engine Specifications:
- Industrial Diesel Engine
- Cylinders: 3
- Maximum Power: 18.4 kW
- Maximum Torque: 86 Nm @ 1600 RPM
- Rated Speed: 2400 RPM
- Minimum Power: 18.4 kW
- Emissions: China Non-road IV
- Cycle: 4 Stroke
- Bore: 3.04 in / 77 mm
- Stroke: 3.19 in / 81 mm
- Displacement: 1.1 L
- Compression Ratio: 22.1:1
- Aspiration: Turbocharged
- Combustion System: Indirect Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 19.69 in / 500 mm
- Width: 20.2 in / 513 mm
- Height: 23.15 in / 588 mm
- Dry Weight: 238.099 lbs / 108 kg
