Perkins New Replacement Engine

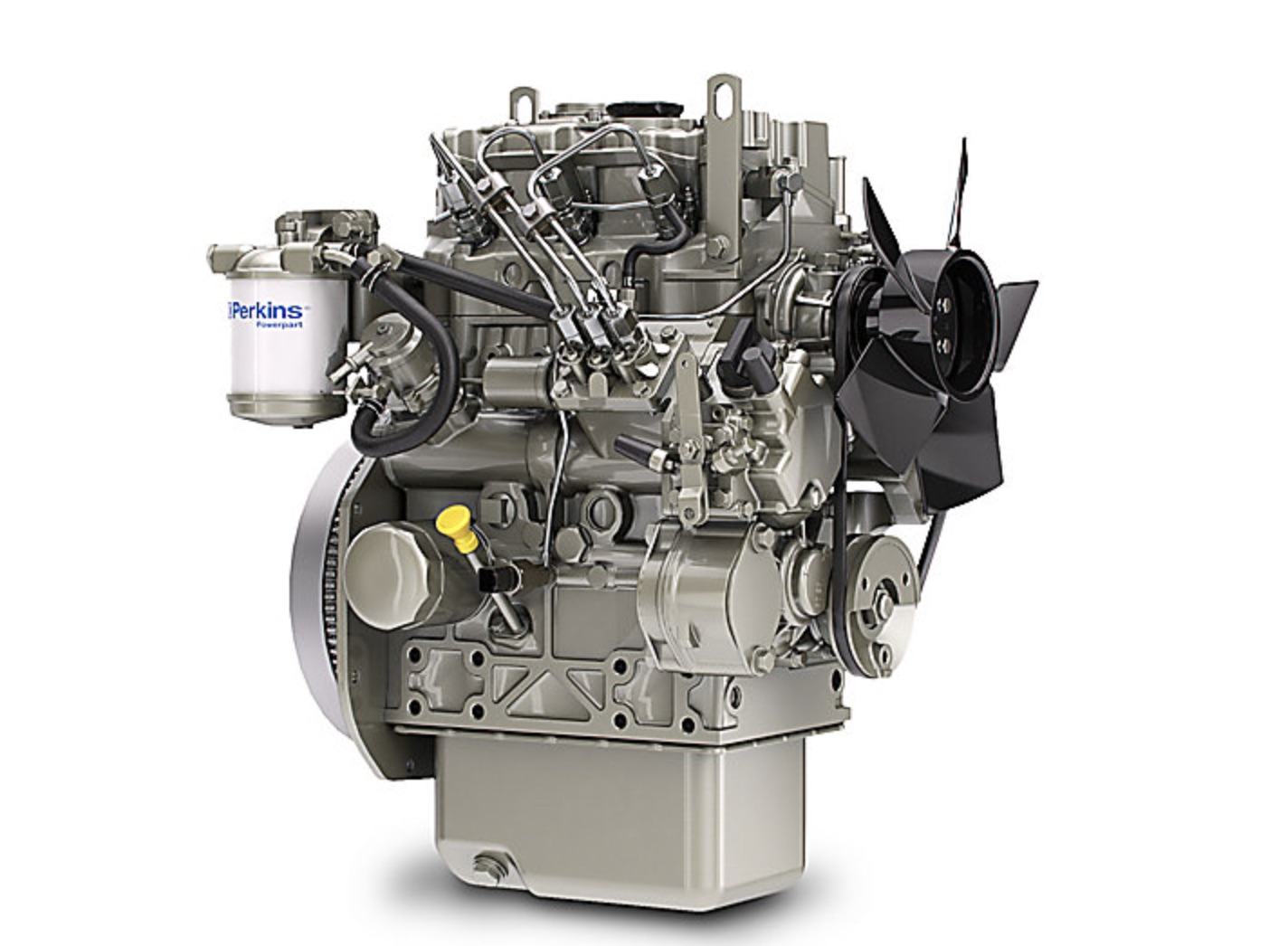

403J-11
Perkins 400 Series
Can Replace (Please call with arrangement number):
Caterpillar 3011/C11

Engine Specifications:
- Industrial Diesel Engine
- Cylinders: 3
- Maximum Power: 18.4 kW
- Maximum Torque: 66.8 Nm @ 2100 RPM
- Rated Speed: 2800 RPM
- Minimum Power: 14.7 kW
- Emissions: EU Stage V
- Cycle: 4 Stroke
- Bore: 77 mm
- Stroke: 81 mm
- Displacement: 1.1 L
- Compression Ratio: 23.0:1
- Aspiration: Natural
- Combustion System: Indirect Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 491 mm
- Width: 400 mm
- Height: 576 mm
- Dry Weight: 108 kg
