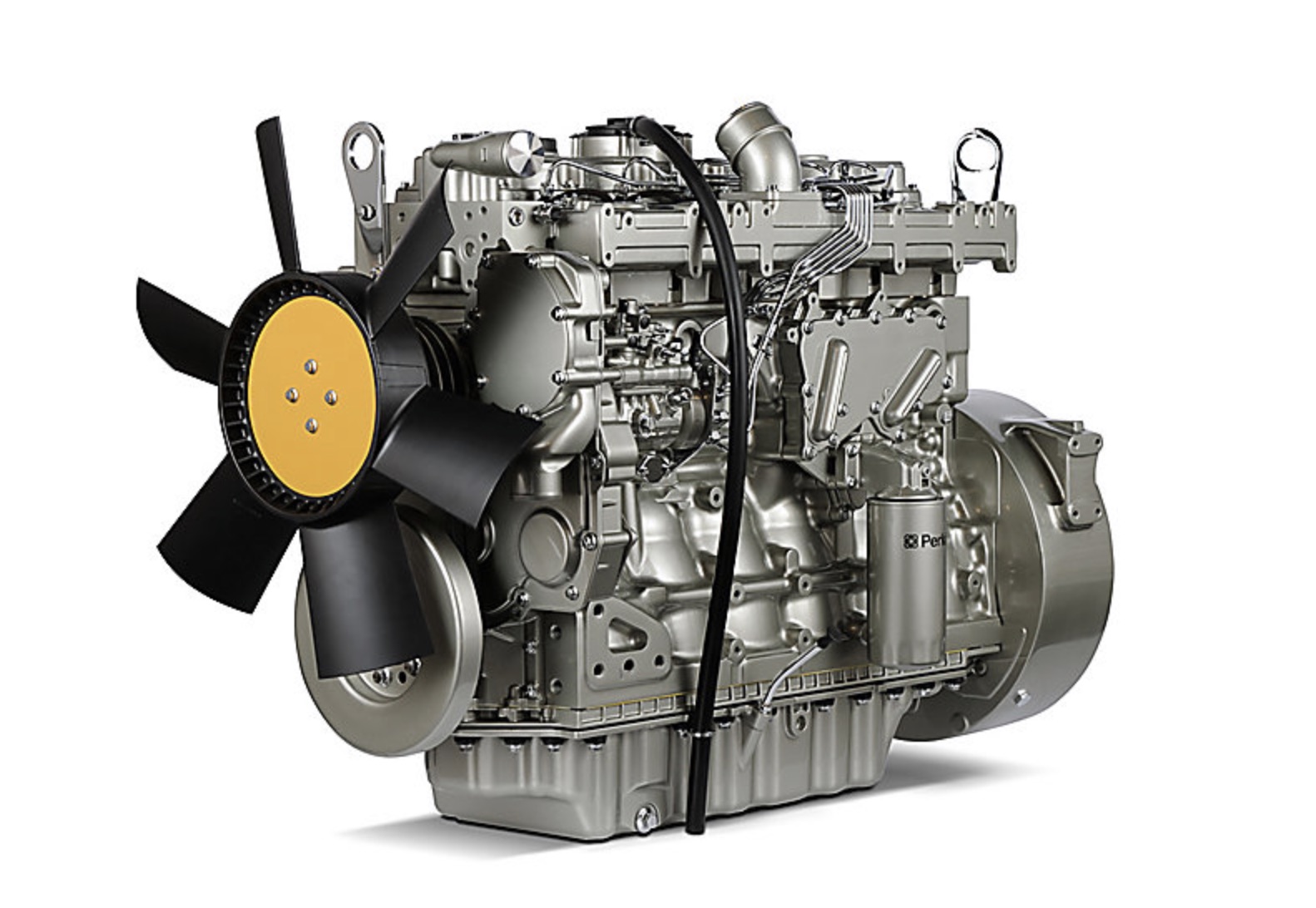

Perkins New Replacement Engine
1106C-70TA
Perkins 1100 Series
PT Builds
Can Replace (Please call with arrangement number):
Caterpillar 3056 Turbo Aftercooled
Engine Specifications:
- Industrial Diesel Engine
- Cylinders: 6
- Maximum Power: 162 kW
- Maximum Torque: 900 Nm @ 1400 RPM
- Rated Speed: 1950-2200 RPM
- Minimum Power: 112 kW
- Emissions: EU Stage II/U.S. EPA Tier 2
- Cycle: 4 Stroke
- Bore: 105 mm
- Stroke: 135 mm
- Displacement: 7.01 L
- Compression Ratio: 18.2:1
- Aspiration: Turbocharged Aftercooled
- Combustion System: Direct Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 1140 mm
- Width: 720 mm
- Height: 820 mm
- Dry Weight: 507 kg
