Perkins New Replacement Engine
Perkins 1106D-E70TA Industrial Diesel Engine
FD-1106D-E70TA-PNR
Perkins 1100 Series
PW Builds
Can Replace (Please call with arrangement number):
Caterpillar 3056/C6.6 Turbo Aftercooled

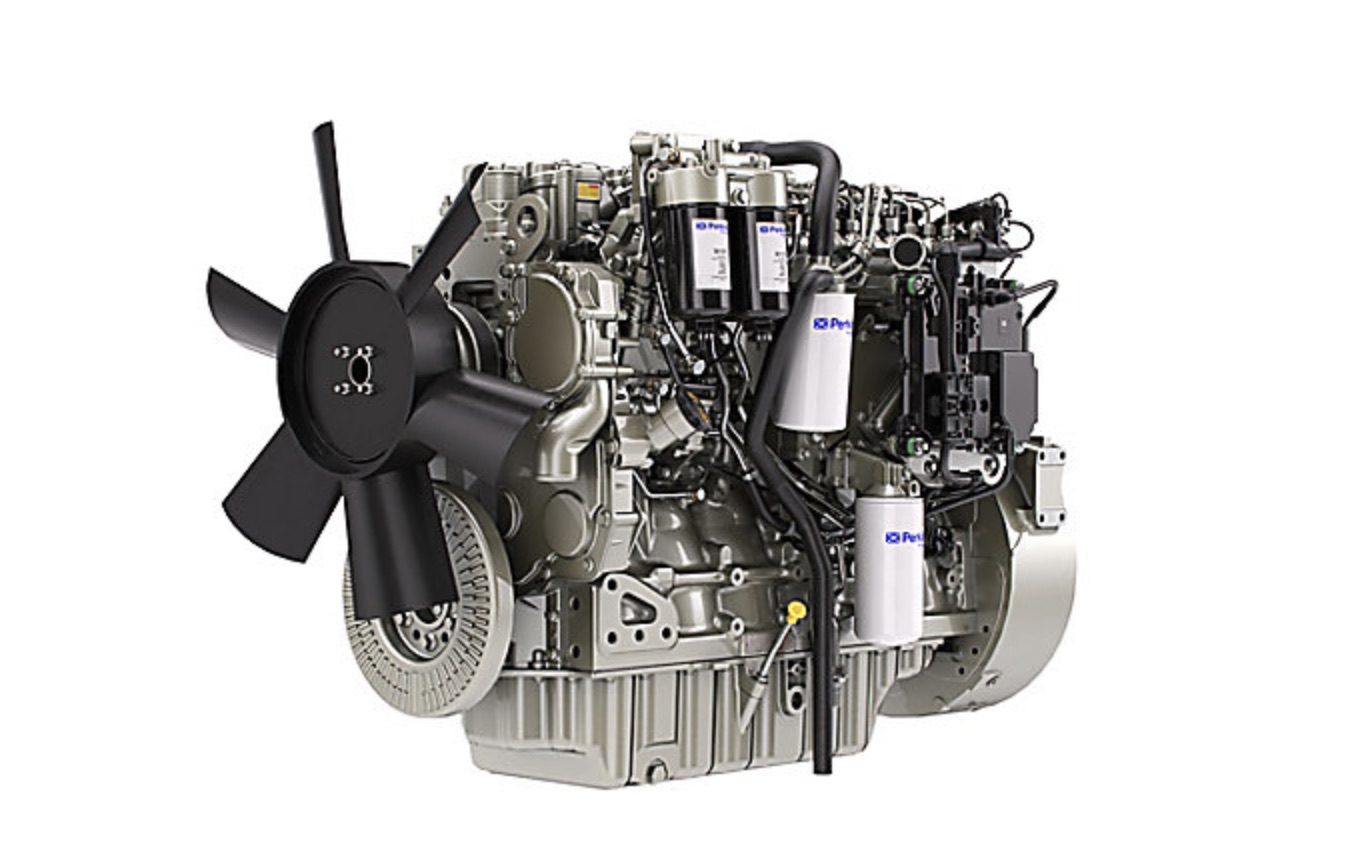

This Perkins 1106D-E70TA Industrial Diesel Engine is a 6 Cylinder, Perkins 1100 Series, Turbocharged Aftercooled, 7.01 L Displacement Diesel Engine with Direct Injection that is built for Industrial Diesel Machinery. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today.
Engine Specifications:
- Industrial Diesel Engine
- Cylinders: 6
- Maximum Power: 205 kW
- Maximum Torque: 1050 Nm @ 1400 RPM
- Rated Speed: 2200-2500 RPM
- Minimum Power: 116 kW
- Emissions: UN ECE R96 Stage IIIA
- Cycle: 4 Stroke
- Bore: 105 mm
- Stroke: 135 mm
- Displacement: 7.01 L
- Compression Ratio: 16.5:1
- Aspiration: Turbocharged Aftercooled
- Combustion System: Direct Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 929 mm
- Width: 668 mm
- Height: 817 mm
- Dry Weight: 506 kg
