Perkins New Replacement Engine

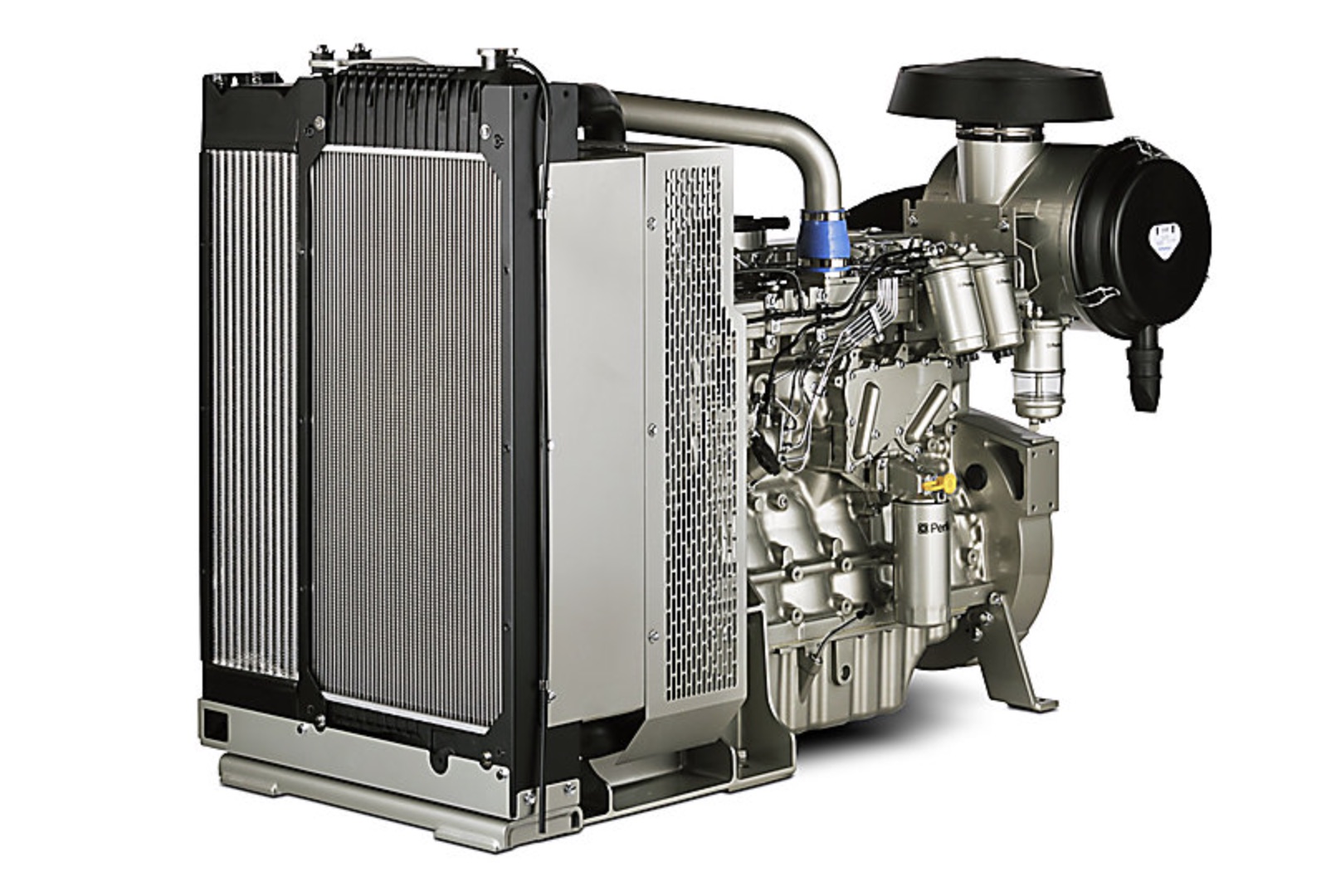

Perkins 1106D-E70TAG Diesel Genset Engine
FD-1106D-E70TAG-PNR
Perkins 1100 Series
This Perkins 1106D-E70TAG Diesel Genset Engine is a 6 Cylinder, Perkins 1100 Series, Turbocharged Aftercooled, 7 L Displacement Diesel Engine with Direct Injection that is built to fit Diesel Generator Sets. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today. It ships as a fully dressed engine including: Complete fuel system, 12V starter and alternator, water pump, flywheel, and housing.
Engine Specifications:
- Diesel Genset Engine
- Cylinders: 6
- Rated Speed: 1500/1800 RPM
- Emissions: EU Stage IIIA/U.S. EPA Tier 3
- Bore: 4.14 in / 105 mm
- Stroke: 5.32 in / 135 mm
- Displacement: 7 L
- Compression Ratio: 16.8:1
- Aspiration: Turbocharged Aftercooled
- Combustion System: Direct Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 69.41 in / 1763 mm
- Width: 31.03 in / 788 mm
- Height: 42.97 in / 1142 mm
- Dry Weight: 1737.24 lbs / 788 kg
- Gross Mechanical Output: 136-209 kWm
- Typical Electrical Output: 123-219 kVA
- Alternator Efficiency: 91-92%
- Switchable: Yes
