Perkins New Replacement Engine

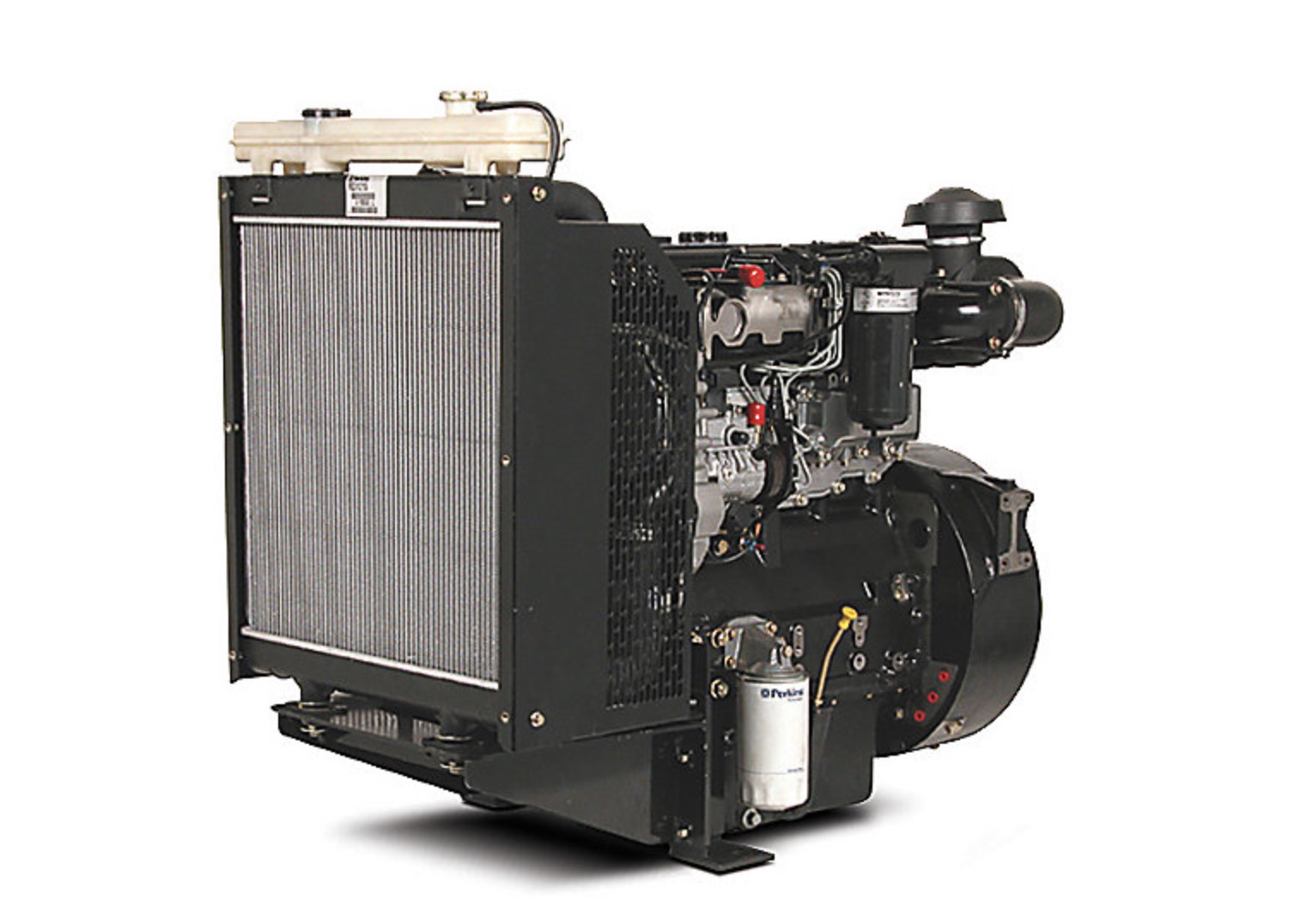

Perkins 1104D-E44TG Diesel Genset Engine
FD-1104D-E44TG-PNR
Perkins 1100 Series
This Perkins 1104D-E44TG Diesel Genset Engine is a 4 Cylinder, Perkins 1100 Series, Turbocharged, 4.4 L Displacement Diesel Engine with Direct Injection that is built to fit Diesel Generator Sets. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today. It ships as a fully dressed engine including: Complete fuel system, 12V starter and alternator, water pump, flywheel, and housing.
Engine Specifications:
- Diesel Genset Engine
- Cylinders: 4
- Rated Speed: 1800 RPM
- Emissions: EU Stage IIIA/U.S. EPA Tier 3
- Bore: 4.14 in / 105 mm
- Stroke: 5 in / 127 mm
- Displacement: 4.4 L
- Compression Ratio: 16.7:1
- Aspiration: Turbocharged
- Combustion System: Direct Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 50.4 in / 1280 mm
- Width: 28.23 in / 717 mm
- Height: 38.08 in / 967 mm
- Dry Weight: 967.829 lbs / 439 kg
- Gross Mechanical Output: 65-72 kWm
- Typical Electrical Output: 68-75 kVA (54-60 kWe)
- Alternator Efficiency: 89%
- Switchable: No
