Perkins New Replacement Engine
Perkins 1104D-44TA Industrial Diesel Engine
FD-1104D-44TA-PNR
Perkins 1100 Series
NM Builds
Can Replace (Please call with arrangement number):
Caterpillar 3054/C4.4 Turbo Aftercooled

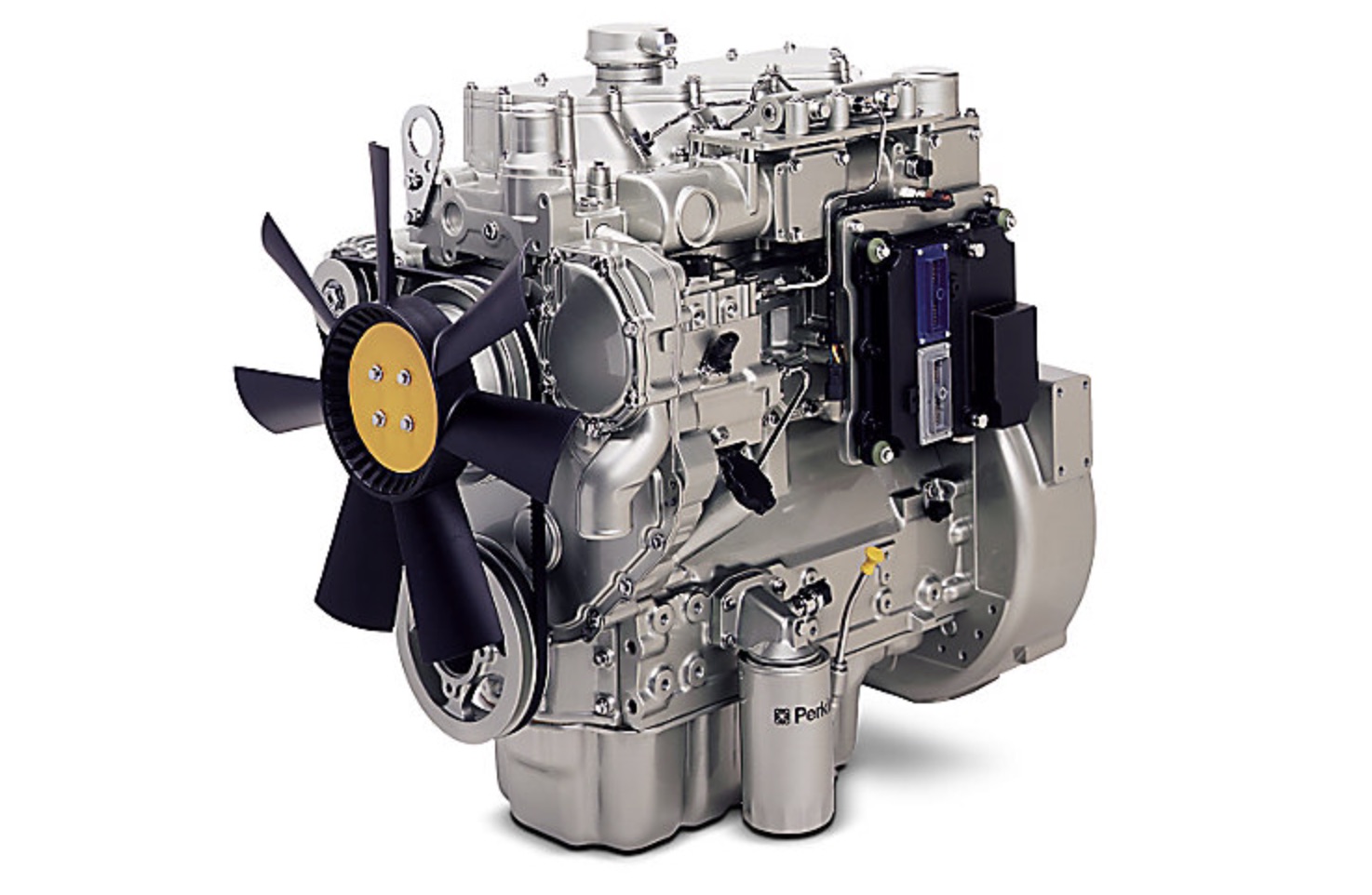

This Perkins 1104D-44TA Industrial Diesel Engine is a 4 Cylinder, Perkins 1100 Series, Turbocharged Aftercooled, 4.4 L Displacement Diesel Engine with Direct Injection that is built for Industrial Diesel Machinery. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today. It ships as a fully dressed engine including: Complete fuel system, 12V starter and alternator, water pump, flywheel, and housing.
Engine Specifications:
- Industrial Diesel Engine
- Cylinders: 4
- Maximum Power: 83 kW
- Maximum Torque: 418 Nm @ 1400 RPM
- Rated Speed: 2200-2400 RPM
- Minimum Power: 68 kW
- Emissions: UN ECE R96 Stage IIIA
- Cycle: 4 Stroke
- Bore: 4.14 in / 105 mm
- Stroke: 5 in / 127 mm
- Displacement: 4.4 L
- Compression Ratio: 18.2:1
- Aspiration: Turbocharged Aftercooled
- Combustion System: Direct Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 26.11 in / 663 mm
- Width: 23.71 in / 602 mm
- Height: 30.52 in / 775 mm
- Dry Weight: 674.615 lbs / 306 kg
