Perkins New Replacement Engine

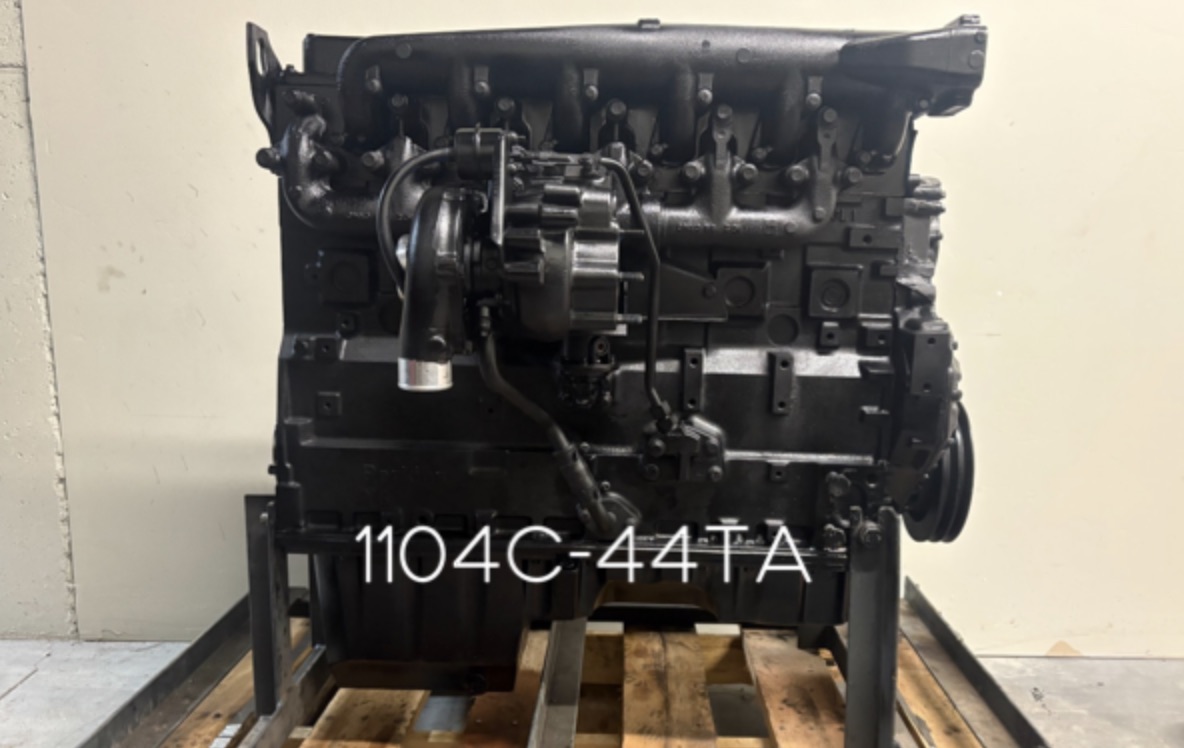

Perkins 1104C-44TA Diesel Power Unit
FD-1104C-44TA-PU-PNR
Perkins 1100 Series
RJ Builds
This Perkins 1104C-44TA Diesel Power Unit is a 4 Cylinder, Perkins 1100 Series, Turbocharged Aftercooled, 4.4 L Displacement Diesel Engine with Direct Injection that is built for Industrial Diesel Power Units. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today. It ships as a fully dressed engine including: Complete fuel system, 12V starter and alternator, water pump, flywheel, and housing.
Engine Specifications:
- Diesel Power Unit
- Cylinders: 4
- Maximum Power: 92.2 kW
- Maximum Torque: 485 Nm @ 1400 RPM
- Rated Speed: 2200 RPM
- Minimum Power: 83.8 kW
- Emissions: EU Stage II/U.S. EPA Tier 2
- Cycle: 4 Stroke
- Bore: 4.14 in / 105 mm
- Stroke: 5 in / 127 mm
- Displacement: 4.4 L
- Compression Ratio: 18.3:1
- Aspiration: Turbocharged Aftercooled
- Combustion System: Direct Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 49.57 in / 1259 mm
- Width: 28.39 in / 721 mm
- Height: 39.22 in / 996 mm
- Dry Weight: 1102.31 lbs / 500 kg
