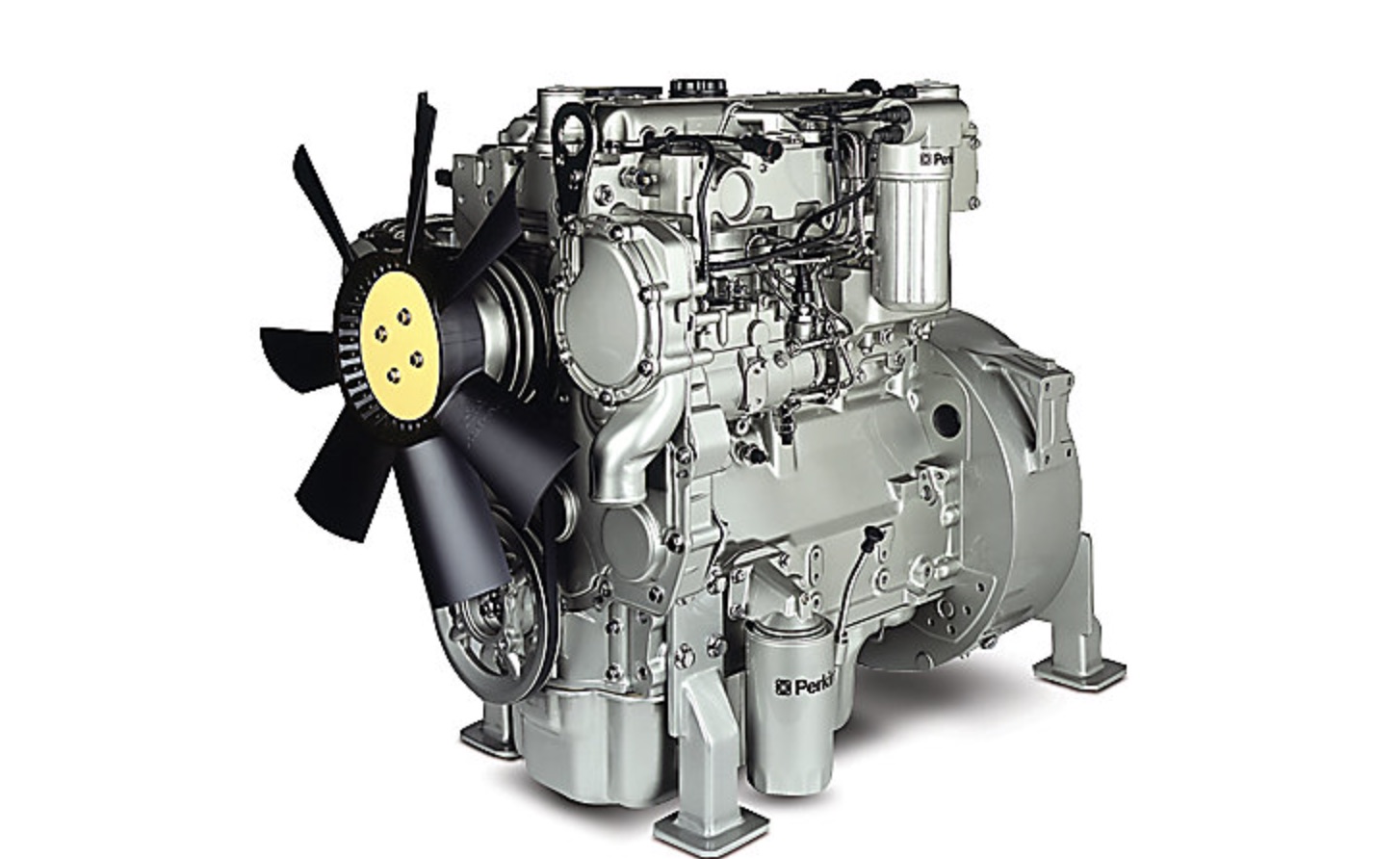

Perkins New Replacement Engine
1104C-44T
Perkins 1100 Series
RG Builds
Can Replace (Please call with arrangement number):
Caterpillar 3054 Turbo
Engine Specifications:
- Industrial Diesel Engine
- Cylinders: 4
- Maximum Power: 74.5 kW
- Maximum Torque: 415 Nm @ 1350 RPM
- Rated Speed: 2300 RPM
- Minimum Power: 62 kW
- Emissions: EU Stage II/U.S. EPA Tier 2
- Cycle: 4 Stroke
- Bore: 105 mm
- Stroke: 127 mm
- Displacement: 4.4 L
- Compression Ratio: 18.2:1
- Aspiration: Turbocharged
- Combustion System: Direct Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 663 mm
- Width: 597 mm
- Height: 810 mm
- Dry Weight: 372 kg
