Perkins New Replacement Engine

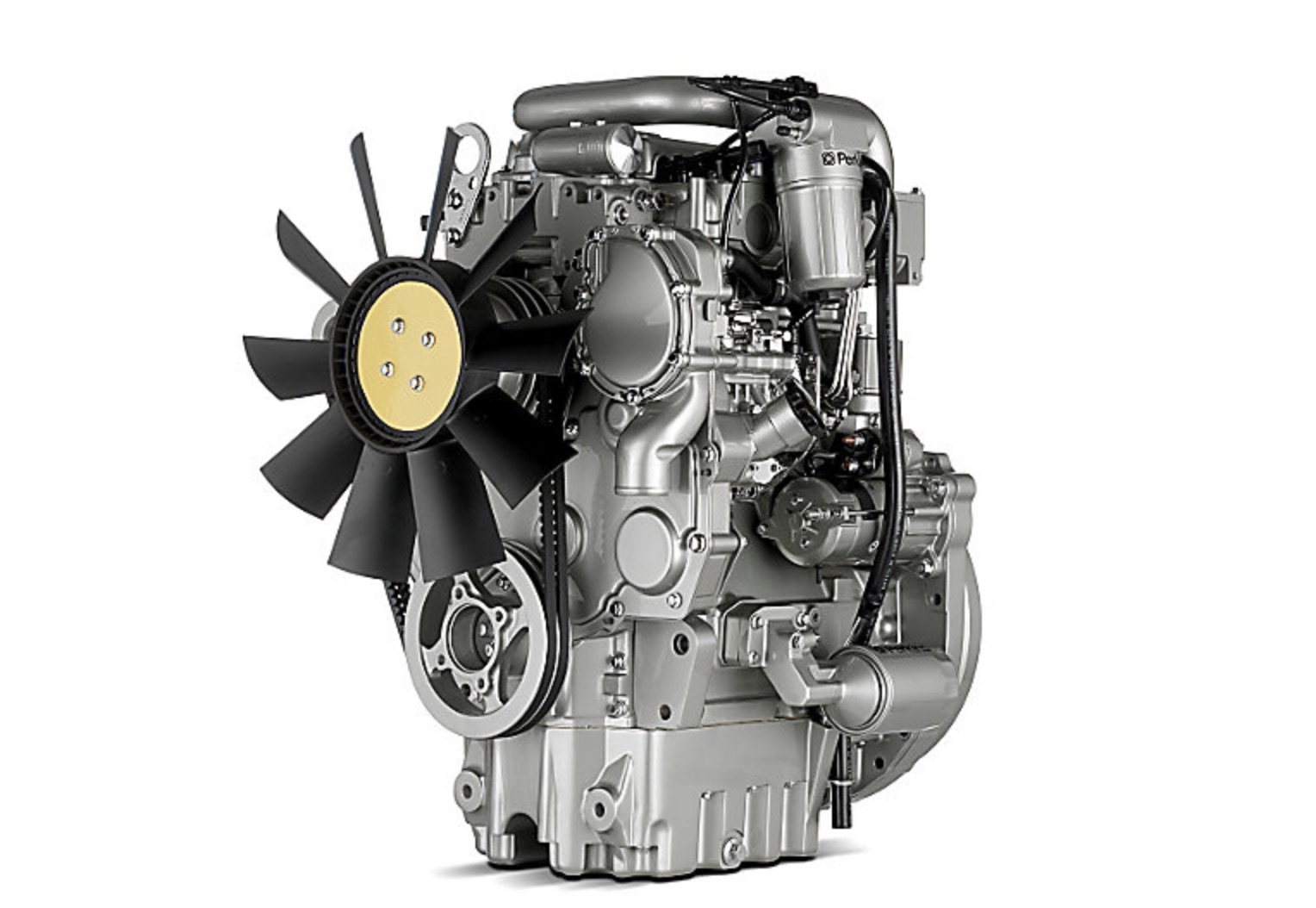

Perkins 1103D-33 Industrial Diesel Engine
FD-1103D-33-PNR
Perkins 1100 Series
DC Builds
This Perkins 1103D-33 Industrial Diesel Engine is a 3 Cylinder, Perkins 1100 Series, Natural, 3.3 L Displacement Diesel Engine with Direct Injection that is built for Industrial Diesel Machinery. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today.
Engine Specifications:
- Industrial Diesel Engine
- Cylinders: 3
- Maximum Power: 36.9 kW
- Maximum Torque: 189 Nm @ 1400 RPM
- Rated Speed: 2200 RPM
- Minimum Power: 36.9 kW
- Emissions: UN ECE R96 Stage IIIA
- Cycle: 4 Stroke
- Bore: 105 mm
- Stroke: 127 mm
- Displacement: 3.3 L
- Compression Ratio: 19.25:1
- Aspiration: Natural
- Combustion System: Direct Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 546 mm
- Width: 571 mm
- Height: 826 mm
- Dry Weight: 264 kg
