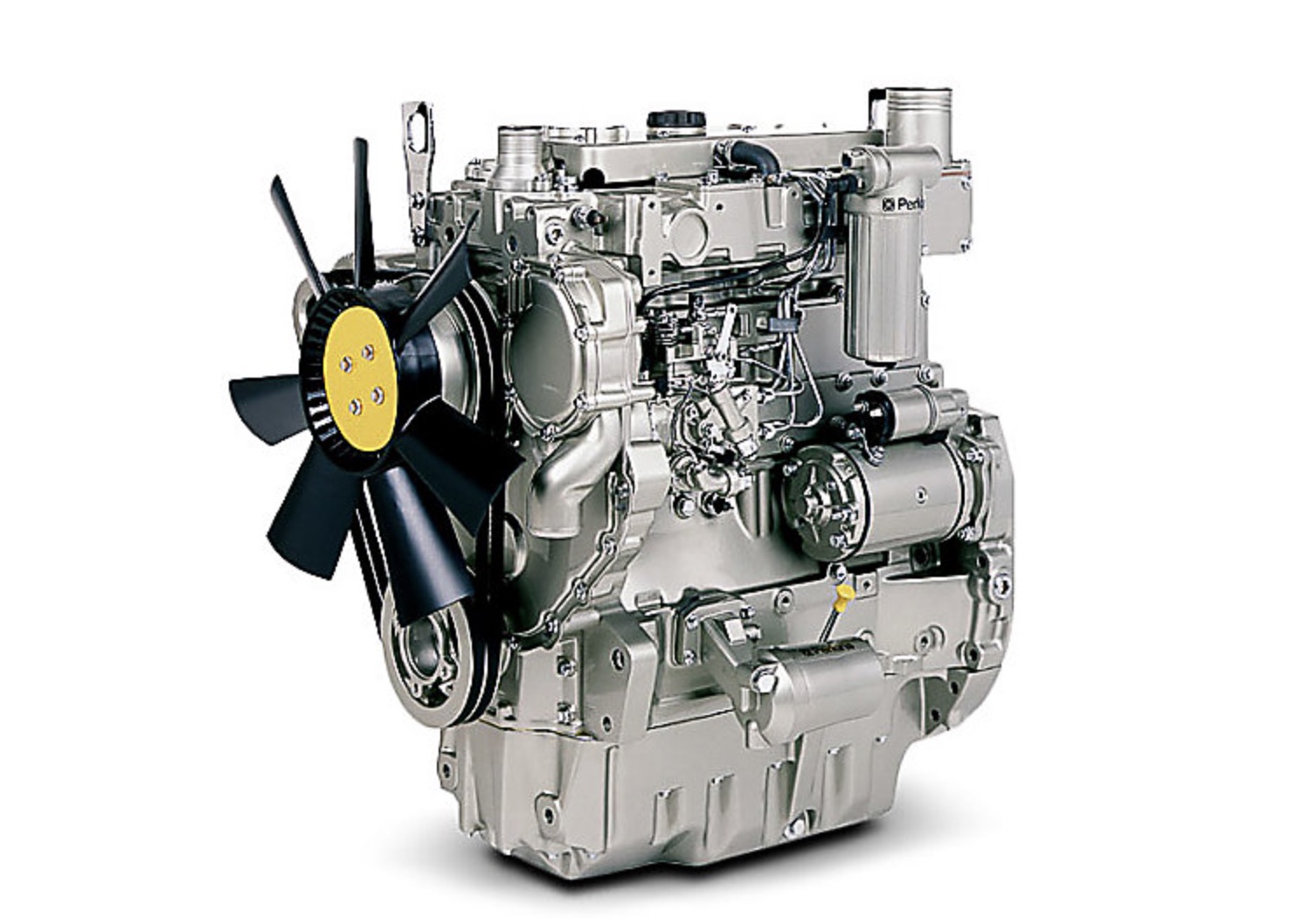

Perkins New Replacement Engine
1104C-44TA
Perkins 1100 Series
RJ Builds
Can Replace (Please call with arrangement number):
Caterpillar3054 Turbo Aftercooled
Engine Specifications:
- Industrial Diesel Engine
- Cylinders: 4
- Maximum Power: 97 kW
- Maximum Torque: 500 Nm @ 1400 RPM
- Rated Speed: 2200 RPM
- Minimum Power: 80 kW
- Emissions: EU Stage II/U.S. EPA Tier 2
- Cycle: 4 Stroke
- Bore: 105 mm
- Stroke: 127 mm
- Displacement: 4.4 L
- Compression Ratio: 18.2:1
- Aspiration: Turbocharged Aftercooled
- Combustion System: Direct Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 663 mm
- Width: 602 mm
- Height: 775 mm
- Dry Weight: 306 kg
