Perkins New Replacement Engine

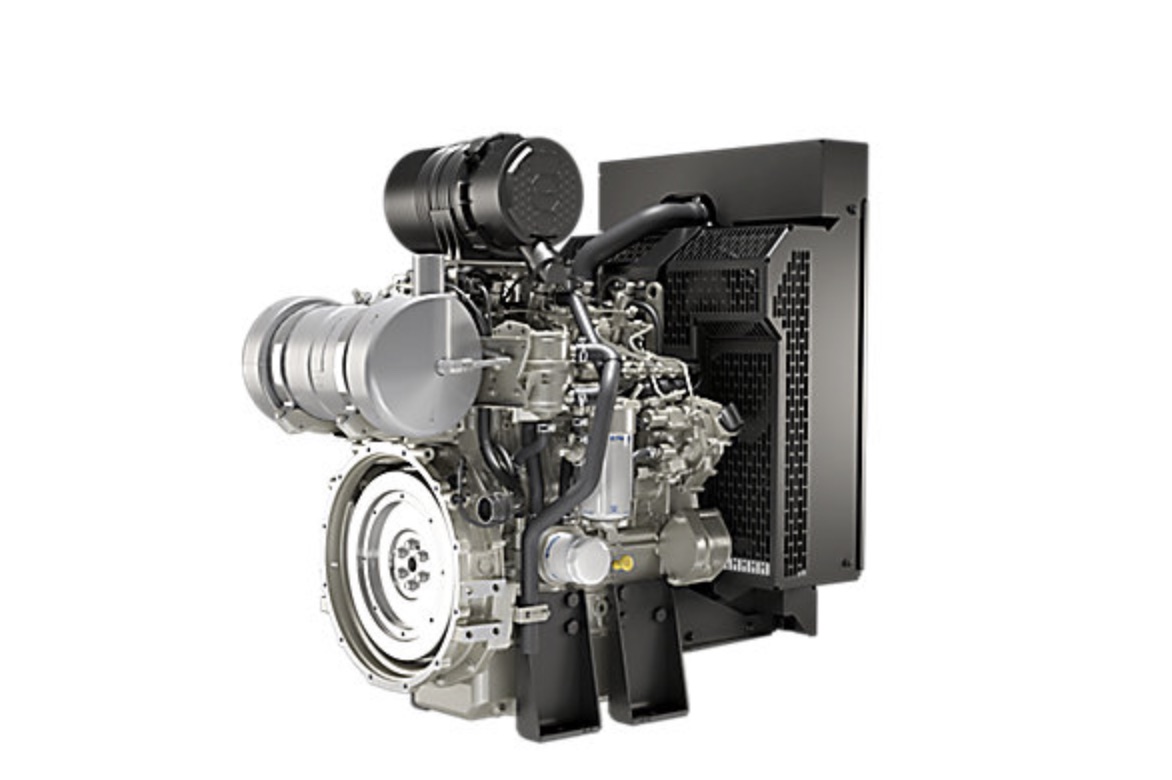

Perkins 404J-E22T Diesel Power Unit
FD-404J-E22T-PU-PNR
Perkins 400 Series
This Perkins 404J-E22T Diesel Power Unit is a 4 Cylinder, Perkins 400 Series, Turbocharged, 2.2 L Displacement Diesel Engine with Direct Injection that is built for Industrial Diesel Power Units. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today.
Engine Specifications:
- Diesel Power Unit
- Cylinders: 4
- Maximum Power: 45 kW
- Maximum Torque: 222 Nm @ 1600 RPM
- Rated Speed: 2800 RPM
- Minimum Power: 36.4 kW
- Emissions: EU Stage V, U.S. EPA Tier 4 Final
- Cycle: 4 Stroke
- Bore: 84 mm
- Stroke: 100 mm
- Displacement: 2.2 L
- Compression Ratio: 17.0:1
- Aspiration: Turbocharged
- Combustion System: Direct Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 965 mm
- Width: 622 mm
- Height: 985 mm
- Dry Weight: 281 kg
