Perkins New Replacement Engine

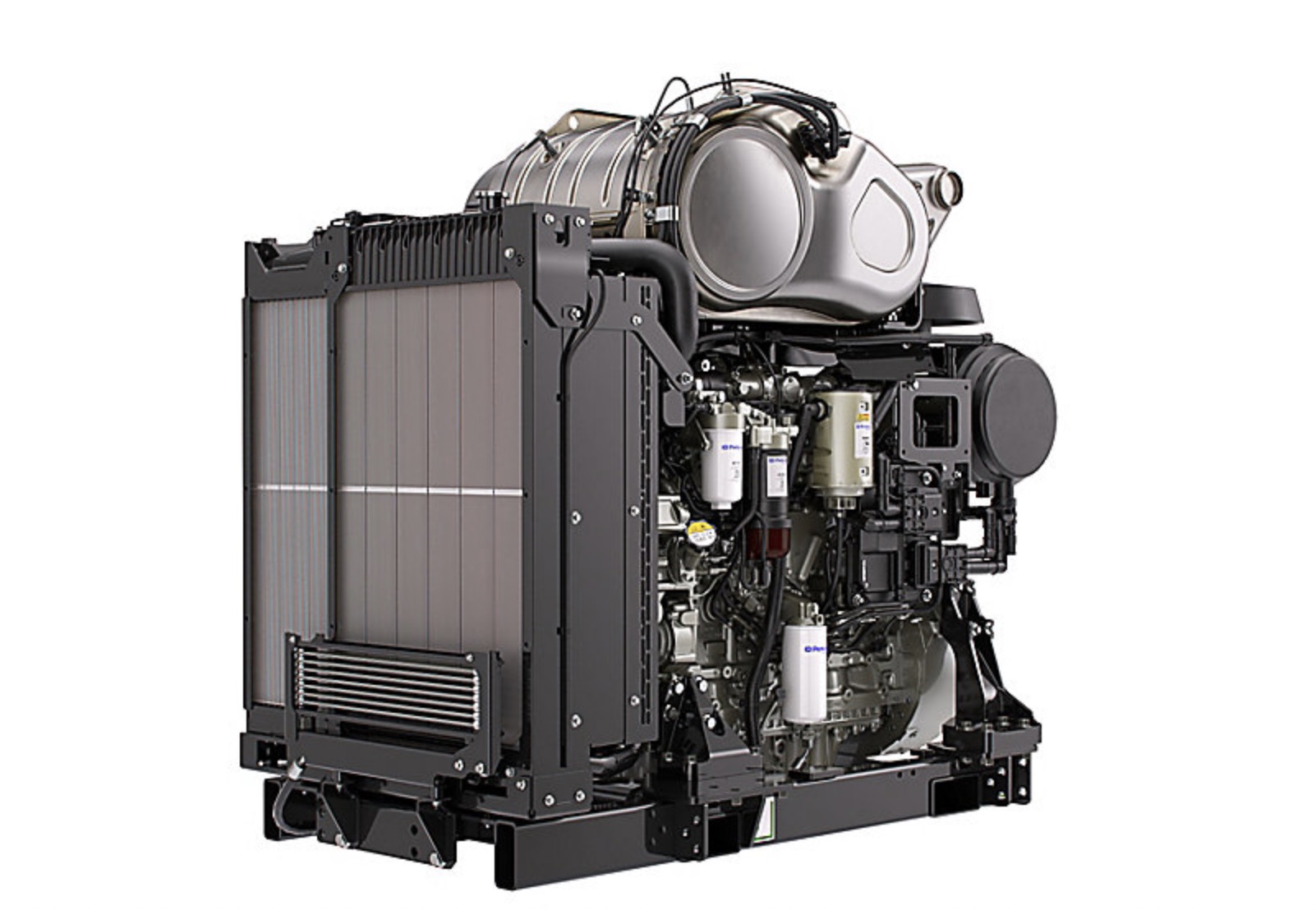

Perkins 1206J-E70TTA Diesel Power Unit
FD-1206J-E70TTA-PU-PNR
Perkins 1200 Series
This Perkins 1206J-E70TTA Diesel Power Unit is a 6 Cylinder, Perkins 1200 Series, Twin Turbo Aftercooled, 7 L Displacement Diesel Engine with Direct Injection that is built for Industrial Diesel Power Units. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today. It ships as a fully dressed engine including: Complete fuel system, 12V starter and alternator, water pump, flywheel, and housing.
Engine Specifications:
- Diesel Power Unit
- Cylinders: 6
- Maximum Power: 225 kW
- Maximum Torque: 1274 Nm @ 1400 RPM
- Rated Speed: 2200 RPM
- Minimum Power: 151 kW
- Emissions: EU Stage V, U.S. EPA Tier 4 Final
- Cycle: 4 Stroke
- Bore: 4.14 in / 105 mm
- Stroke: 5.32 in / 135 mm
- Displacement: 7 L
- Compression Ratio: 16.5:1
- Aspiration: Twin Turbo Aftercooled
- Combustion System: Direct Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 69.65 in / 1769 mm
- Width: 36.07 in / 916 mm
- Height: 57.52 in / 1461 mm
- Dry Weight: 2369.425 lbs / 1087 kg
