Perkins New Replacement Engine

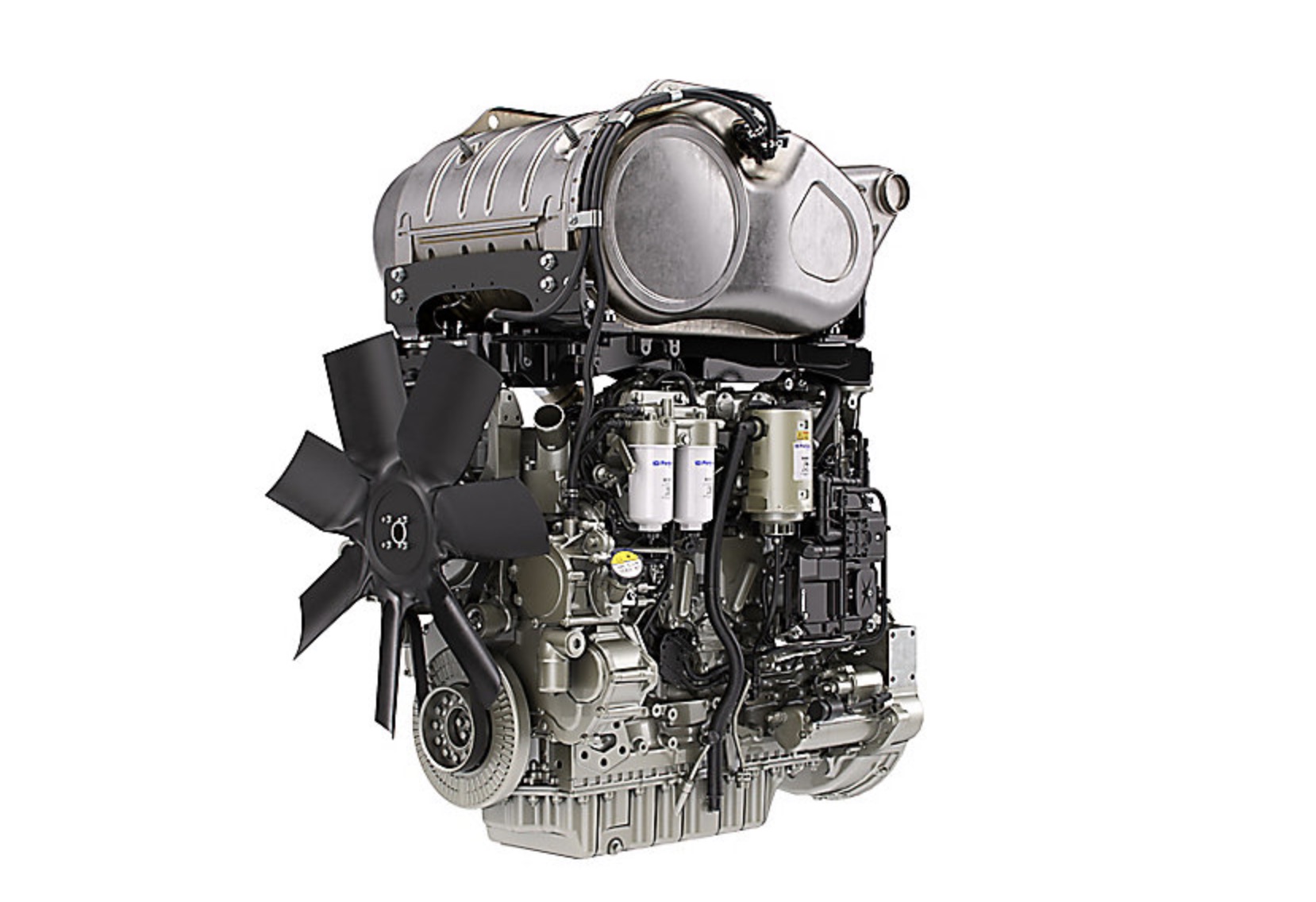

Perkins 1206J-E70TTA Industrial Diesel Engine
FD-1206J-E70TTA-PNR
Perkins 1200 Series
Can Replace (Please call with arrangement number):
Caterpillar C6.6 Twin Turbo Aftercooled
This Perkins 1206J-E70TTA Industrial Diesel Engine is a 6 Cylinder, Perkins 1200 Series, Turbocharged Aftercooled, 7 L Displacement Diesel Engine with Direct Injection that is built for Industrial Diesel Machinery. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today. It ships as a fully dressed engine including: Complete fuel system, 12V starter and alternator, water pump, flywheel, and housing.
Engine Specifications:
- Industrial Diesel Engine
- Cylinders: 6
- Maximum Power: 239 kW
- Maximum Torque: 1282 Nm @ 1400 RPM
- Rated Speed: 2200 RPM
- Minimum Power: 151 kW
- Emissions: EU Stage V, U.S EPA Tier 4 Final
- Cycle: 4 Stroke
- Bore: 4.14 in / 105 mm
- Stroke: 5.32 in / 135 mm
- Displacement: 7 L
- Compression Ratio: 16.5:1
- Aspiration: Turbocharged Aftercooled
- Combustion System: Direct Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 41.23 in / 1047 mm
- Width: 31.42 in / 798 mm
- Height: 35.91 in / 912 mm
- Dry Weight: 1657.88 lbs / 752 kg
