Perkins New Replacement Engine

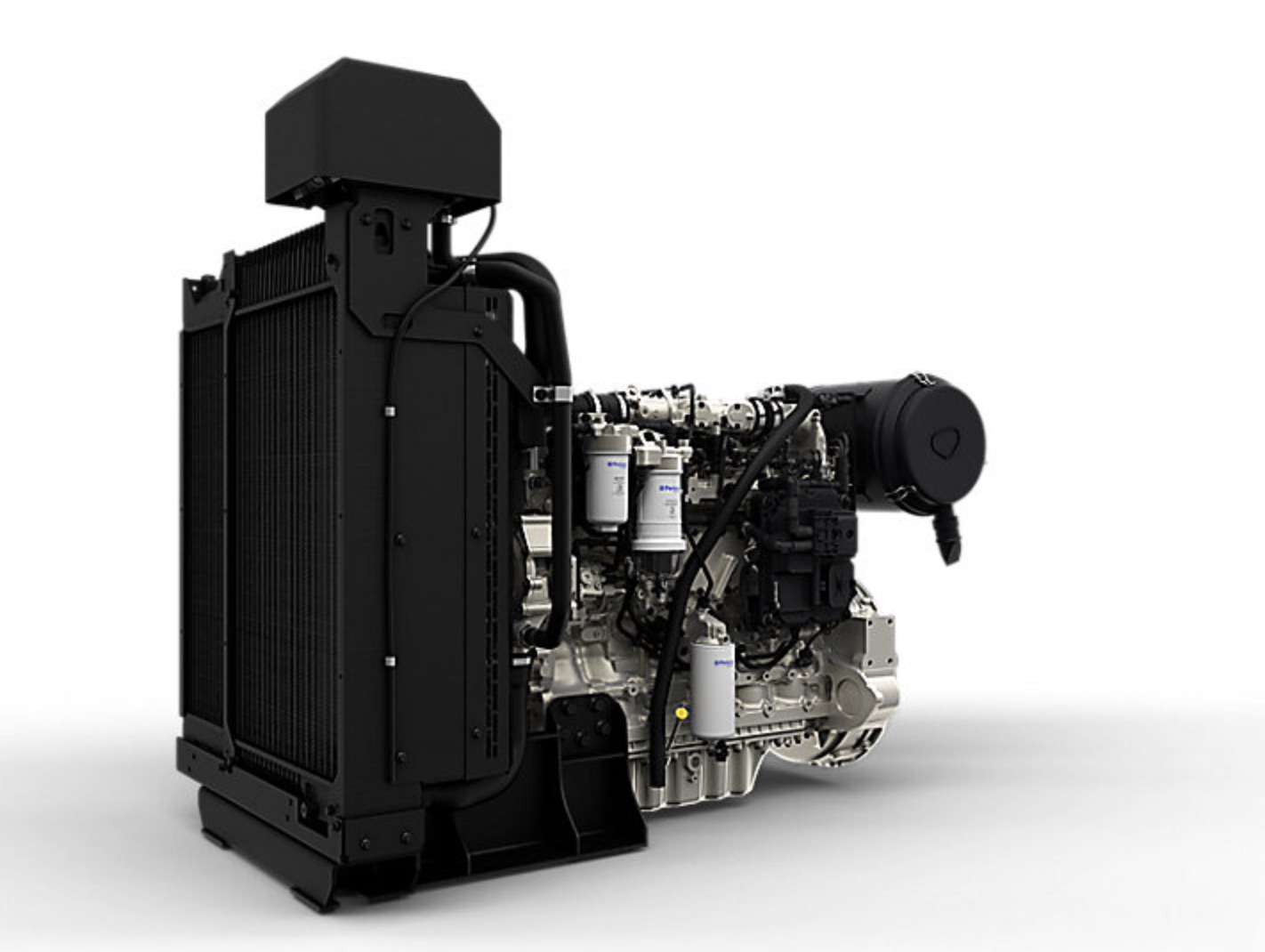

Perkins 1206A-E70TTAG Diesel Genset Engine
FD-1206A-E70TTAG-PNR
Perkins 1200 Series
This Perkins 1206A-E70TTAG Diesel Genset Engine is a 6 Cylinder, Perkins 1200 Series, Twin Turbo Aftercooled, 7.01 L Displacement Diesel Engine with Direct Injection that is built to fit Diesel Generator Sets. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today. It ships as a fully dressed engine including: Complete fuel system, 12V starter and alternator, water pump, flywheel, and housing.
Engine Specifications:
- Diesel Genset Engine
- Cylinders: 6
- Rated Speed: 1500/1800 RPM
- Emissions: Fuel Optimised
- Bore: 4.14 in / 105 mm
- Stroke: 5.32 in / 135 mm
- Displacement: 7.01 L
- Compression Ratio: 15.8:1
- Aspiration: Twin Turbo Aftercooled
- Combustion System: Direct Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 73.94 in / 1878 mm
- Width: 37.37 in / 949 mm
- Height: 56.15 in / 1426 mm
- Dry Weight: 1757.08 lbs / 797 kg
- Gross Mechanical Output: 186 -248.5 kWm
- Typical Electrical Output: 200-275 kVA (160-220 kWe)
- Alternator Efficiency: 89.5-92%
- Switchable: Yes
