Perkins New Replacement Engine

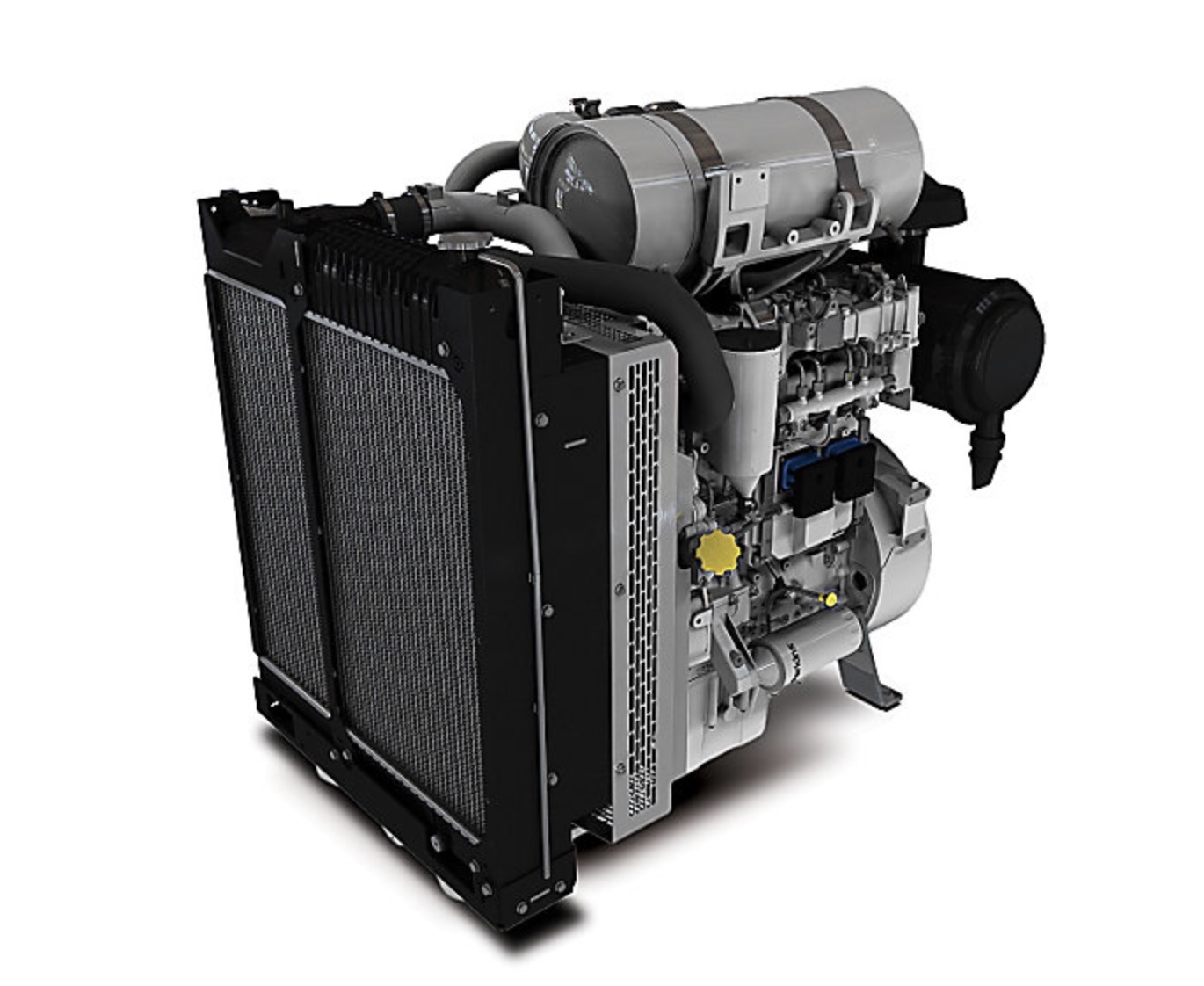

Perkins 1204E-E44TA Diesel Power Unit
FD-1204E-E44TA-PU-PNR
Perkins 1200 Series
MK, ML Builds
This Perkins 1204E-E44TA Diesel Power Unit is a 4 Cylinder, Perkins 1200 Series, Turbocharged Aftercooled, 4.4 L Displacement Diesel Engine with Direct Injection that is built for Industrial Diesel Power Units. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today. It ships as a fully dressed engine including: Complete fuel system, 12V starter and alternator, water pump, flywheel, and housing.
Engine Specifications:
- Diesel Power Unit
- Cylinders: 4
- Maximum Power: 110.1 kW
- Maximum Torque: 560 Nm @ 1400 RPM
- Rated Speed: 2200 RPM
- Minimum Power: 74.5 kW
- Emissions: EU Stage IIIA/U.S. EPA Tier 4 interim
- Cycle: 4 Stroke
- Bore: 4.14 in / 105 mm
- Stroke: 5 in / 127 mm
- Displacement: 4.4 L
- Compression Ratio: 16.5:1
- Aspiration: Turbocharged Aftercooled
- Combustion System: Direct Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 56.42 in / 1433 mm
- Width: 32.29 in / 820 mm
- Height: 44.33 in / 1126 mm
- Dry Weight: 1433 lbs / 650 kg
