Perkins New Replacement Engine
Perkins 1104C-44 Industrial Diesel Engine
FD-1104C-44-PNR
Perkins 1100 Series
RE Builds
Can Replace (Please call with arrangement number):
Caterpillar 3054
This Perkins 1104C-44 Industrial Diesel Engine is a 4 Cylinder, Perkins 1100 Series, Natural, 4.4 L Displacement Diesel Engine with Direct Injection that is built for Industrial Diesel Machinery. Please Call or fill out a Quote Form with your Build List, Serial Number, or Engine Model & Application today. It ships as a fully dressed engine including: Complete fuel system, 12V starter and alternator, water pump, flywheel, and housing.
Engine Specifications:
- Industrial Diesel Engine
- Cylinders: 4
- Maximum Power: 64 kW
- Maximum Torque: 308 Nm @ 1200 RPM
- Rated Speed: 2400 RPM
- Minimum Power: 50 kW
- Emissions: EU Stage II/U.S. EPA Tier 2
- Cycle: 4 Stroke
- Bore: 4.14 in / 105 mm
- Stroke: 5 in / 127 mm
- Displacement: 4.4 L
- Compression Ratio: 19.3:1
- Aspiration: Natural
- Combustion System: Direct Injection
- Rotation: Counter-Clockwise
- Cooling System: Liquid
- Length: 26.11 in / 663 mm
- Width: 18.51 in / 470 mm
- Height: 31.97 in / 812 mm
- Dry Weight: 787.05 lbs / 357 kg
Similar New Engines:
Remans Like This Engine:

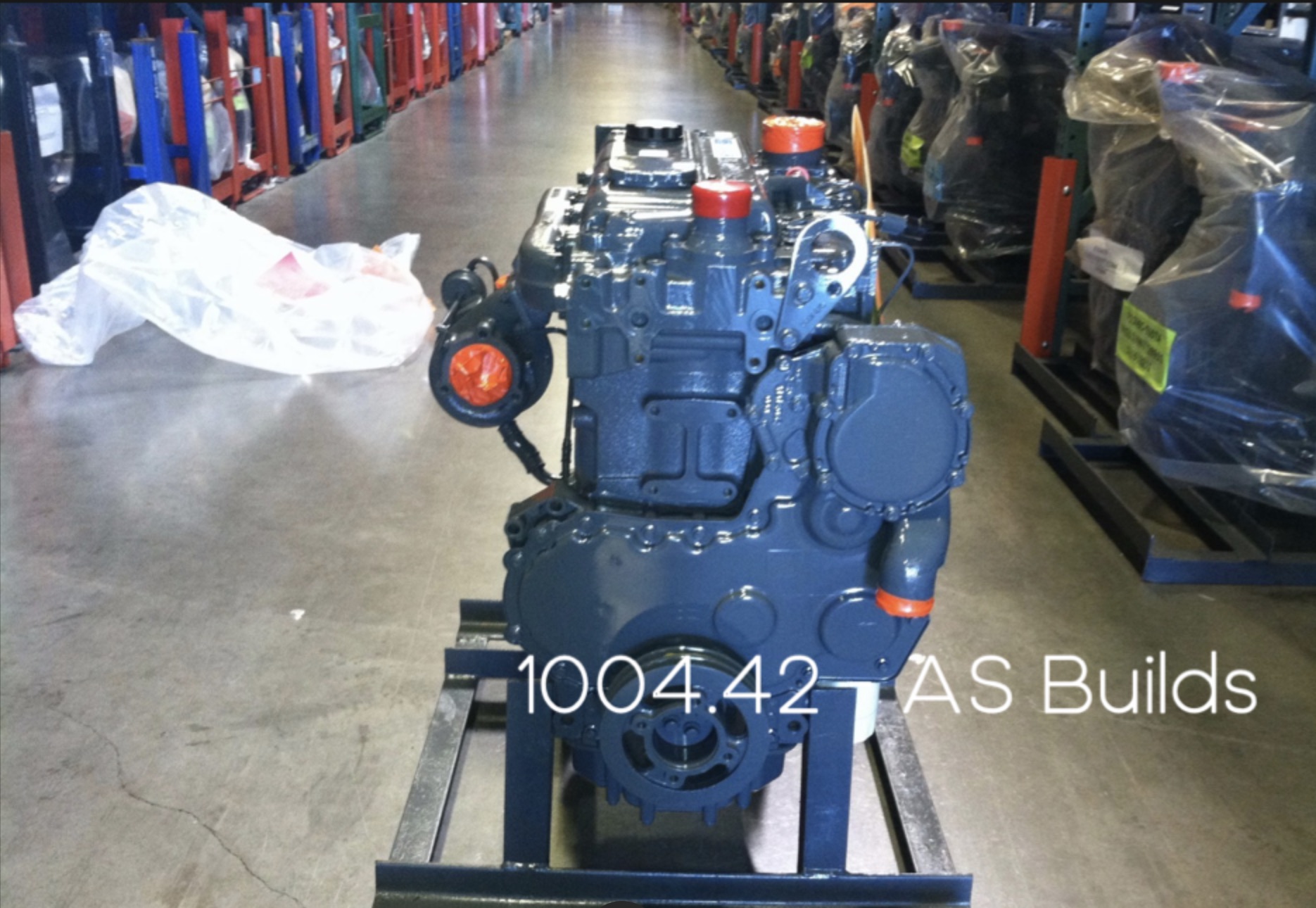

Perkins 1004.42 - AS Builds Remanufactured Diesel Engine
Perkins 1000 Series
$17,950.00
